Power Steering Hose Routing
Variant note: applicable only if the truck is equipped with power steering — see the variant note on Power Steering Rack & Pinion Assembly. This section shares printed p.304 with Power Steering Pump.
⚠️ Transmission-variant gap: the two routing variants labeled on this page are “DOHC M/T” and “DOHC M/T Late Model” — both manual-transmission callouts. No “DOHC A/T” variant appears in the OCR text, but our truck is 3A/T (automatic). Either the automatic-transmission routing is identical to one of the shown M/T variants and simply isn’t separately labeled, or an A/T-specific diagram exists elsewhere on the page/in the manual and wasn’t captured by this scan. (verify printed p.304) before assuming either M/T routing applies as-is to a 3A/T truck.

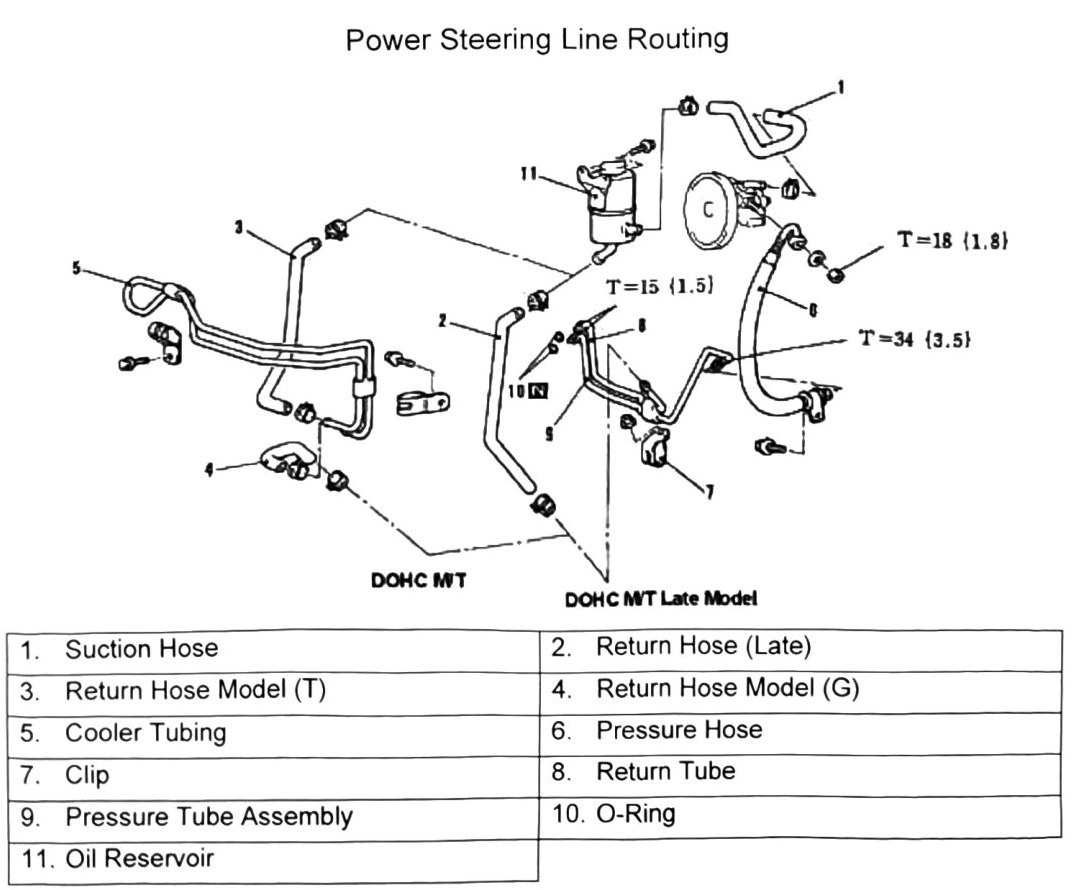

Components (as printed, split by routing variant)
DOHC M/T (base)
| # | Component |
|---|---|
| 1 | Suction Hose |
| 3 | Return Hose Model (T) |
| 5 | Cooler Tubing |
| 7 | Clip |
| 9 | Pressure Tube Assembly |
| 11 | Oil Reservoir |
DOHC M/T — Late Model
| # | Component |
|---|---|
| 2 | Return Hose (Late) |
| 4 | Return Hose Model (G) |
| 6 | Pressure Hose |
| 8 | Return Tube |
| 10 | O-Ring |
OCR note: the odd/even split above (base vs. late-model column) is a reconstruction based on the interleaved numbering pattern in the scan, not an explicit in-page label pairing every item to its column. (verify printed p.304)
Torque specifications
| Fastener | Torque |
|---|---|
| Fastener (unlabeled) | 18 N·m (1.8 kgf·m; 159 in-lb) |
| Fastener (unlabeled) | 15 N·m (1.5 kgf·m; 133 in-lb) |
| Fastener (unlabeled) | 34 N·m (3.5 kgf·m; 25 ft-lb) |
OCR note: fastener assignment for the torque values above is not legible from the scan. (verify printed p.304)
