Power Steering Pump
Variant note: applicable only if the truck is equipped with power steering — see the variant note on Power Steering Rack & Pinion Assembly. Not confirmed whether our truck (VR-II, 4A30 DOHC turbo, 3A/T, 4WD) has power steering.
This section shares printed p.304 with Power Steering Hose Routing.

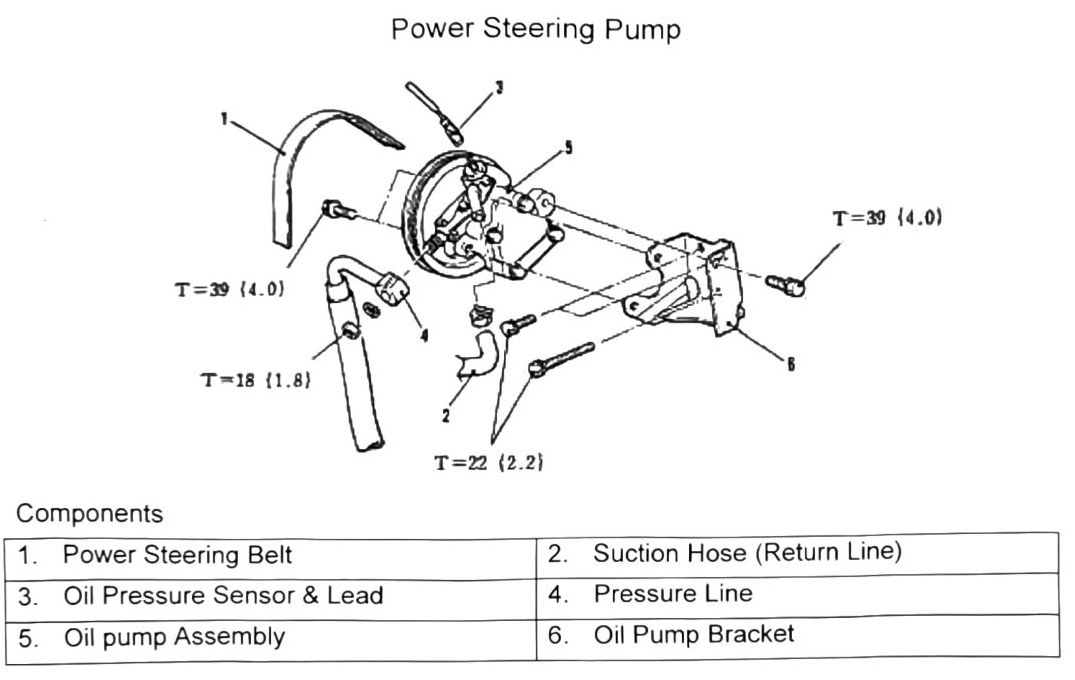

Components
| # | Component |
|---|---|
| 1 | Power Steering Belt |
| 2 | Suction Hose (Return Line) |
| 3 | Oil Pressure Sensor & Lead |
| 4 | Pressure Line |
| 5 | Oil Pump Assembly |
| 6 | Oil Pump Bracket |
Torque specifications
| Fastener | Torque |
|---|---|
| Fastener (unlabeled, ×2 locations) | 39 N·m (4.0 kgf·m; 29 ft-lb) |
| Fastener (unlabeled) | 18 N·m (1.8 kgf·m; 159 in-lb) |
| Fastener (unlabeled) | 22 N·m (2.2 kgf·m; 16 ft-lb) |
OCR note: fastener assignment for the torque values above (pump mounting bolts, bracket, sensor) is not legible from the scan. (verify printed p.304)
