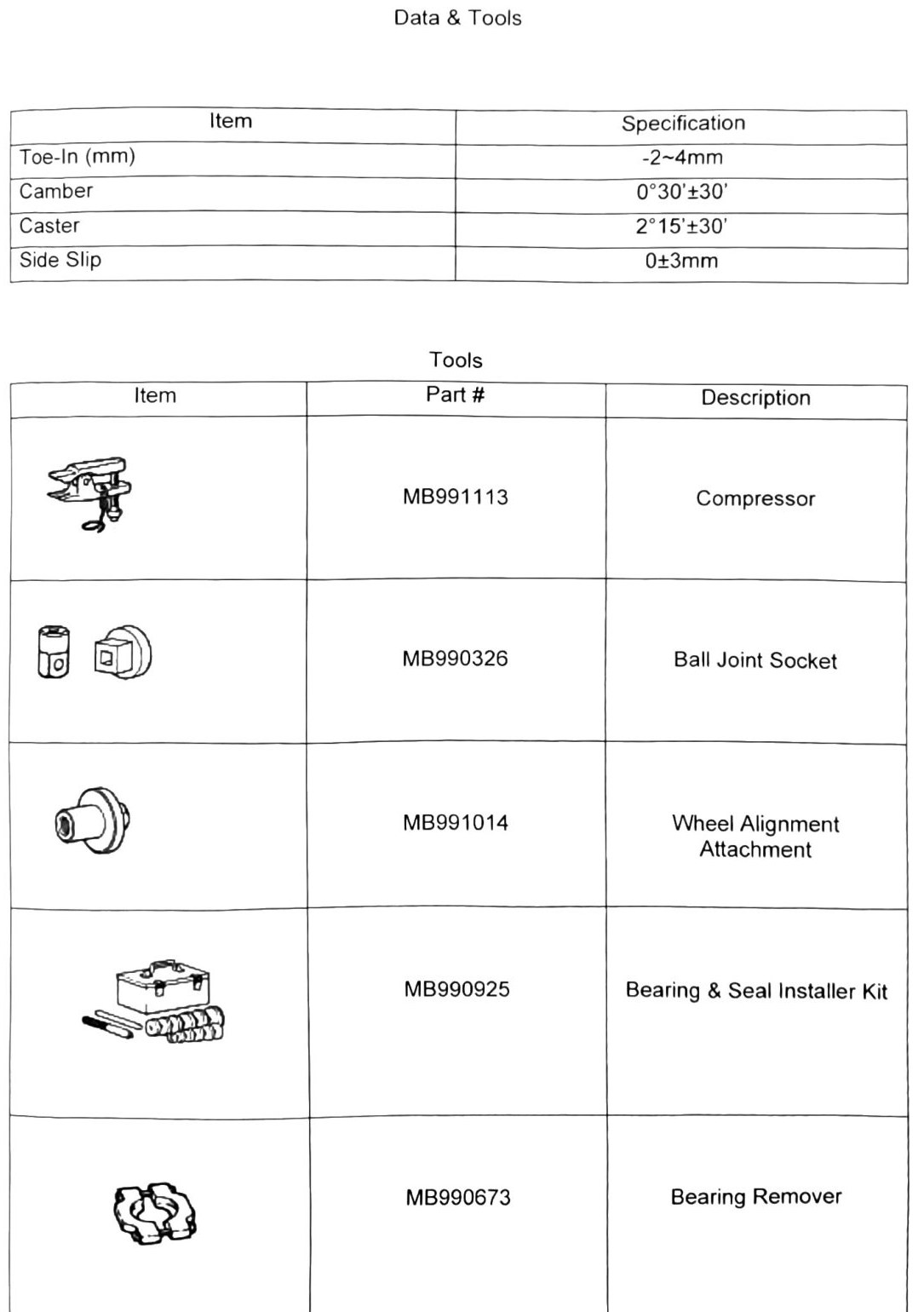

Front-end alignment specifications and steering-related special tools. The alignment spec values below match the identical table in Chapter 10 Data & Tools — cross-confirmed across two independent scans of the same figures.
Alignment specifications
| Item | Specification |
|---|---|
| Toe-In | -2 ~ 4 mm (-0.079 ~ 0.157 in) |
| Camber | 0°30′ ± 30′ |
| Caster | 2°15′ ± 30′ |
| Side Slip | 0 ± 3 mm (0 ± 0.118 in) |
Special tools — alignment / steering
| Tool | Part # |
|---|---|
| Compressor | MB991113 |
| Ball Joint Socket | MB990326 |
| Wheel Alignment Attachment | MB991014 |
| Bearing & Seal Installer Kit | MB990925 |
| Bearing Remover | MB990673 |
OCR note: the Tool/Part # columns on this page were scanned as separate stacked lists rather than aligned rows. The first three tools and part numbers (Compressor/MB991113, Ball Joint Socket/MB990326, Wheel Alignment Attachment/MB991014) also appear in the Chapter 10 tool list, which corroborates this pairing order. (verify printed p.287) before treating the pairing as certain.

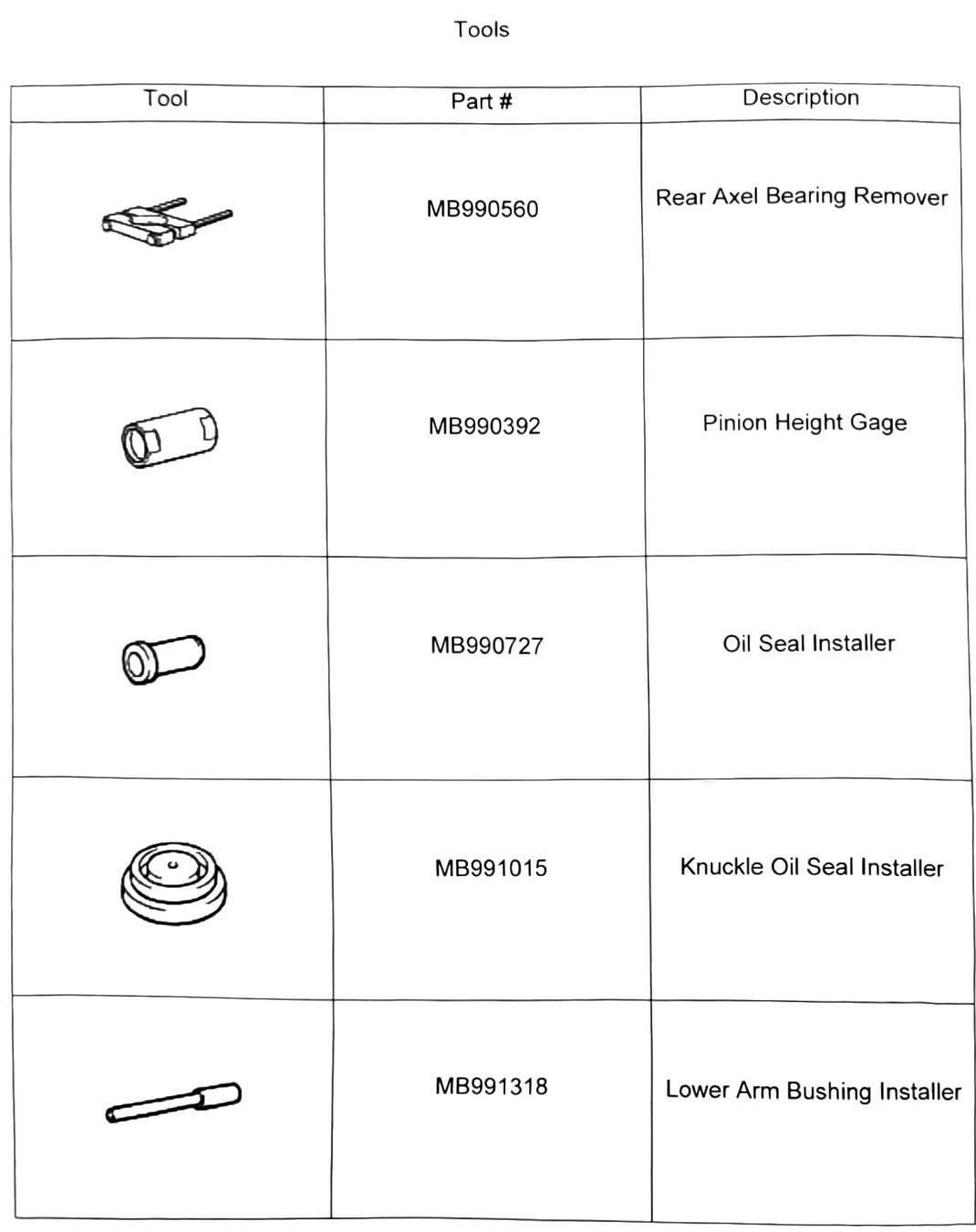

Special tools — bearing service (continued, printed p.288)
| Tool | Part # |
|---|---|
| Rear Axle Bearing Remover | MB990560 |
| Pinion Height Gage | MB990392 |
| Oil Seal Installer | MB990727 |
| Knuckle Oil Seal Installer | MB991015 |
| Lower Arm Bushing Installer | MB991318 |
OCR note: these five tool names (rear axle bearing remover, pinion height gage, knuckle oil seal installer, lower arm bushing installer) read like front-axle/differential tooling rather than steering-rack tooling — plausible here only because knuckle/hub disassembly overlaps steering-rack and tie-rod-end work. The tool-name-to-part-number pairing is a reconstruction from a scrambled OCR column layout, not a direct in-page read. (verify printed p.288) before ordering tooling off this table alone.
