Caliper Overhaul

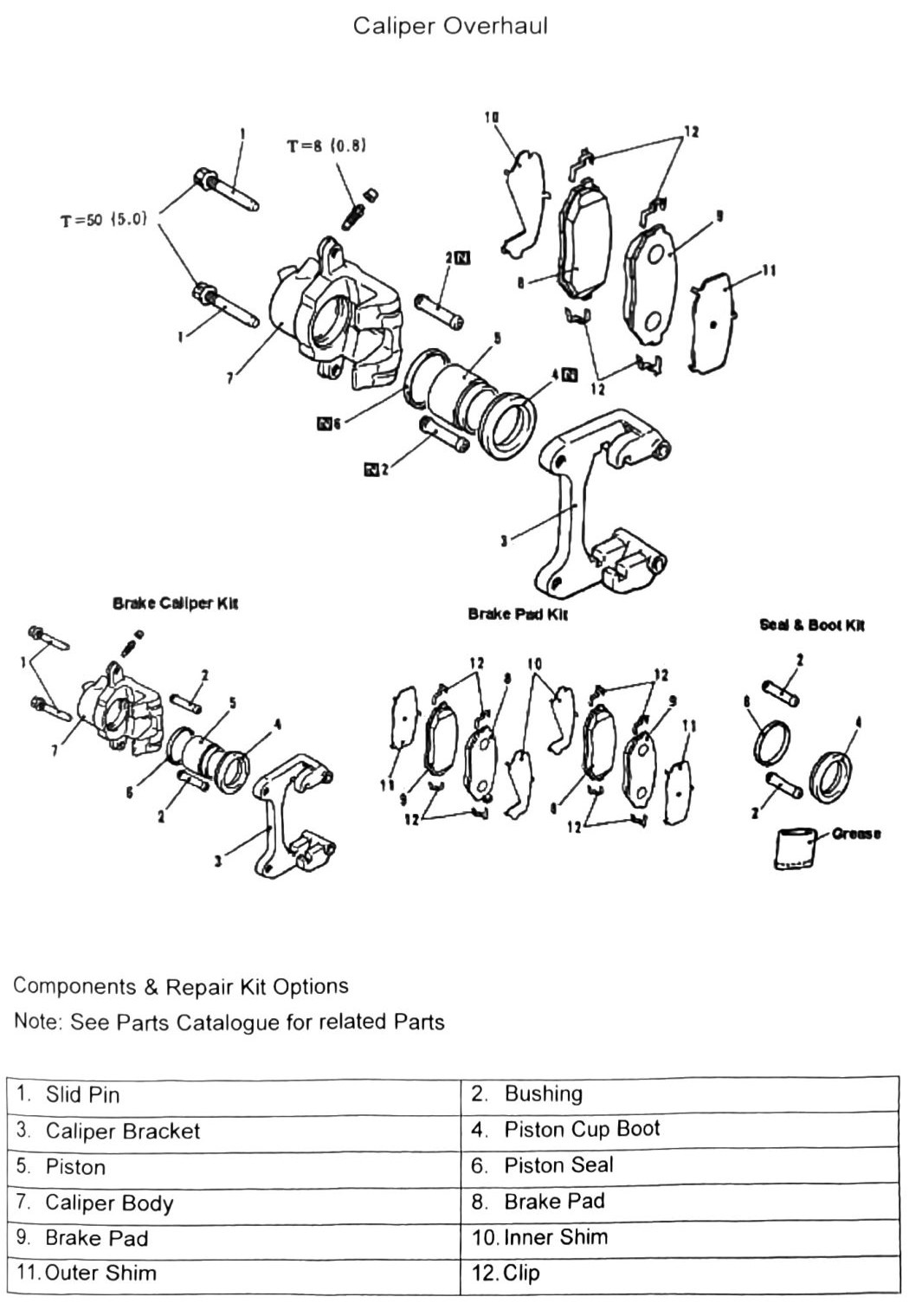

Components & repair kit options
| Item | Description |
|---|---|
| 1 | Slide Pin |
| 2 | Bushing |
| 3 | Caliper Bracket |
| 4 | Piston Cup Boot |
| 5 | Piston |
| 6 | Piston Seal |
| 7 | Caliper Body |
| 8 | Brake Pad |
| 9 | Brake Pad |
| 10 | Inner Shim |
| 11 | Outer Shim |
| 12 | Clip |
Available as kits: Brake Caliper Kit, Brake Pad Kit, Seal & Boot Kit, and grease (see Parts Catalogue for related parts).
Torque specifications
| Torque callout | N·m (kgf·m) | ft-lb/in-lb |
|---|---|---|
| T=8 | (0.8) | 71 in-lb |
| T=50 | (5.0) | 37 ft-lb |
(verify printed p.275) — not confidently matched to specific fasteners; likely candidates are the slide pin bolts (smaller value) and the caliper bracket-to-knuckle mounting bolts (larger value), but this is unconfirmed.

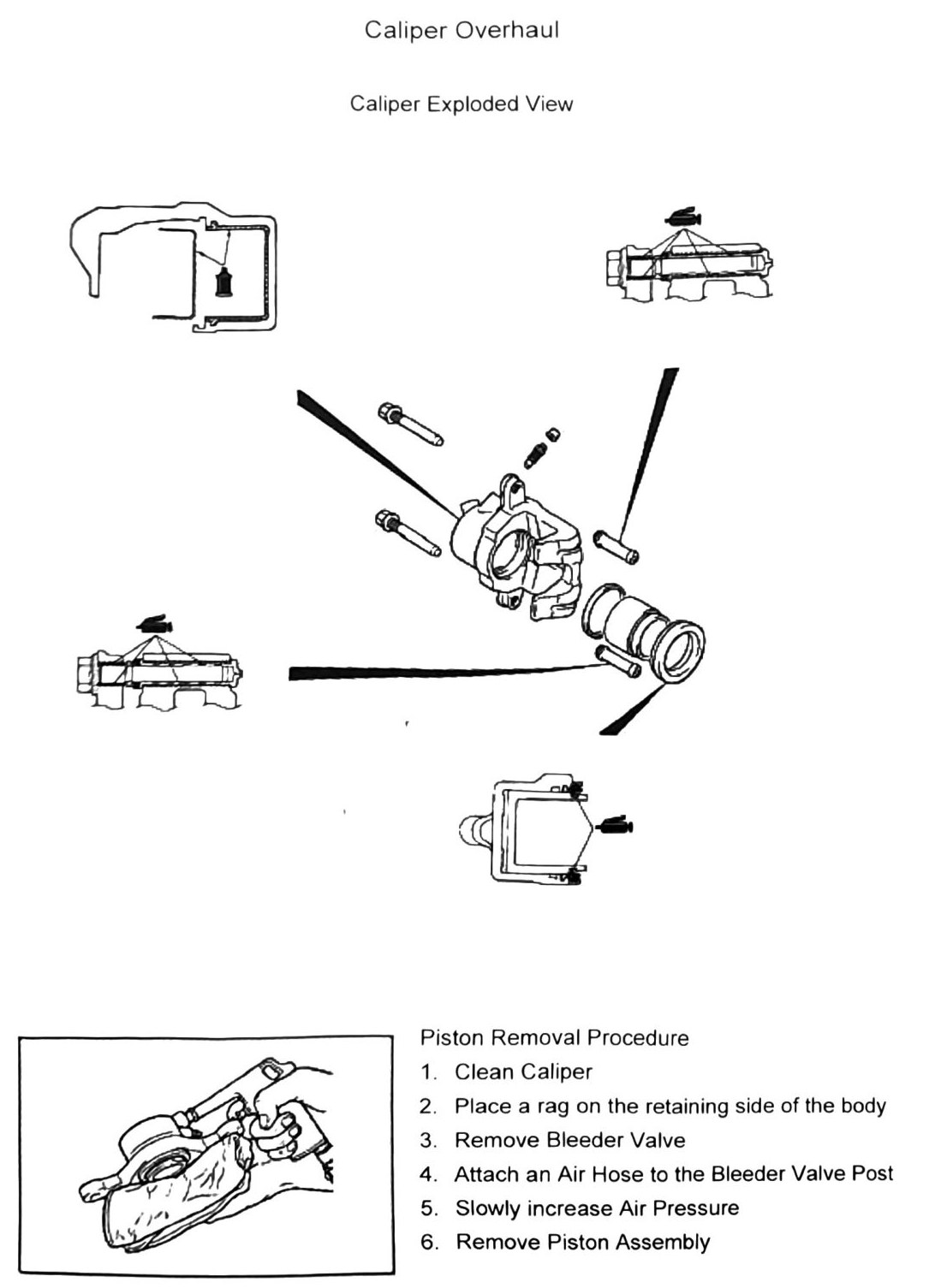

Piston removal procedure
- Clean caliper.
- Place a rag on the retaining side of the body.
- Remove bleeder valve.
- Attach an air hose to the bleeder valve port.
- Slowly increase air pressure.
- Remove piston assembly.
Caution: this is a compressed-air piston removal method — keep fingers clear of the piston travel path.

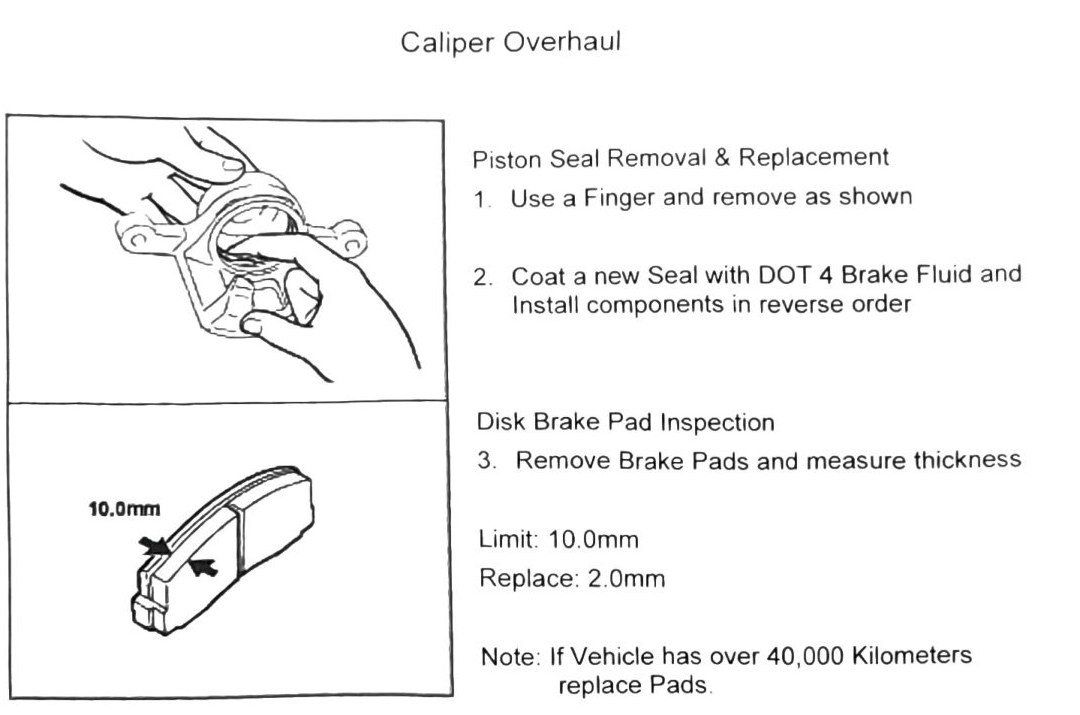

Piston seal removal & replacement
- Use a finger and remove as shown.
- Coat a new seal with DOT 4 brake fluid and install components in reverse order.
Disk brake pad inspection
- Remove brake pads and measure thickness.
- Limit: 10.0mm (0.394 in)
- Replace: 2.0mm (0.079 in)
Note: if the vehicle has over 40,000 kilometers (24,855 mi), replace pads.
