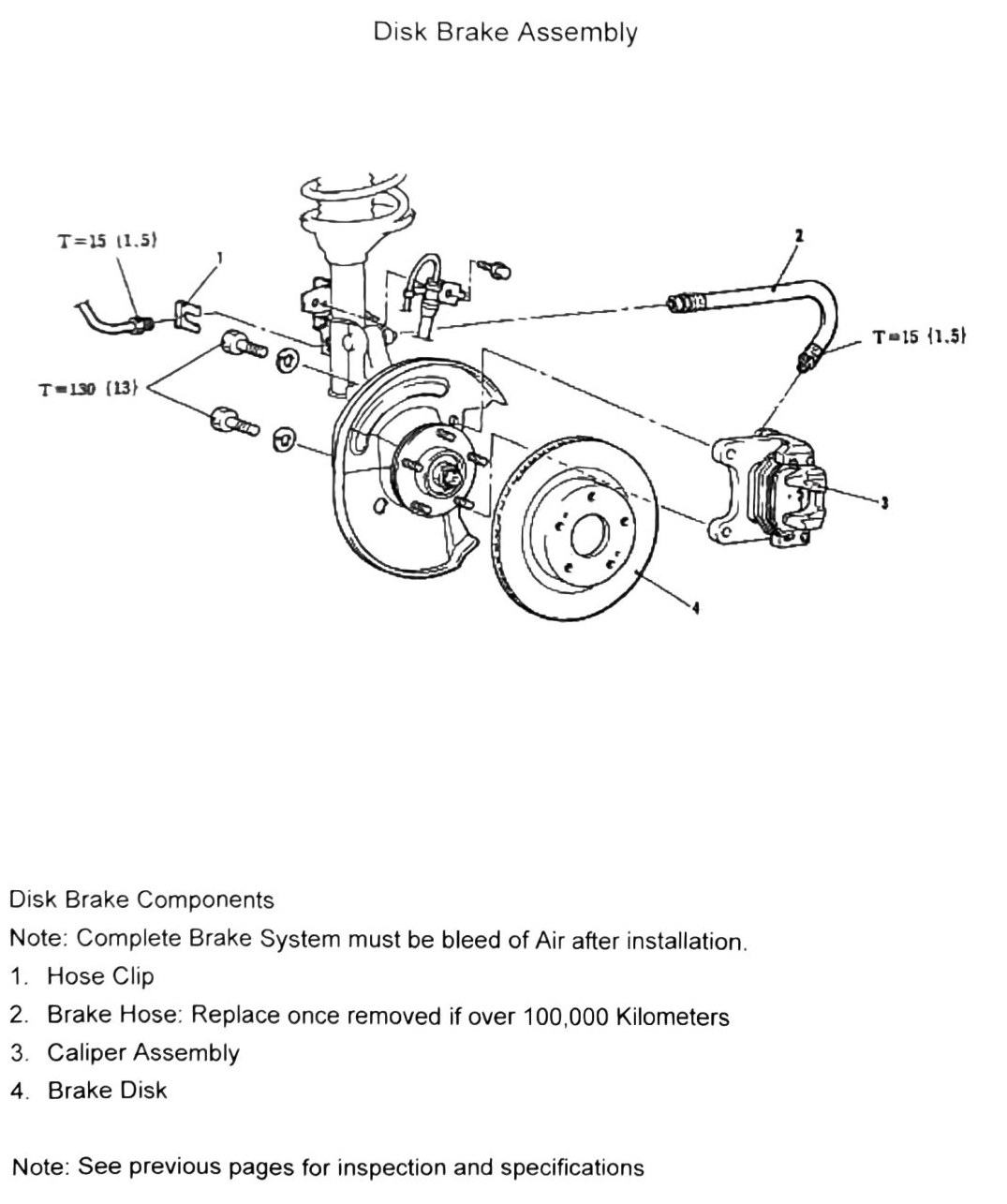

Disk Brake Assembly
Components
| Item | Description |
|---|---|
| 1 | Hose Clip |
| 2 | Brake Hose — replace once removed if over 100,000km (62,137 mi) |
| 3 | Caliper Assembly |
| 4 | Brake Disk |
Note: the complete brake system must be bled of air after installation.
See Disk Rotor & Rear Drum Inspection for disk inspection and wear specifications, and Caliper Overhaul for caliper service.
Torque specifications
| Torque callout | N·m (kgf·m) | ft-lb/in-lb |
|---|---|---|
| T=15 | (1.5) | 133 in-lb |
| T=15 | (1.5) | 133 in-lb |
| T=130 | (13) | 96 ft-lb |
(verify printed p.274) — the three torque callouts could not be confidently matched to specific components (hose banjo bolt vs. caliper mounting bolts vs. disk retaining screw). The T=130 (13) value is notably higher than the others and most likely applies to the caliper bracket-to-knuckle mounting bolts, but this is unconfirmed against the source figure.
