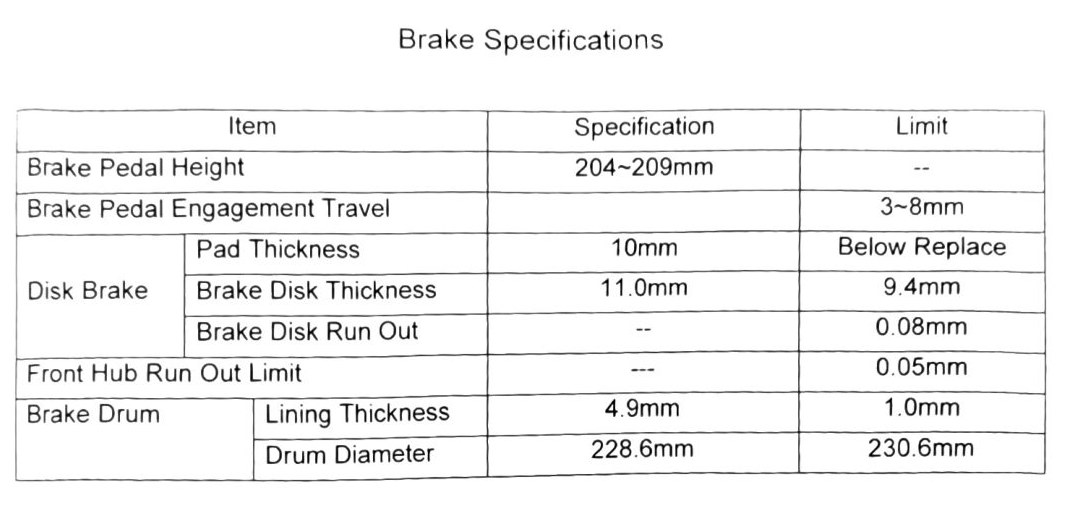

Brake Specifications
OCR note: the source table’s row/column layout (Item / Specification / Limit) did not survive the scan intact — labels and numbers were interleaved out of order. The values below have been reassembled by cross-referencing the matching detail procedures later in this chapter (Disk Rotor & Rear Drum Inspection, Caliper Overhaul), where the same figures appear individually and consistently. Confidence is high because every value below is independently confirmed on its own procedure page — but (verify printed p.265) for the original table’s exact layout/column headings before treating this as a facsimile of the printed page.
| Item | Specification | Limit |
|---|---|---|
| Brake Pedal Height | — | 204-209mm (8.03-8.23 in) |
| Brake Pedal Engagement Travel | — | 3-8mm (0.12-0.31 in) |
| Brake Pad Thickness (front disk) | 10.0mm (0.394 in) | Replace at 2.0mm (0.079 in) |
| Brake Disk Thickness | 11.0mm (0.433 in) | Replace below 9.4mm (0.370 in) |
| Brake Disk Run Out | — | 0.08mm (0.003 in) |
| Front Hub Run Out | — | 0.05mm (0.002 in) |
| Brake Lining Thickness (rear drum shoe) | 4.9mm (0.193 in) | Replace at 1.0mm (0.039 in) |
| Brake Drum Diameter | 230.6mm (9.08 in) | Replace above 228.6mm (9.00 in) |
Notes
- Disk and drum wear limits above are cross-checked against the procedure pages that use a micrometer/dial gauge to take the actual measurement — see Disk Rotor & Rear Drum Inspection.
- The front disk pad thickness limit is also restated with a 40,000km inspection-interval note in Caliper Overhaul.
