Manual Transmission & Transfer Case Oil: V5M11-V5M41 Series
Manual transmission oil (V5M11 / V5M41) does not apply to our 3A/T automatic truck — see A/T Transmission Fluids for the fluid/capacity spec that actually governs our vehicle. The Transfer Case oil portion below applies directly to our truck — it’s a shared 4WD component regardless of which transmission is bolted to it.
Capacities
| Component | Series | Capacity | Oil Type |
|---|---|---|---|
| Transmission | V5M11 | 0.8 Liters (0.85 US qt) | Multi-Grade 75W/85W |
| Transmission | V5M41 | 1.3 Liters (1.37 US qt) | Multi-Grade 75W/85W |
| Transfer Case | — | 0.9 Liters (0.95 US qt) | Multi-Grade 75W/85W |
(verify printed p.169) — the source table’s rows/columns were scrambled by OCR. The pairing of capacity to transmission series shown above (V5M11 = 0.8L (0.85 US qt), V5M41 = 1.3L (1.37 US qt)) is a best-effort reconstruction based on source ordering and is not confirmed — check the printed table before relying on it. The Transfer Case capacity of 0.9 Liters (0.95 US qt) is higher-confidence: it’s independently corroborated by the “Transfer Oil (4WD)” row in A/T Transmission Fluids, which lists the same 0.9 Liters figure.
Torque
| Torque callout | N·m (kgf·m) |
|---|---|
| T=4.5 (40 in-lb) | (not stated in source) |
| T=3.3 (29 in-lb) | (not stated in source) |
(verify printed p.170) — a third callout, transcribed by OCR as “N72”, appears near the Filler Plug diagram. It is not legible as a standard torque or part-number format and is not included above; do not guess at its meaning.

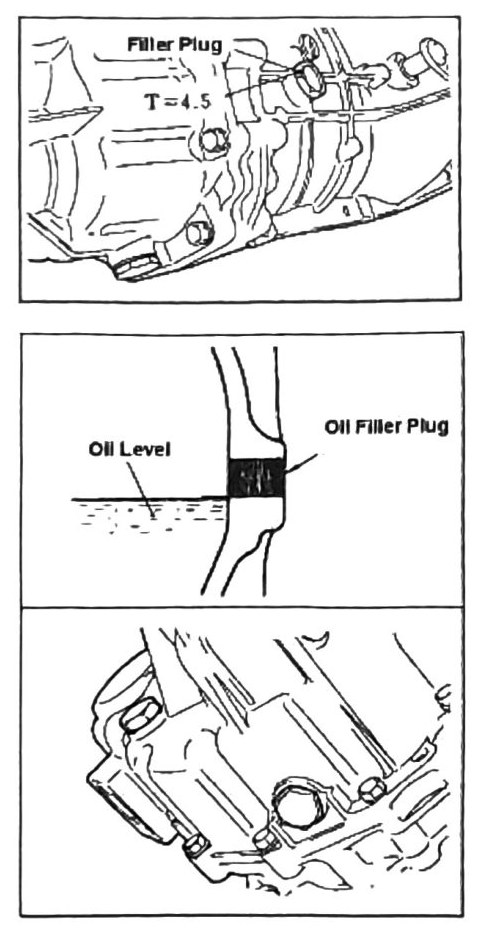

Transmission oil level (inspection)
Vehicle must be located on a flat area.
- Remove Filler Plug.
- Oil must be internally at the level of the Filler Plug Hole. Add oil if the case is below the limit.
- Replace Filler Plug.

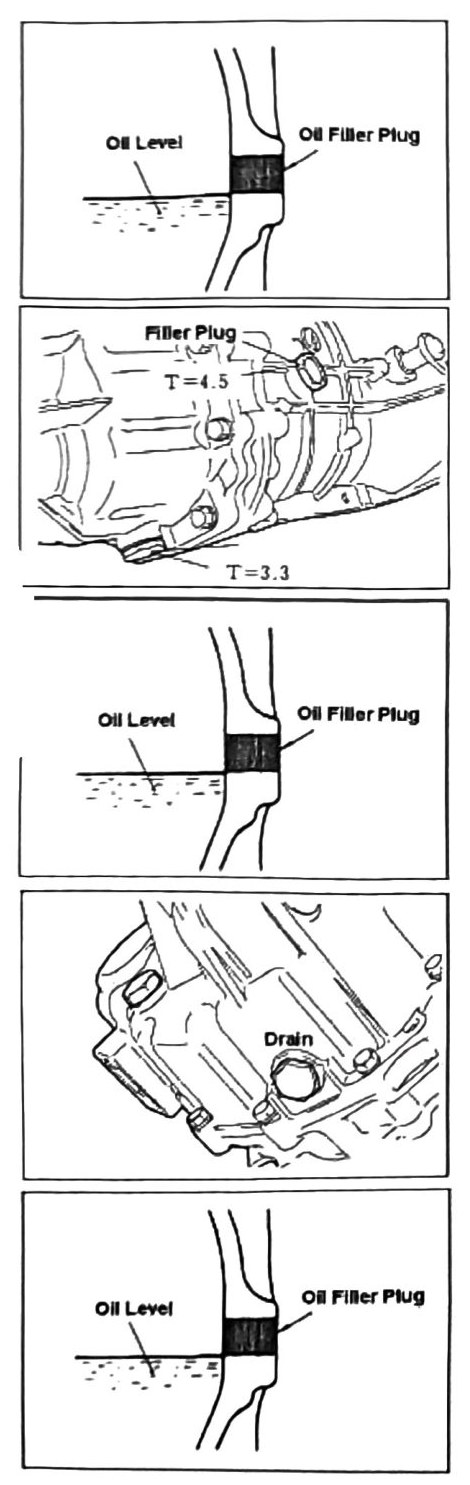

Transfer Case oil level (inspection)
Vehicle must be located on a flat area.
- Remove Filler Plug.
- Oil must be internally at the level of the Filler Plug Hole. Add oil if the case is below the limit.
- Replace Filler Plug.
Transmission oil replacement
Vehicle must be located on a flat area.
- Remove Filler Plug.
- Remove Drain Plug and drain oil.
- Replace Drain Plug and torque as specified.
- Add oil to Filler Plug level. Oil: 75W/85W.
- Replace Filler Plug and torque as specified.
Transfer Case oil replacement
Vehicle must be located on a flat area.
- Remove Filler Plug.
- Remove Drain Plug and drain oil.
- Replace Drain Plug and torque as specified.
- Add oil to Filler Plug level. Oil: 75W/85W.
- Replace Filler Plug and torque as specified.
Note: Never reuse Transmission Oil.
