A/T Cooler System

Applies directly to our truck — use the DOHC-labeled components. Our 4A30 DOHC turbo uses items 1 & 2 below; item 3 (SOHC) is for the naturally-aspirated XR grade and does not apply to our VR-II truck.

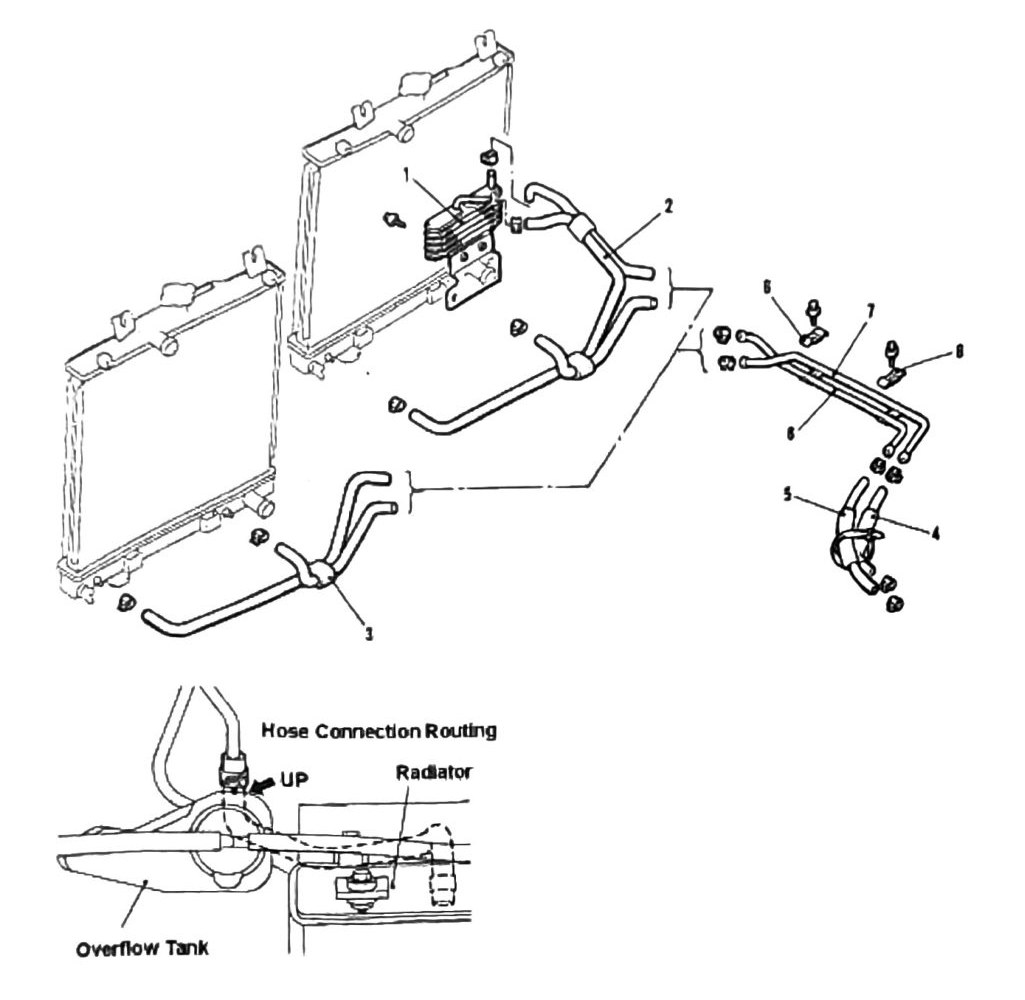

Hose connection routing

Routes between the Radiator (marked UP for orientation) and the Overflow Tank.

Components

1. A/T Oil Cooler (DOHC) — our truck
2. Sub-Hose Assembly (DOHC) — our truck
3. Hose Assembly (SOHC) — not applicable to our truck
4. Return Hose
5. Pressure Line
6. Clamp
7. Return Tube
8. Pressure Tube

Note: Thoroughly inspect all lines before reassembly. Replace any cracked or defective lines.

---

Printed p.190 is the chapter’s closing “Notes” page — blank in the source, no recoverable content. This is the end of Chapter 8.
