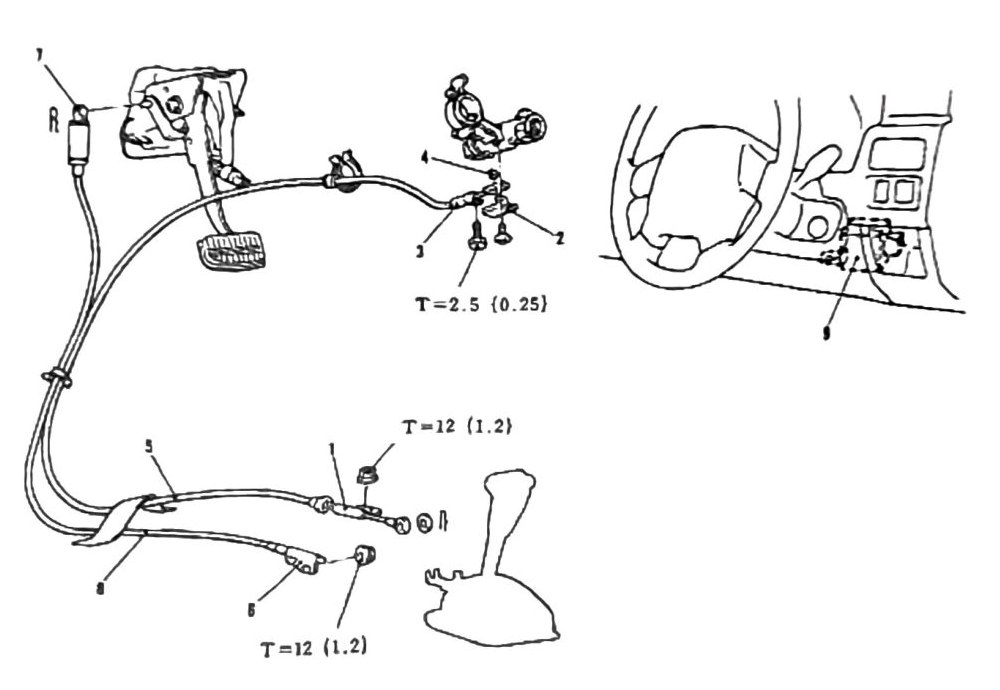

A/T Shift Inter-Lock Cabling System
Applies directly to our truck.
Components
- Key Interlock Cable (Shifter Connection)
- Cover
- Key Interlock Cable (Cylinder Connection)
- Lock Slider Keeper
- Key Interlock Cable Unit
- Interlock Shifter End Tang
- Interlock Cable Pedal Linkage Connection
- Interlock Cable Assembly
- Warning Buzzer
Torque
| Torque callout | N·m (kgf·m) |
|---|---|
| T=12 (106 in-lb) | (1.2) |
| T=2.5 (22 in-lb) | (0.25) |
| T=12 (106 in-lb) | (1.2) |
(verify printed p.187) — three torque callouts are legible, but their correlation to specific fasteners among the 9 components above did not survive OCR. Not confirmed which bracket/clamp gets the lower 2.5 N·m value.
