A/T Shifter Components

Applies directly to our truck.

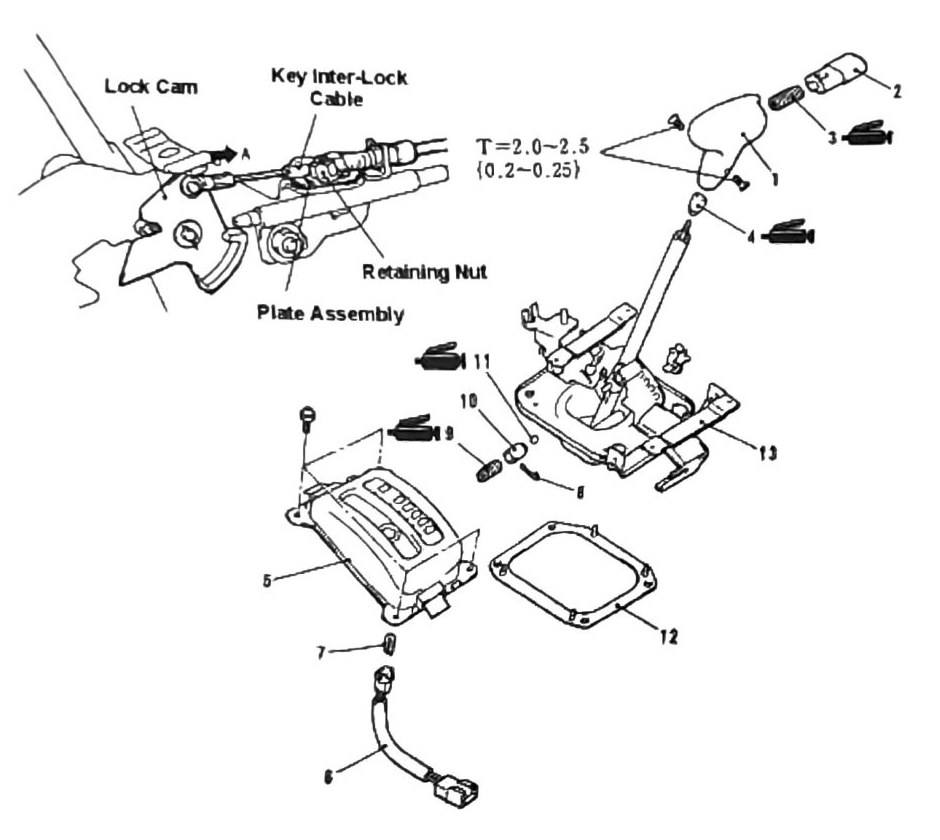

Components

1. Shift Lever Knob
2. Button
3. Spring
4. Sleeve
5. Cover
6. Illumination Light
7. Bulb 12V
8. Pin
9. Ball Spring
10. Ball Support
11. Steel Lock Ball
12. Gasket (Packing)
13. Plate Assembly

The diagram also shows the Lock Cam and Key Inter-Lock Cable as part of this assembly (called out on the diagram without a numbered item).

Torque

Torque callout	N·m (kgf·m)
T=2.0-2.5 (18-22 in-lb)	(0.2-0.25) — Retaining Nut
