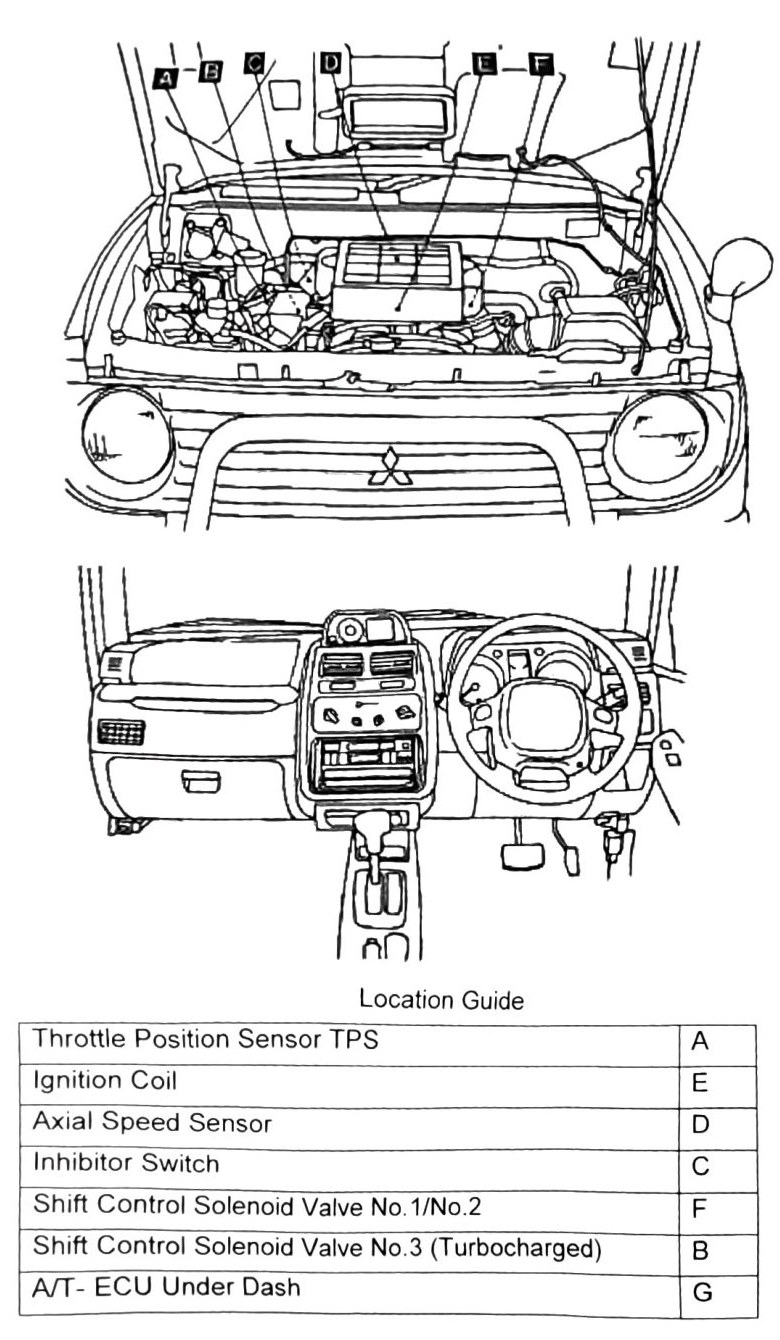

A/T Component Location Guide

Applies directly to our truck. This page is a diagram overview showing where the A/T electronic components are located.

Components shown

• Throttle Position Sensor (TPS)
• Ignition Coil
• Axle Speed Sensor
• Inhibitor Switch
• Shift Control Solenoid Valve No.1 / No.2
• Shift Control Solenoid Valve No.3 (Turbocharged) — our truck
• A/T-ECU (under dash)

(verify printed p.181) — the diagram’s lettered callouts (A through G) linking each component name to its physical location did not survive OCR in a legible order; the letter sequence transcribed (“AEDCFBC”) does not map cleanly to the seven components listed. Do not guess the letter-to-component pairing — refer to the printed diagram for physical location.
