Rocker Arm & Camshaft — DOHC

DOHC only (our truck’s configuration: 4A30 DOHC turbo). The manual states: “See first Section of this manual for Maintenance Notes” — this section is components-only; the manual does not repeat general maintenance-note boilerplate here.

Key difference from SOHC

Note: Lash adjustment is automatically set by hydraulic adjusters.

Unlike the SOHC engine (see 36-rocker-arm-camshaft-sohc.md), there is no manual valve lash procedure for DOHC — no cold-lash spec, no adjusting screw, no lock-nut torque. The hydraulic lash adjuster (item 7 below) handles this automatically.

Component removal order

  1. Breather hose
  2. PCV hose
  3. Rocker arm
  4. Camshaft housing assembly
  5. Rocker arm holder
  6. Gasket
  7. Lash adjuster
  8. Bracket
  9. Gasket
  10. Cover
  11. Gasket
  12. Camshaft
  13. Camshaft
  14. Oil seal
  15. Camshaft housing

Note: See Parts Manual for replacement gaskets.

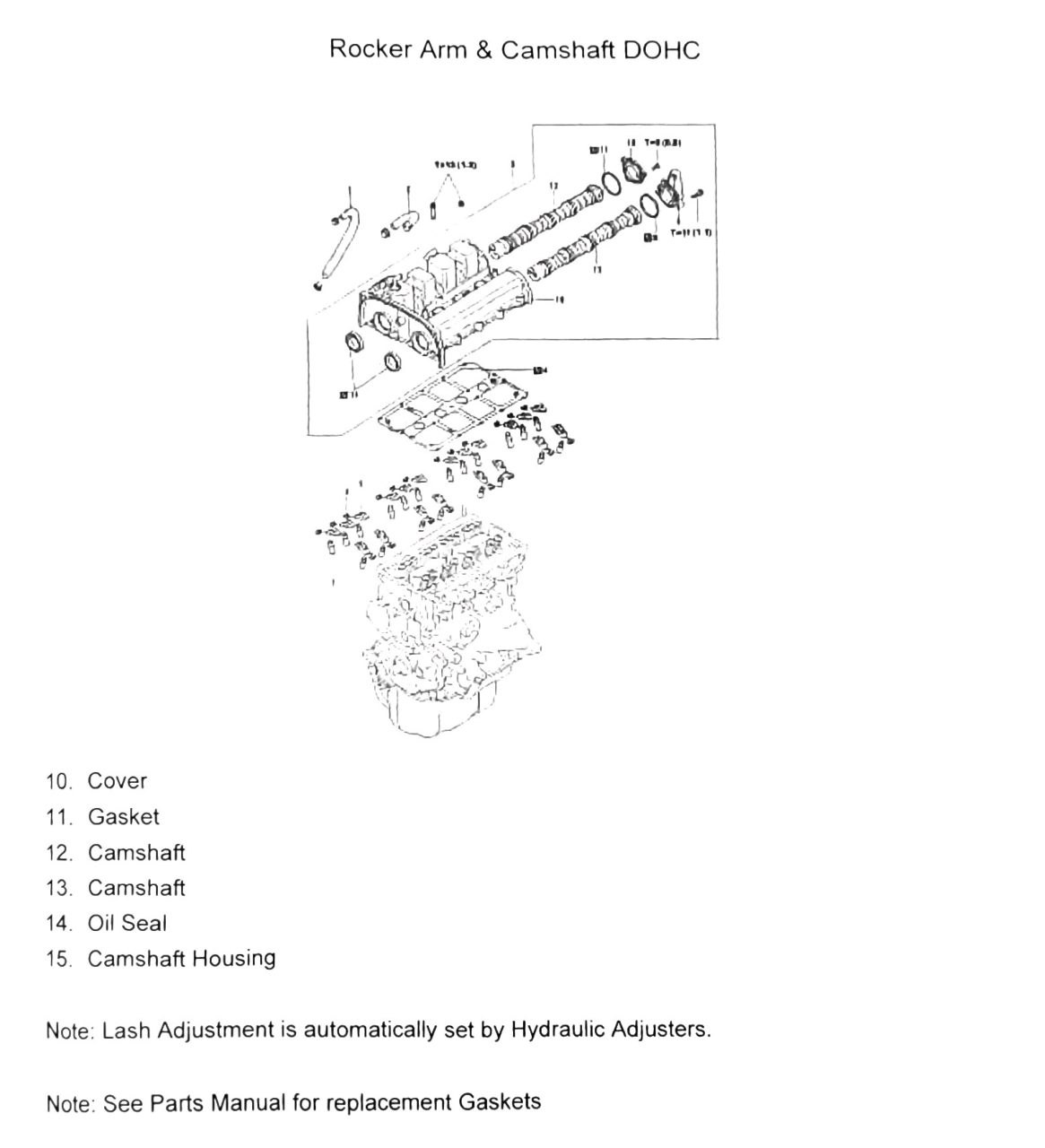

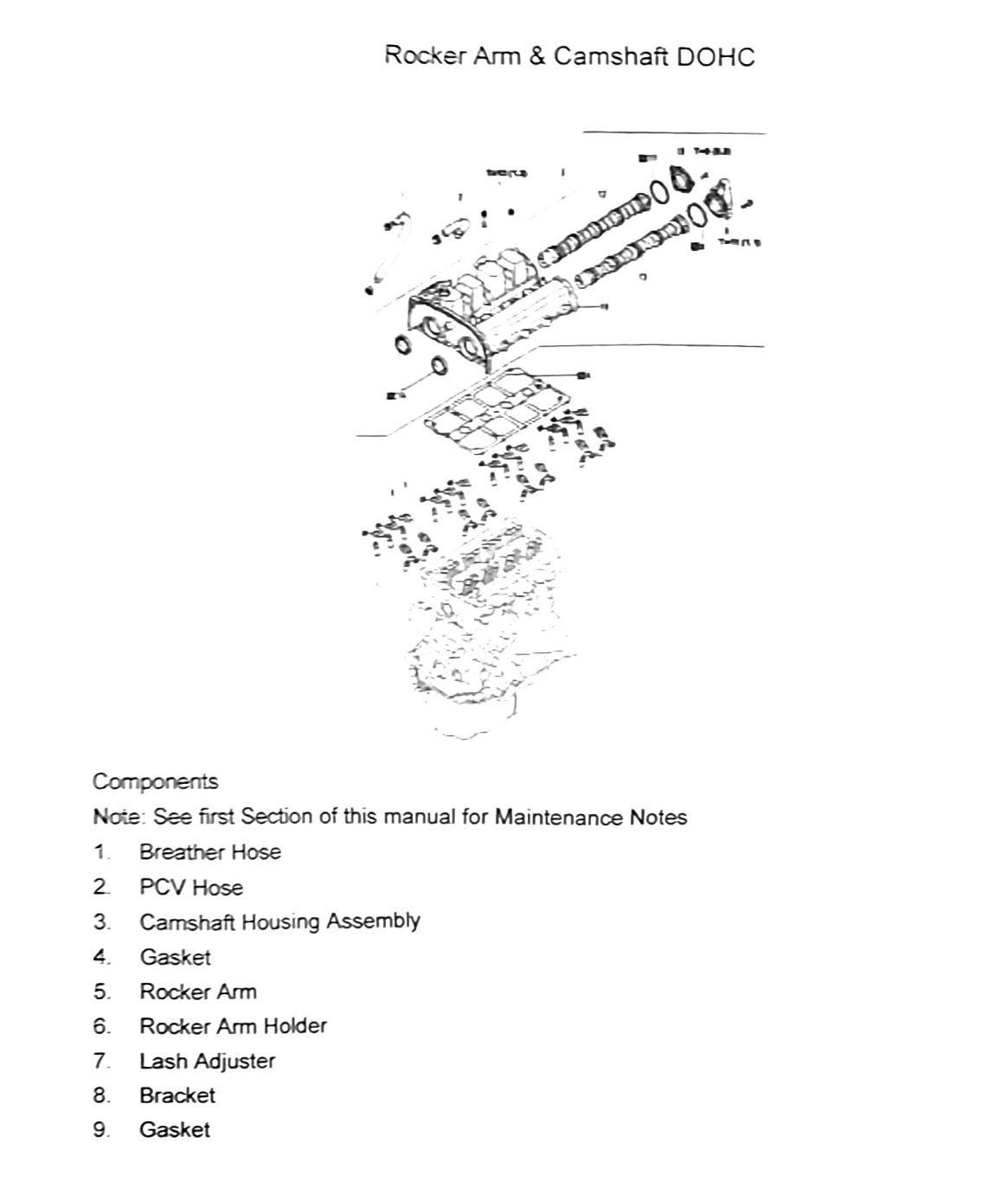

Figure: Rocker arm & camshaft DOHC, components (housing/rocker/adjuster) Figure: Rocker arm & camshaft DOHC, components (cover/camshaft/oil seal)

Torque values (as scanned)

A single fragment, “T-71,” appears near the camshaft housing cover callouts on printed p.87. Not enough surrounding context survived OCR to confirm units or which fastener it applies to.

(verify printed p.87) — confirm the camshaft housing cover bolt torque; only an unreliable fragment (“T-71”) was recovered.
