Tools & Special Equipment

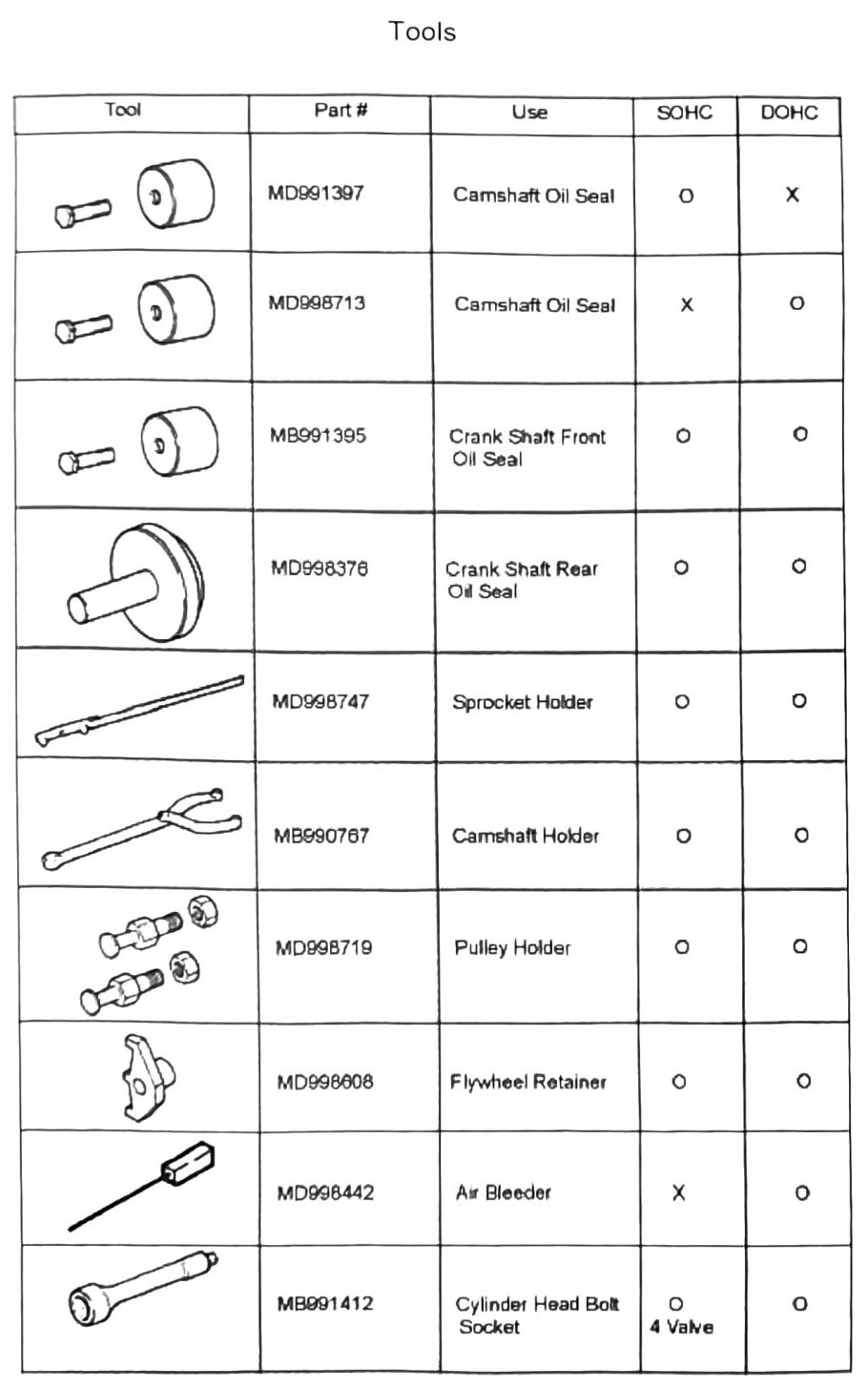

Special service tools referenced throughout Chapter 2. The source table’s SOHC/DOHC applicability columns (a grid of “O”/“X” marks) did not survive OCR with reliable column alignment — applicability notes below are drawn from where each tool is actually cited in later sections of this chapter, not from the garbled grid itself.
| Part # | Tool | Use | Applicability (per later sections) |
|---|---|---|---|
| MD991397 | Camshaft oil seal tool | Camshaft oil seal service | (verify printed p.23) — not otherwise cited in this chapter |
| MD998713 | Camshaft oil seal installer | Install new camshaft oil seals | Used in both SOHC (Section 18) and DOHC (Section 19) procedures |
| MB991395 | Crankshaft front oil seal tool | Front main seal service | (verify printed p.23) — see conflict note below |
| MD998376 | Crankshaft rear oil seal driver | Install rear main seal | Confirmed used in Section 23 (rear seal installation) |
| MD998747 | Sprocket holder | Hold crank sprocket / pulley while loosening bolt | Confirmed used in Section 14 (crankshaft pulley removal) |
| MB990767 | Camshaft holder | Retain camshaft sprocket during R&R | Used with MD998719 in both SOHC (Section 21) and DOHC (Section 19) procedures |
| MD998719 | Pulley holder | Retain camshaft sprocket during R&R | Used with MB990767 in both SOHC (Section 21) and DOHC (Section 19) procedures |
| MD998608 | Flywheel retainer | Hold flywheel while loosening crankshaft bolt | Referenced (unnamed) in Section 16 SOHC timing belt procedure |
| MD998442 | Air bleeder | Cooling system air bleed | (verify printed p.23) — not otherwise cited in this chapter |
| MB991412 | Cylinder head bolt socket | Cylinder head bolt removal/torque, “4 valve” | (verify printed p.23) — labeled “4 Valve”; per the vehicle classification note in Section 8/Section 2, valve-count labels in this scan have proven unreliable, so confirm against the printed page before assuming this is SOHC- or DOHC-specific |
(verify printed p.23) — the tools table lists MB991395 as the front crankshaft oil seal tool, but Section 23’s own installation procedure (printed p.58) names a different part number, MD999570, as the front seal driver. This is a direct part-number conflict between two source pages; confirm the correct tool number against the printed page before ordering or using either.
