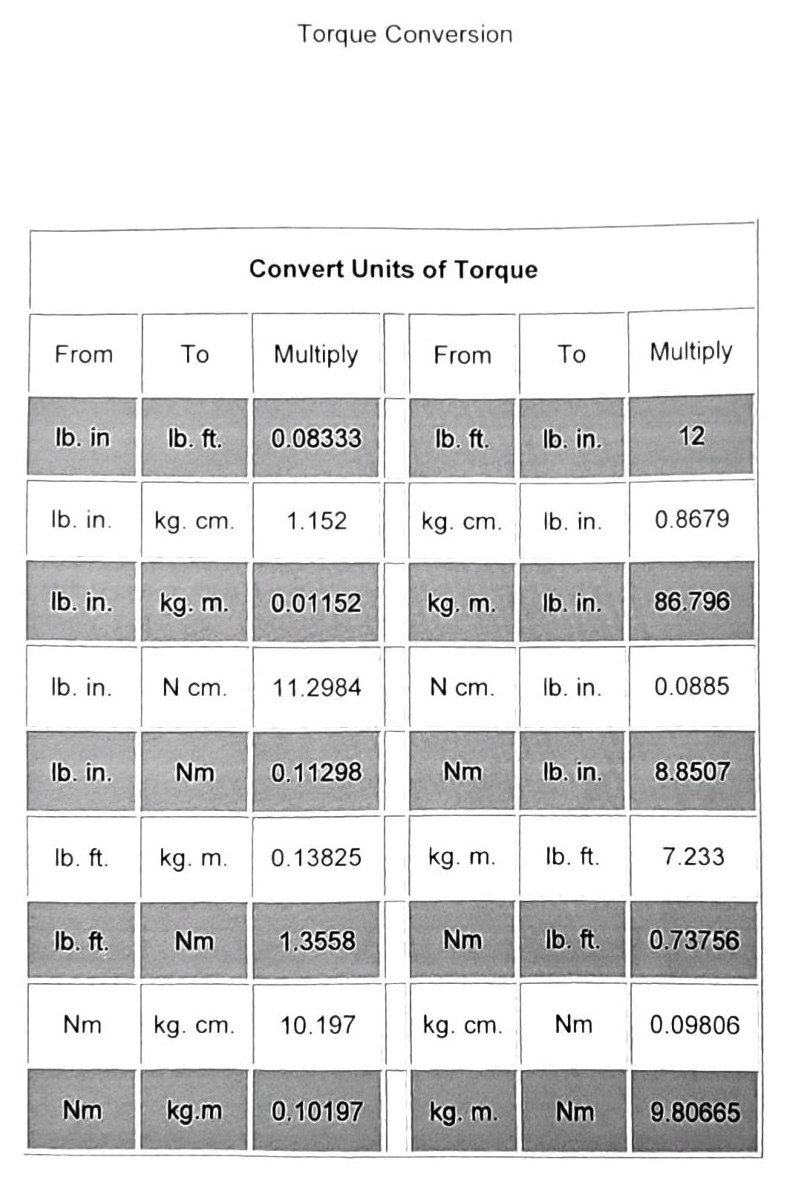

Torque Conversion Chart
Reference chart for converting between torque units used throughout the manual (lb·in, lb·ft, kg·cm, kg·m, N·cm, N·m).
| From | To | Multiply by |
|---|---|---|
| lb·in | lb·ft | 0.08333 |
| lb·ft | lb·in | 12 |
| lb·in | kg·cm | 1.152 |
| kg·cm | lb·in | 0.8679 |
| lb·in | kg·m | 0.01152 |
| kg·m | lb·in | 86.796 |
| lb·in | N·cm | 11.2984 |
| N·cm | lb·in | 0.0885 |
| lb·in | N·m | 0.11298 |
| N·m | lb·in | 8.8507 |
| lb·ft | kg·m | 0.13825 |
| kg·m | lb·ft | 7.233 |
| lb·ft | N·m | 1.3558 |
| N·m | lb·ft | 0.73756 |
| N·m | kg·cm | 10.197 |
| kg·cm | N·m | 0.09806 |
| N·m | kg·m | 0.10197 |
| kg·m | N·m | 9.80665 |
OCR note: the printed page lays this out as two side-by-side sub-tables (9 rows each) rather than one 18-row table; content is merged here for readability. Unlike most tables in this chapter, every value above checks out against standard published torque-unit conversion factors — no numeric OCR corruption was found, so none of these rows carry a
(verify printed p.X)flag.
