Rear Drum Brakes

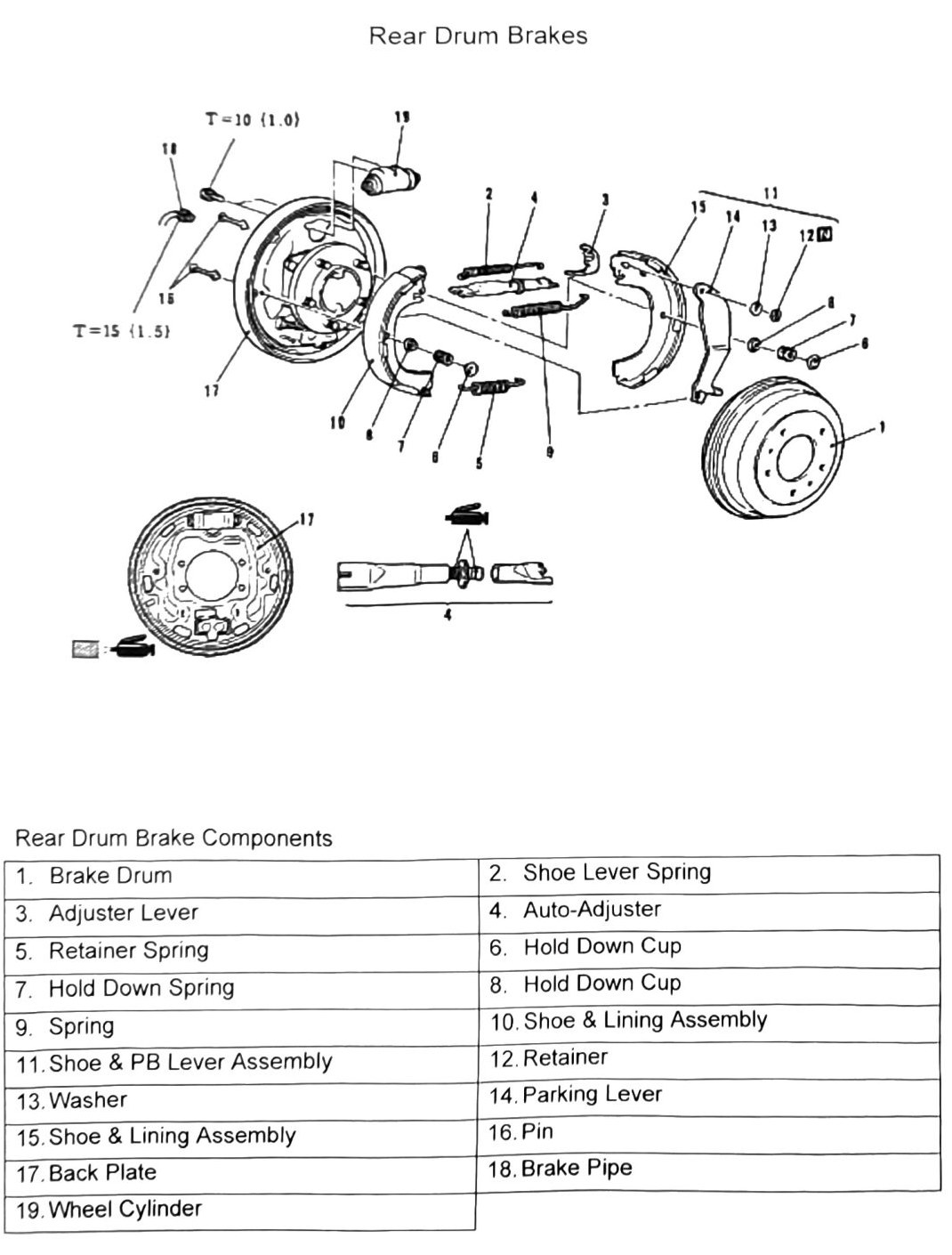

Components
| Item | Description |
|---|---|
| 1 | Brake Drum |
| 2 | Shoe Lever Spring |
| 3 | Adjuster Lever |
| 4 | Auto-Adjuster |
| 5 | Retainer Spring |
| 6 | Hold Down Cup |
| 7 | Hold Down Spring |
| 8 | Hold Down Cup |
| 9 | Spring |
| 10 | Shoe & Lining Assembly |
| 11 | Shoe & PB Lever Assembly |
| 12 | Retainer |
| 13 | Washer |
| 14 | Parking Lever |
| 15 | Shoe & Lining Assembly |
| 16 | Pin |
| 17 | Back Plate |
| 18 | Brake Pipe |
| 19 | Wheel Cylinder |
Torque specifications
| Torque callout | N·m (kgf·m) | in-lb |
|---|---|---|
| T=10 | (1.0) | 89 |
| T=15 | (1.5) | 133 |
(verify printed p.278) — not confidently matched to specific items among the 19-part exploded view (likely back plate mounting bolts vs. wheel cylinder mounting bolts, but unconfirmed). The source diagram also shows the second value with a mismatched closing brace, transcribed as “T=15 (1.5}” — treating this as “(1.5)” but flagging the OCR artifact.
See Disk Rotor & Rear Drum Inspection for lining thickness and drum diameter wear limits.
