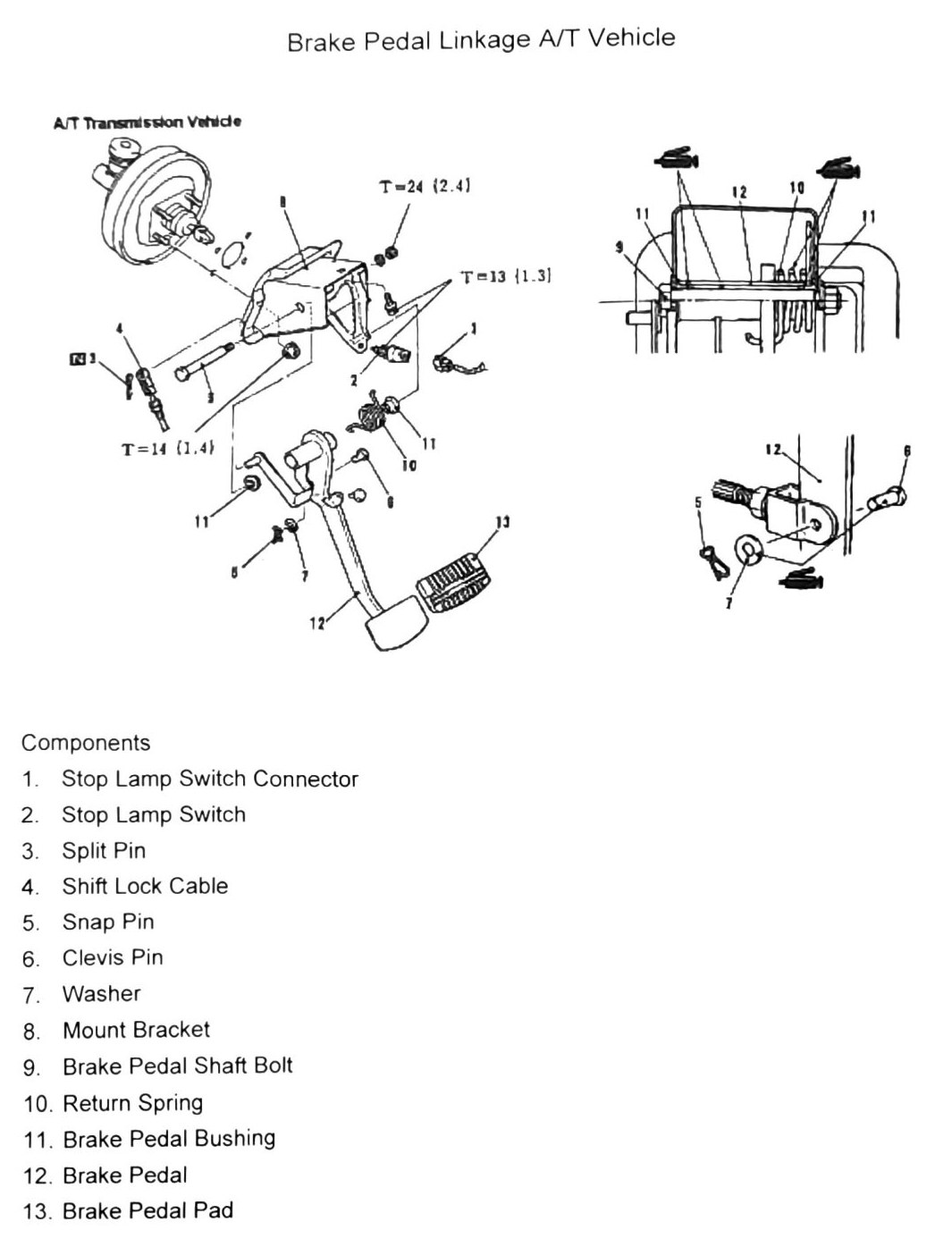

Brake Pedal Linkage: A/T Vehicle
Applies to our truck (3A/T automatic).
Components
| Item | Description |
|---|---|
| 1 | Stop Lamp Switch Connector |
| 2 | Stop Lamp Switch |
| 3 | Split Pin |
| 4 | Shift Lock Cable |
| 5 | Snap Pin |
| 6 | Clevis Pin |
| 7 | Washer |
| 8 | Mount Bracket |
| 9 | Brake Pedal Shaft Bolt |
| 10 | Return Spring |
| 11 | Brake Pedal Bushing |
| 12 | Brake Pedal |
| 13 | Brake Pedal Pad |
Torque specifications
| Torque callout | N·m (kgf·m) | ft-lb/in-lb |
|---|---|---|
| T=13 | (1.3) | 115 in-lb |
| T=14 | (1.4) | 124 in-lb |
| T=24 | (2.4) | 18 ft-lb |
(verify printed p.270) — as with the M/T version of this diagram, the three torque callouts could not be confidently matched to specific item numbers from the OCR text alone (e.g. which fastener gets T=24 (2.4) vs. the smaller values). Given this directly affects our truck’s brake pedal shaft/shift-lock hardware, confirm against the source figure before torquing anything from this list.
