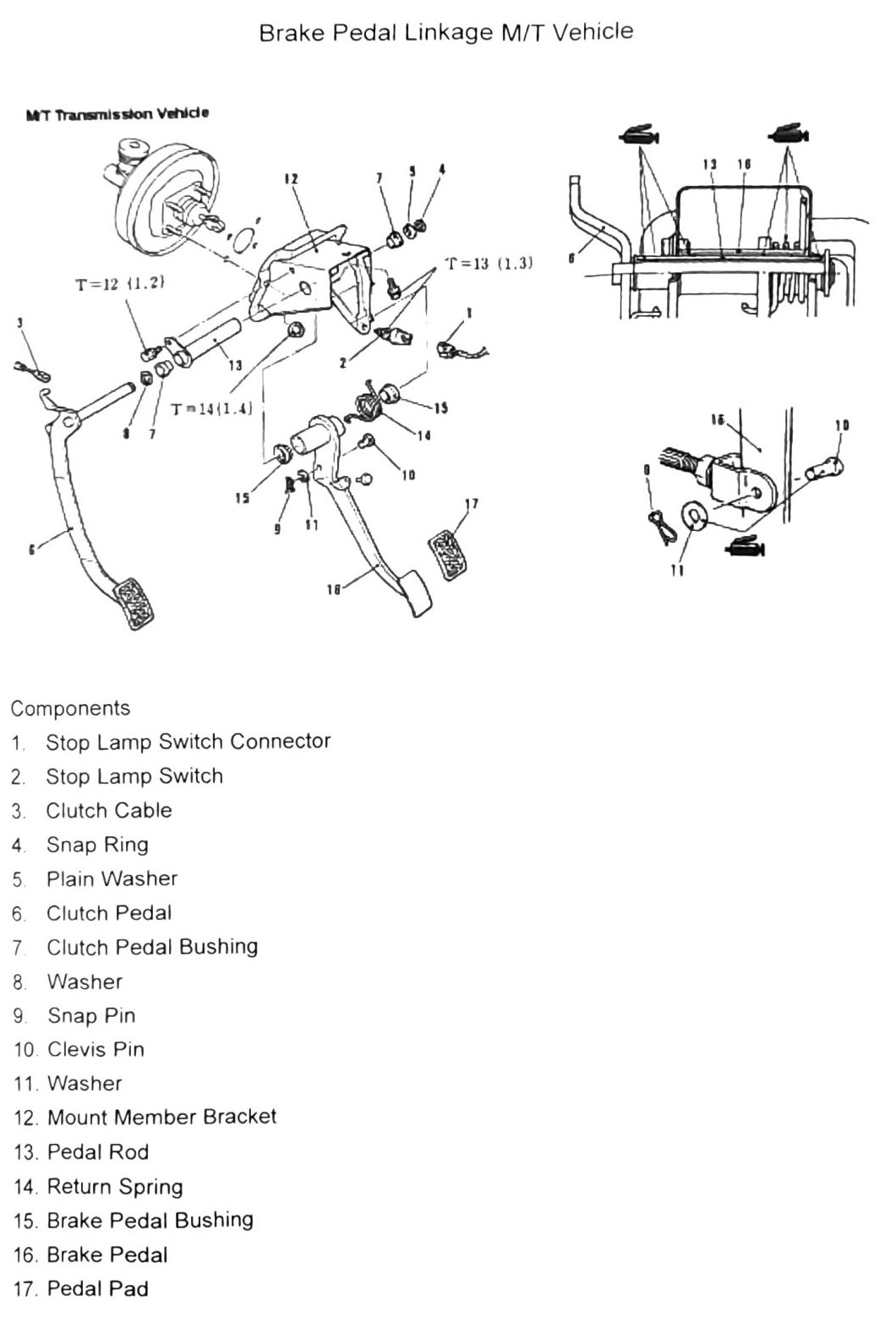

Brake Pedal Linkage: M/T Vehicle
Not applicable to our truck. Our reference vehicle is 3A/T automatic — use Brake Pedal Linkage: A/T Vehicle instead. This section is transcribed for completeness/reference only.
Components
| Item | Description |
|---|---|
| 1 | Stop Lamp Switch Connector |
| 2 | Stop Lamp Switch |
| 3 | Clutch Cable |
| 4 | Snap Ring |
| 5 | Plain Washer |
| 6 | Clutch Pedal |
| 7 | Clutch Pedal Bushing |
| 8 | Washer |
| 9 | Snap Pin |
| 10 | Clevis Pin |
| 11 | Washer |
| 12 | Mount Member Bracket |
| 13 | Pedal Rod |
| 14 | Return Spring |
| 15 | Brake Pedal Bushing |
| 16 | Brake Pedal |
| 17 | Pedal Pad |
Torque specifications
| Torque callout | N·m (kgf·m) | in-lb |
|---|---|---|
| T=12 | (1.2) | 106 |
| T=13 | (1.3) | 115 |
| T=14 | (1.4) | 124 |
(verify printed p.269) — none of the three torque callouts on this diagram could be confidently matched to a specific item number; the leader lines did not survive OCR as machine-readable text. Confirm against the source figure before use — moot for our A/T truck, but flagged for completeness.
