Rear Suspension Components
Note: for details on the differential and brake systems, see the respective chapters in this manual.
Torque specifications

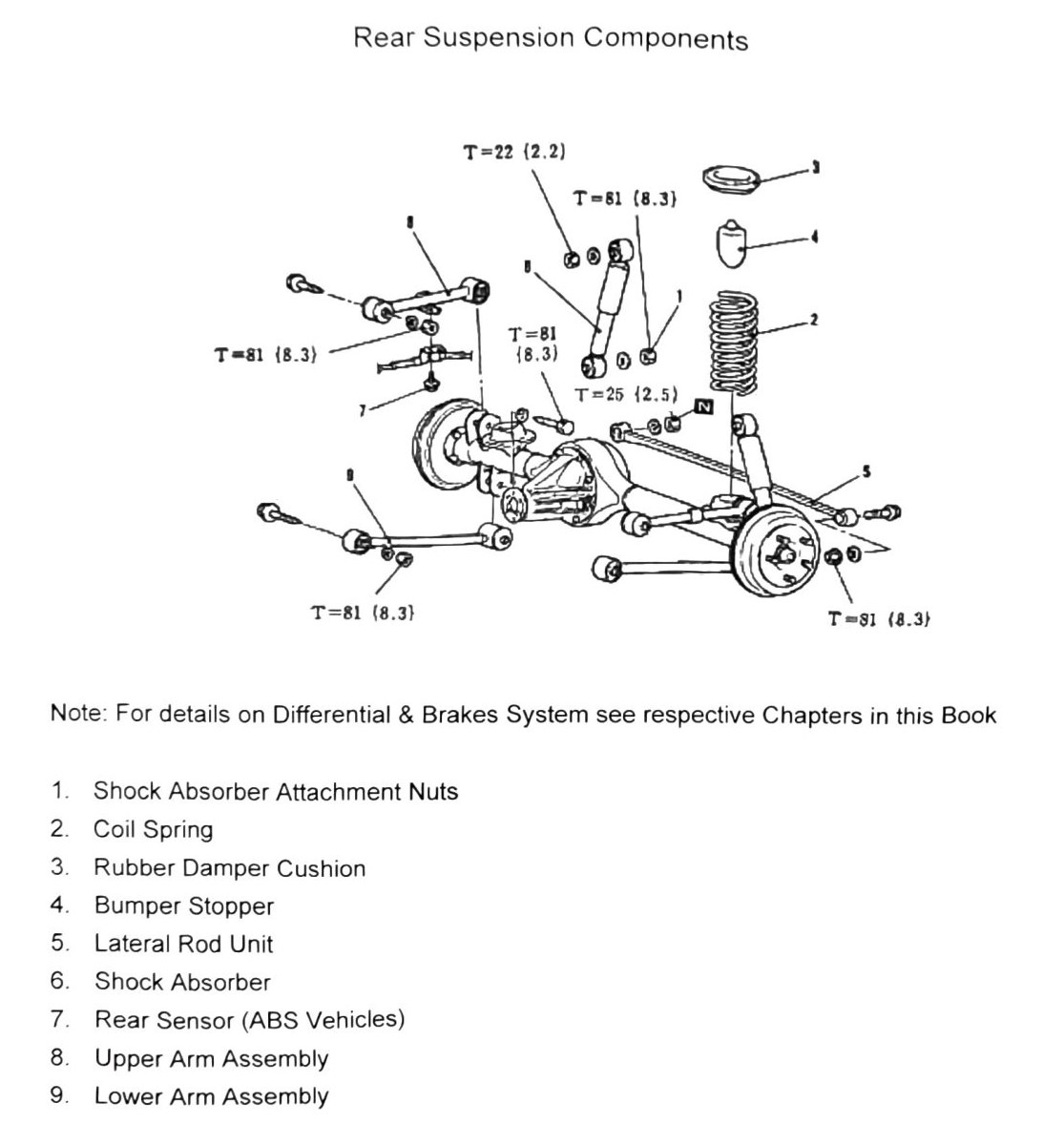

The diagram on this page shows three distinct torque values across multiple fastener positions. The OCR text does not label which of the nine components below each value applies to — listed here as read, (verify printed p.262) before use:
| Torque value | Notes |
|---|---|
| 22 N·m (2.2 kgf·m; 16 ft-lb) | single occurrence |
| 81 N·m (8.3 kgf·m; 60 ft-lb) | appears at four separate fastener positions |
| 25 N·m (2.5 kgf·m; 18 ft-lb) | single occurrence |
Components
| # | Component | Notes |
|---|---|---|
| 1 | Shock Absorber Attachment Nuts | |
| 2 | Coil Spring | |
| 3 | Rubber Damper Cushion | |
| 4 | Bumper Stopper | |
| 5 | Lateral Rod Unit | |
| 6 | Shock Absorber | |
| 7 | Rear Sensor | ABS vehicles only |
| 8 | Upper Arm Assembly | |
| 9 | Lower Arm Assembly |
OCR note: the nine-item components list was printed sequentially and required no reordering. The torque-to-fastener pairing above could not be confirmed from OCR text alone — (verify printed p.262).
