Cross Member
Torque specifications
| Fastener | Torque |
|---|---|
| Lower arm attachment bolts | 105 N·m (10.5 kgf·m; 77 ft-lb) |
| Cross member attachment bolts | 69-83 N·m (7.0-8.5 kgf·m; 51-61 ft-lb) |

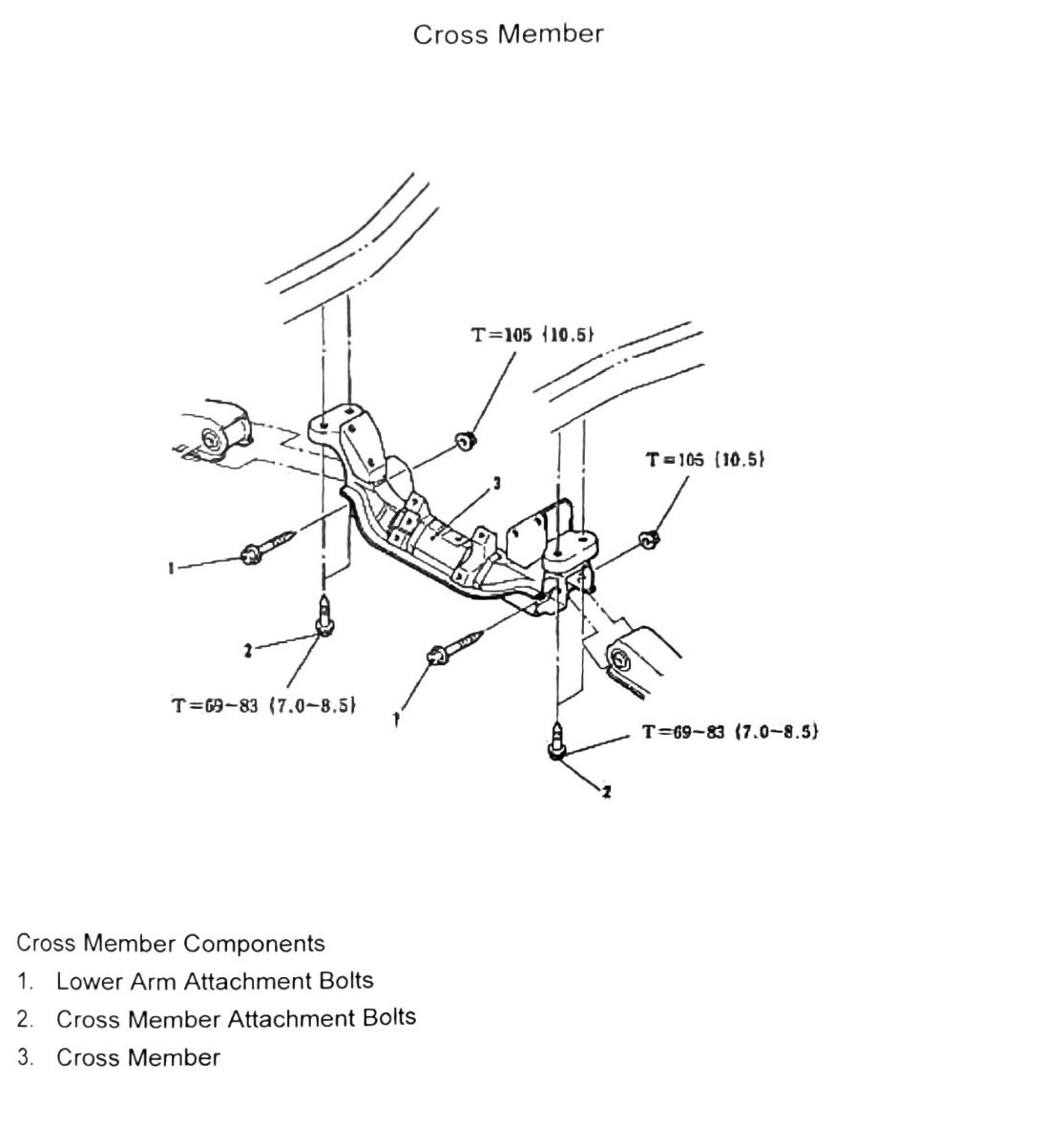

Cross Member Components
| # | Component |
|---|---|
| 1 | Lower Arm Attachment Bolts |
| 2 | Cross Member Attachment Bolts |
| 3 | Cross Member |
