Transmission Cross Members
Covers the transmission mount/cross member assembly (printed p.253) and, for 4WD vehicles, the transfer case cross member (printed p.254). Every Pajero Mini grade is 4WD (see Vehicle Classification), so the transfer case section applies to our truck.

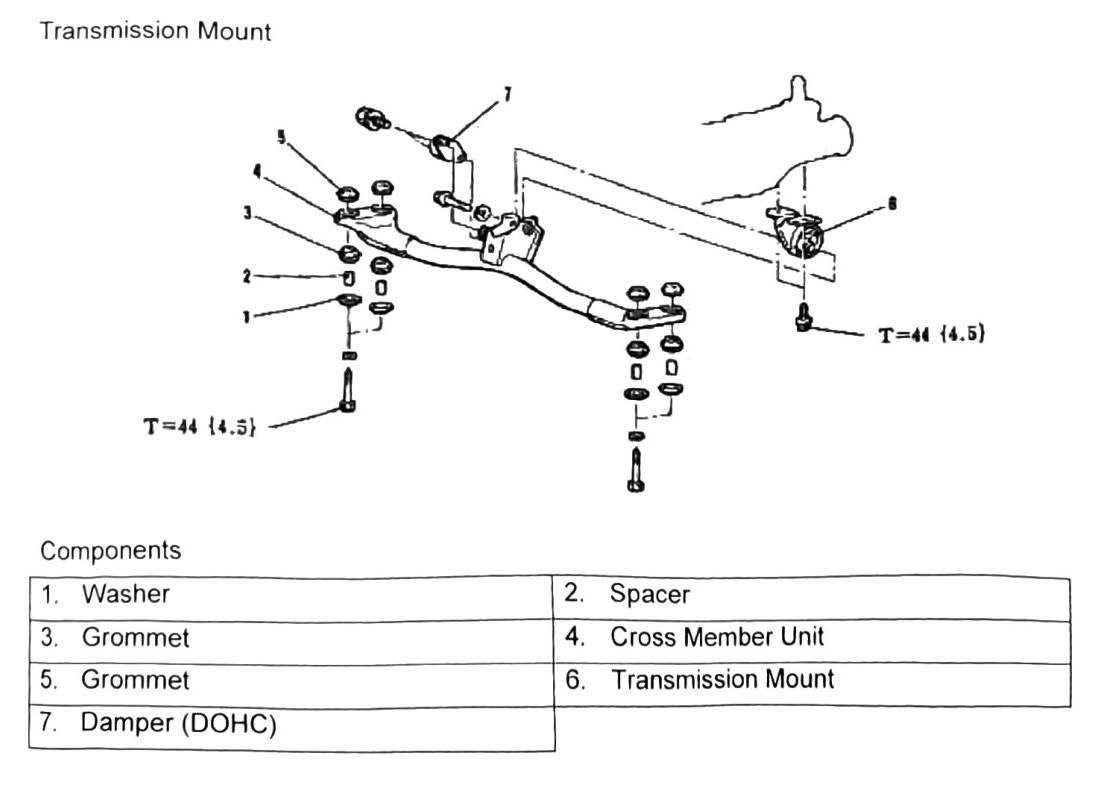

Transmission Mount
Torque specification
| Fastener | Torque |
|---|---|
| Transmission mount fasteners | 44 N·m (4.5 kgf·m; 32 ft-lb) |
Components
| # | Component | Notes |
|---|---|---|
| 1 | Washer | |
| 2 | Spacer | |
| 3 | Grommet | |
| 4 | Cross Member Unit | |
| 5 | Grommet | |
| 6 | Transmission Mount | |
| 7 | Damper | DOHC only |
OCR note: component order reconstructed from scattered printed item numbers (1–7) across a scrambled two-column OCR layout. Two additional OCR fragments on this section of the page (
0000,010-0) did not resolve to any legible torque value or part label and are treated as scan noise, not data.

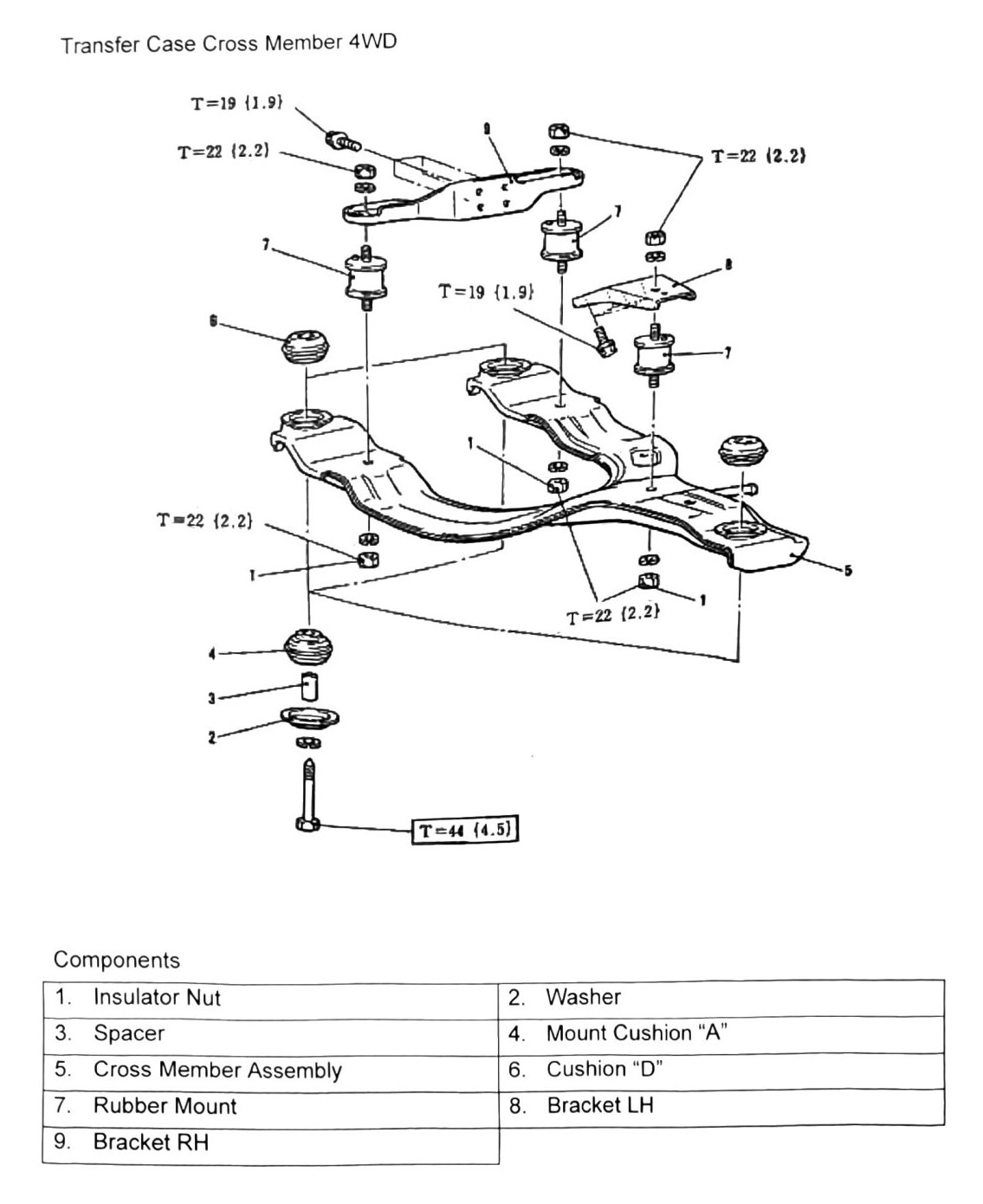

Transfer Case Cross Member (4WD)
Torque specifications
| Torque value | Notes |
|---|---|
| 44 N·m (4.5 kgf·m; 32 ft-lb) | |
| 22 N·m (2.2 kgf·m; 16 ft-lb) | appears at multiple fastener positions in the diagram |
| 19 N·m (1.9 kgf·m; 168 in-lb) | appears at multiple fastener positions in the diagram |
Components
| # | Component | Notes |
|---|---|---|
| 1 | Insulator Nut | |
| 2 | Washer | |
| 3 | Spacer | |
| 4 | Mount Cushion “A” | |
| 5 | Cross Member Assembly | |
| 6 | Cushion “D” | |
| 7 | Rubber Mount | |
| 8 | Bracket LH | |
| 9 | Bracket RH |
OCR note: component order reconstructed from scattered printed item numbers (1–9). The diagram shows three distinct torque values (44/22/19 N·m) at multiple fastener points, but which specific fastener among the 9 components takes which value could not be confirmed from OCR text alone — (verify printed p.254) before using these values on specific bolts rather than as a page-level reference set.
