Engine Mount & Sub Frame
Covers the engine mount hardware that secures the 4A30 engine to the sub-frame. The DOHC (turbo) engine carries an additional heat protector not fitted to the SOHC engine; all other components are common to both.

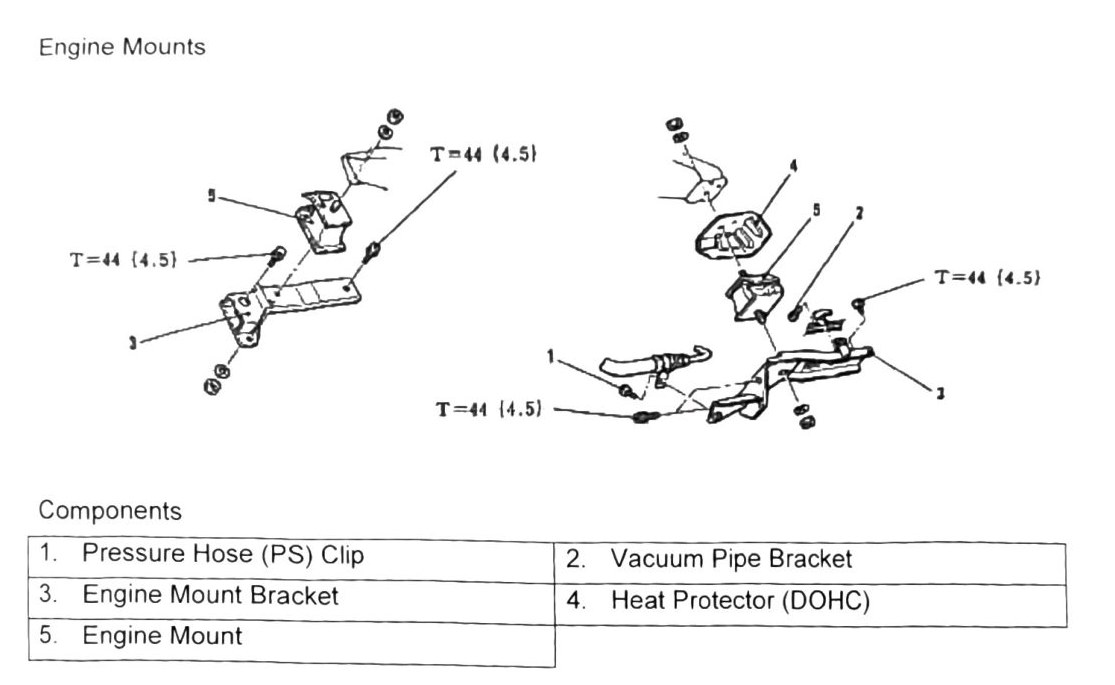

Engine Mounts
Torque specification
| Fastener | Torque |
|---|---|
| Engine mount bolts (4 shown) | 44 N·m (4.5 kgf·m; 32 ft-lb) |
Components
| # | Component | Notes |
|---|---|---|
| 1 | Pressure Hose (PS) Clip | |
| 2 | Vacuum Pipe Bracket | |
| 3 | Engine Mount Bracket | |
| 4 | Heat Protector | DOHC only — not fitted to SOHC engines |
| 5 | Engine Mount |
OCR note: the components list on this page was split across two scrambled OCR columns; order above was reconstructed from the printed item numbers (1–5), which were legible even though scattered. The diagram shows four separate torque callouts, all reading the same value (44 N·m / 4.5 kgf·m) — individual callout-to-bolt-position mapping could not be confirmed from the OCR text alone. (verify printed p.253) if any individual engine mount bolt uses a different torque than the common value listed above.
