Vehicle Jacking & Lift Points

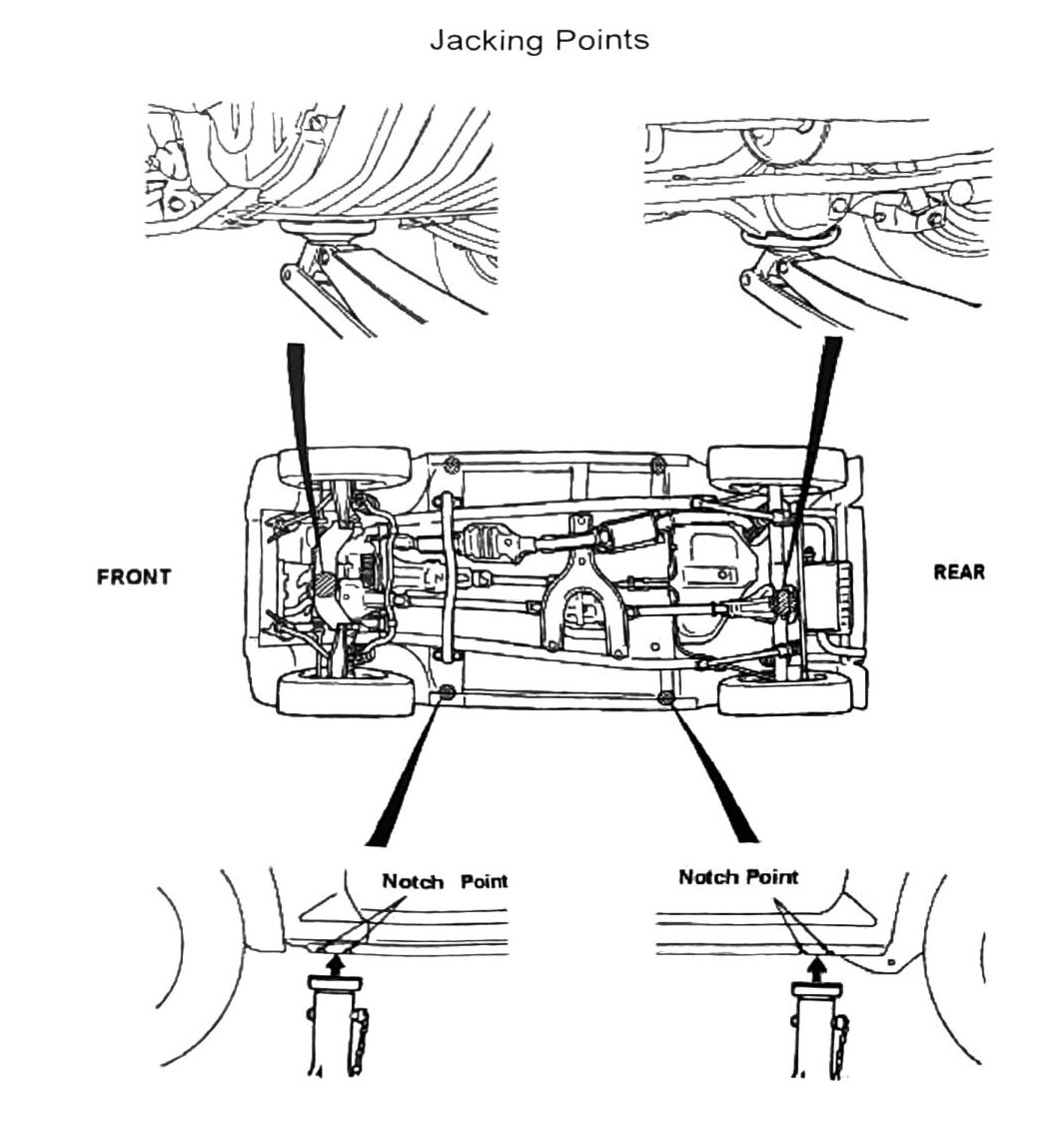

Jacking points

Front and rear jacking points are marked by notches in the frame/rocker (a “notch point” at both front and rear). Position a floor jack or bottle jack under these notch points only.

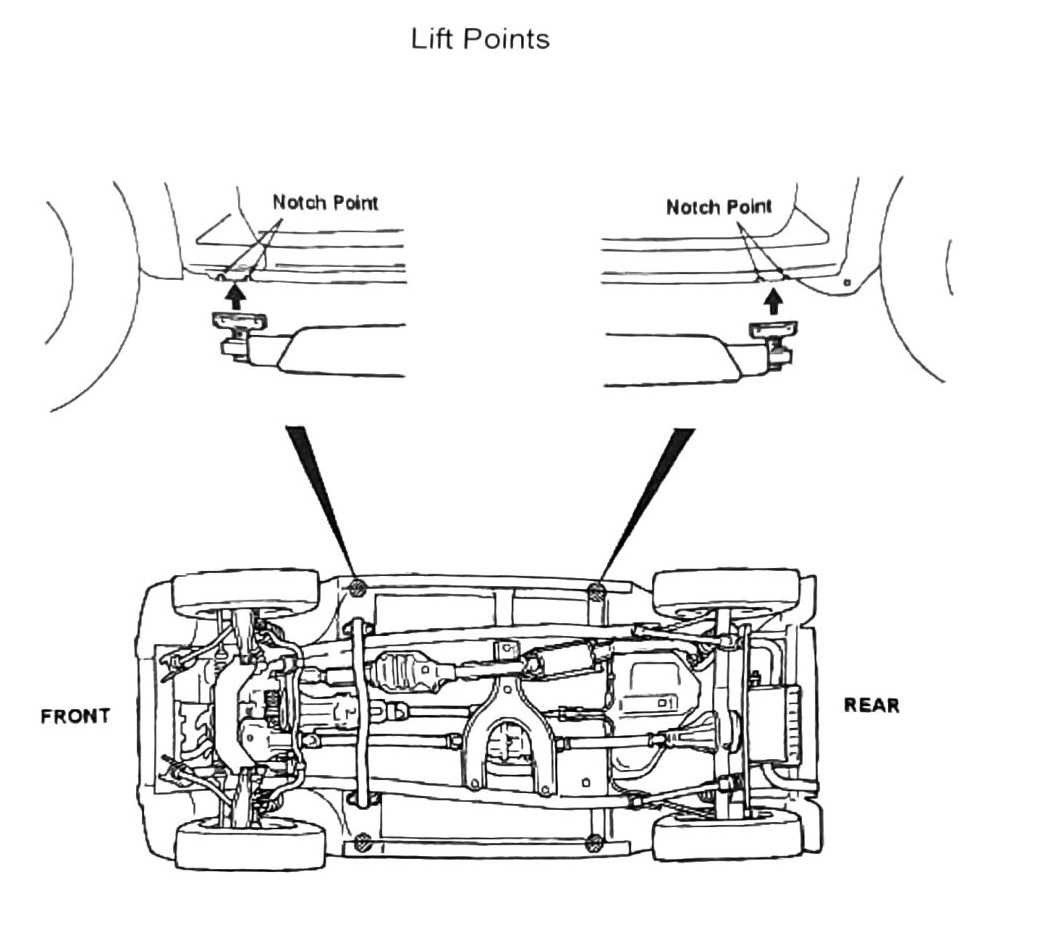

Lift points

Front and rear hoist/lift points are similarly marked by notch points, distinct from the jacking points above. Position lift arms/pads under these notch points when using a two-post or four-post hoist.

Note: the source pages are diagram-led with minimal running text — beyond the “Notch Point” / FRONT / REAR callouts shown above, the printed pages carry no dimensions or weight-rating text at all. (verified against scan p.18-19, 2026-08-30) — confirmed visually: p.18 shows the underside view with two upper insets (front jacking pad under the front crossmember/differential area, rear jacking pad under the rear axle) and two lower insets of a jack under the sill “Notch Point” locations; p.19 shows the same underside view with the sill “Notch Point” insets for lift pads. No load ratings or jack-pad dimensions are stated anywhere on either page.
