Vehicle Under-Chassis Inspection Points

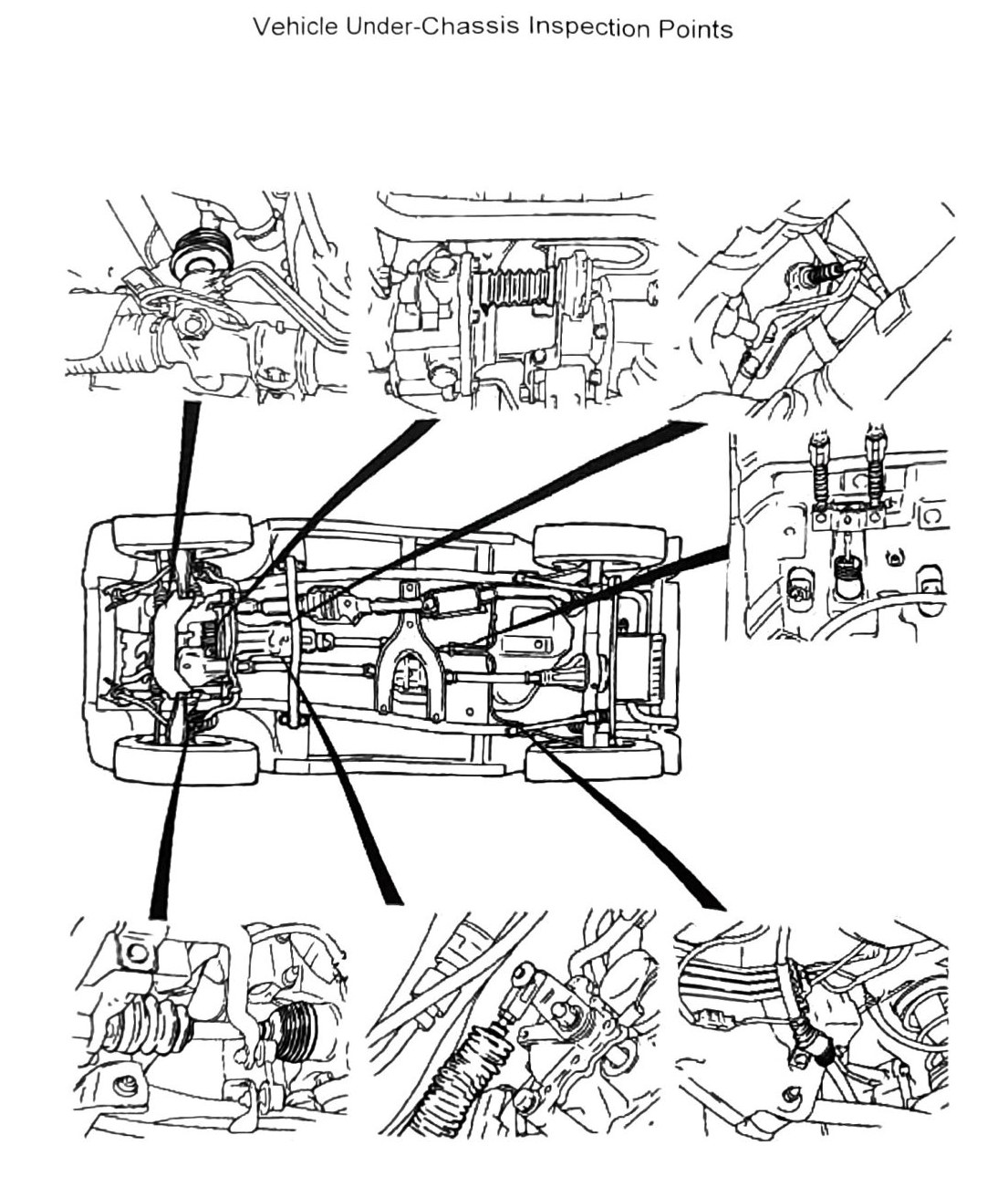

This page is primarily a labeled under-chassis diagram, calling out inspection points along the underside of the vehicle (suspension, driveline, exhaust, and fluid points).

Note: see the relevant component sections elsewhere in the manual for detailed repair procedures at each callout.

Note: see Vehicle Under-Chassis Oil & Fluids Inspection Points (the following page) for oil and transmission fluid inspection points specifically.

Resolved (verified against scan p.16, 2026-08-30): the printed page carries no callout labels or numbers at all — the diagram consists of the central underside view linked by plain leader wedges to seven unlabeled pictorial detail insets (front hub/brake area, transfer/driveline, brake line union, rear shackle/bolts, CV boot/driveshaft, steering boot/linkage, rear brake hose/axle area). The only text on the page is the title and the two notes reproduced above. There is no lost label text to recover.
