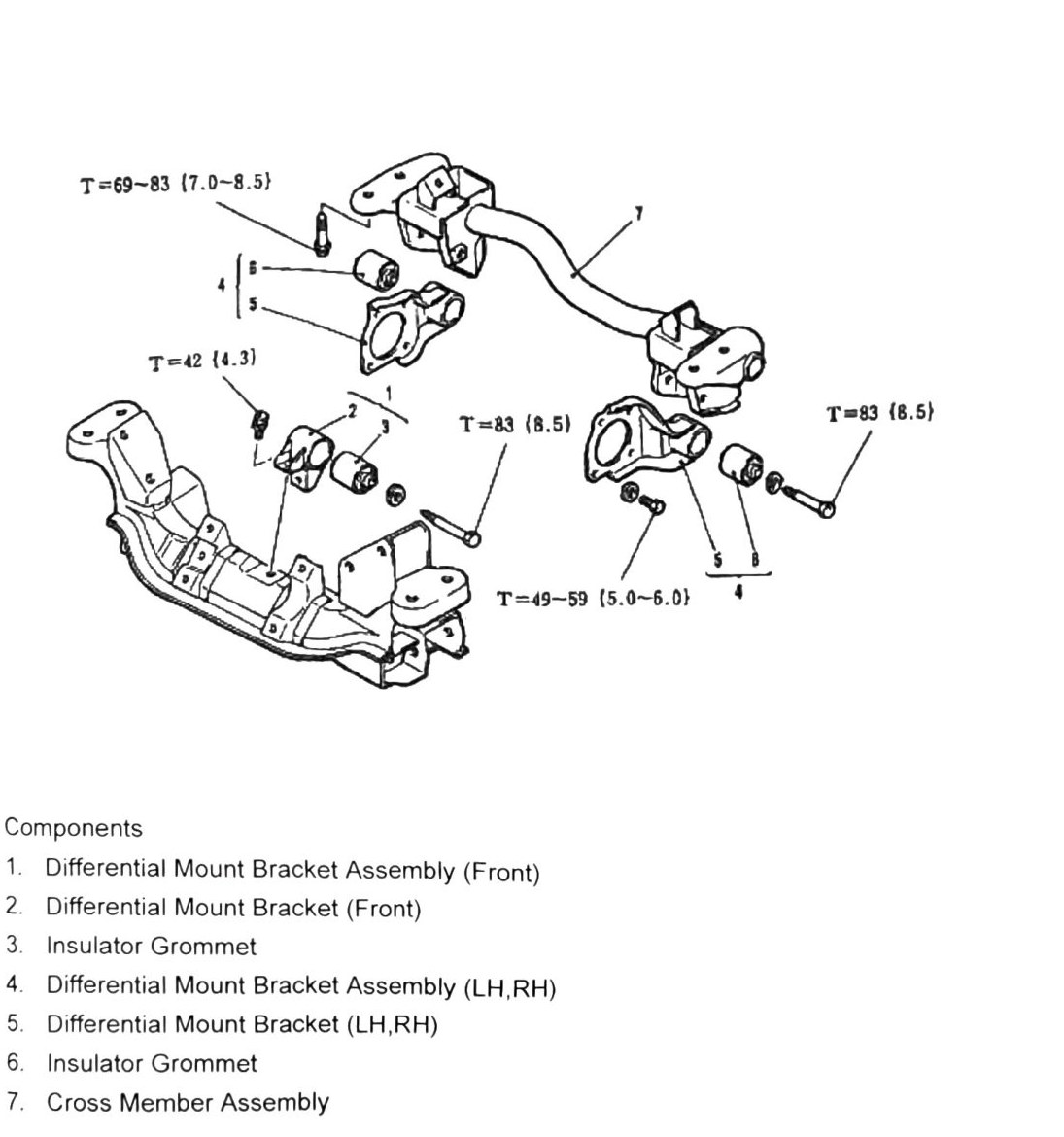

Front Differential Cross Member System (4WD)
Components
- Differential Mount Bracket Assembly (Front)
- Differential Mount Bracket (Front)
- Insulator Grommet
- Differential Mount Bracket Assembly (LH, RH)
- Differential Mount Bracket (LH, RH)
- Insulator Grommet
- Cross Member Assembly
Fastener torques
| Torque | Nm (kgf·m) |
|---|---|
| T = 42 | (4.3; 31 ft-lb) |
| T = 69–83 | (7.0–8.5; 51–61 ft-lb) |
| T = 83 | (8.5; 61 ft-lb) |
| T = 49–59 | (5.0–6.0; 36–44 ft-lb) |
(verify printed p.227) — torque-to-fastener mapping (which of the 7 components/bolts each value applies to) was not recoverable from the scan; values are listed here without confirmed item association.
