Free Wheel Solenoid & Vacuum Hose System (4WD)

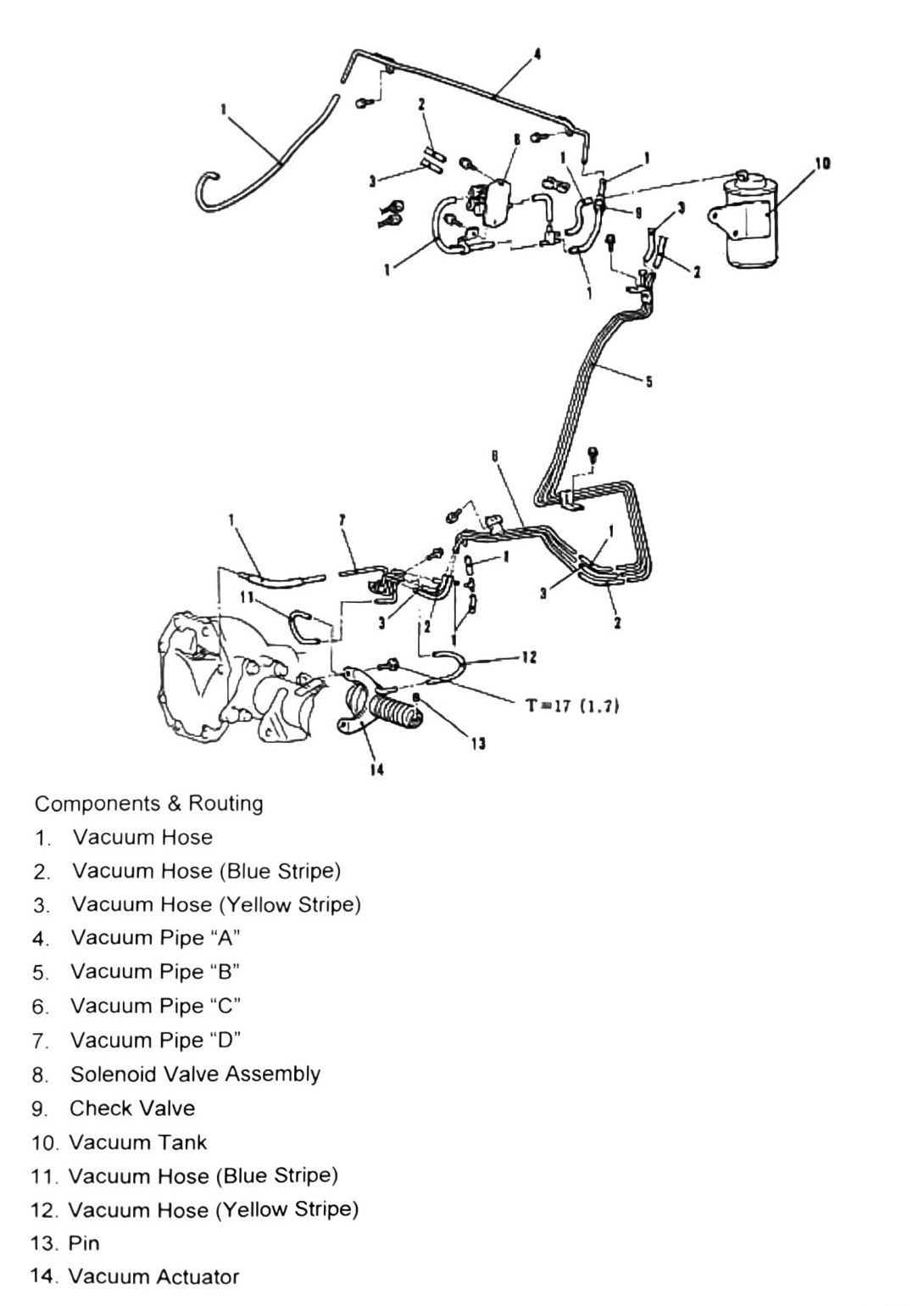

Components & routing

1. Vacuum Hose
2. Vacuum Hose (Blue Stripe)
3. Vacuum Hose (Yellow Stripe)
4. Vacuum Pipe “A”
5. Vacuum Pipe “B”
6. Vacuum Pipe “C”
7. Vacuum Pipe “D”
8. Solenoid Valve Assembly
9. Check Valve
10. Vacuum Tank
11. Vacuum Hose (Blue Stripe)
12. Vacuum Hose (Yellow Stripe)
13. Pin
14. Vacuum Actuator

Torque: T = 17 Nm (1.7 kgf·m; 150 in-lb).

Note: two hose color pairs are shown (Blue Stripe and Yellow Stripe), each appearing at two points in the routing diagram — confirm the actual routing path against the diagram rather than assuming a single straight run, since a solenoid/vacuum-tank/actuator circuit typically has both a supply and a signal leg per color.
