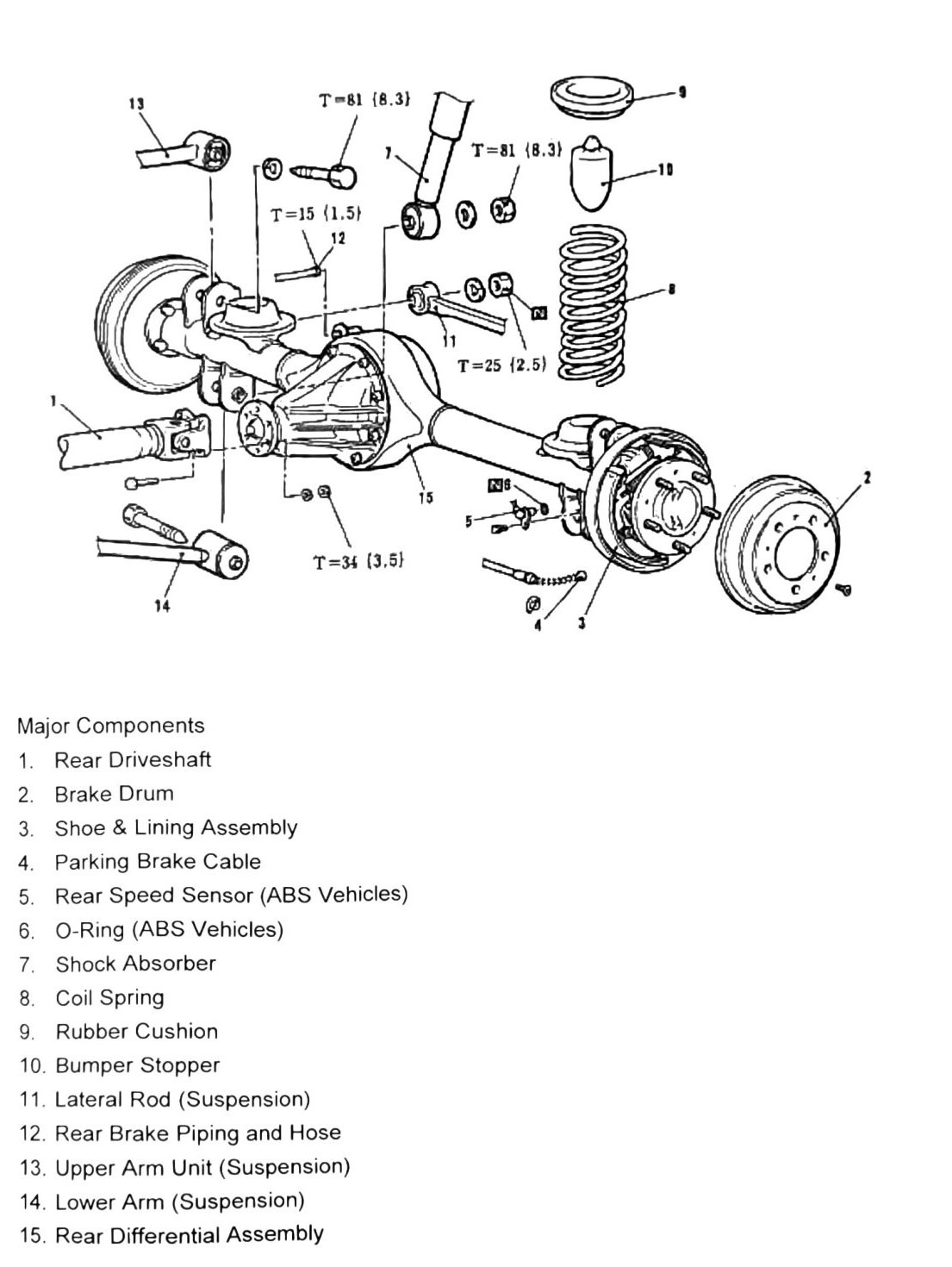

Rear Differential Assembly
Overview of the components surrounding the rear differential — suspension, brakes, and driveline items that must be addressed before pulling the carrier itself.
Major components
- Rear Driveshaft
- Brake Drum
- Shoe & Lining Assembly
- Parking Brake Cable
- Rear Speed Sensor (ABS vehicles)
- O-Ring (ABS vehicles)
- Shock Absorber
- Coil Spring
- Rubber Cushion
- Bumper Stopper
- Lateral Rod (Suspension)
- Rear Brake Piping and Hose
- Upper Arm Unit (Suspension)
- Lower Arm (Suspension)
- Rear Differential Assembly
Fastener torques
| Torque | Nm (kgf·m) |
|---|---|
| T = 15 | (1.5; 133 in-lb) |
| T = 25 | (2.5; 18 ft-lb) |
| T = 34 | (3.5; 25 ft-lb) |
| T = 81 | (8.3; 60 ft-lb) |
(verify printed p.233) — torque-to-fastener mapping (which of the 15 components each value applies to) was not recoverable from the scan; values are listed here without confirmed item association. T=81 (8.3) appears twice in the source, likely for two similar fasteners (e.g. both shock absorber mounting bolts).
