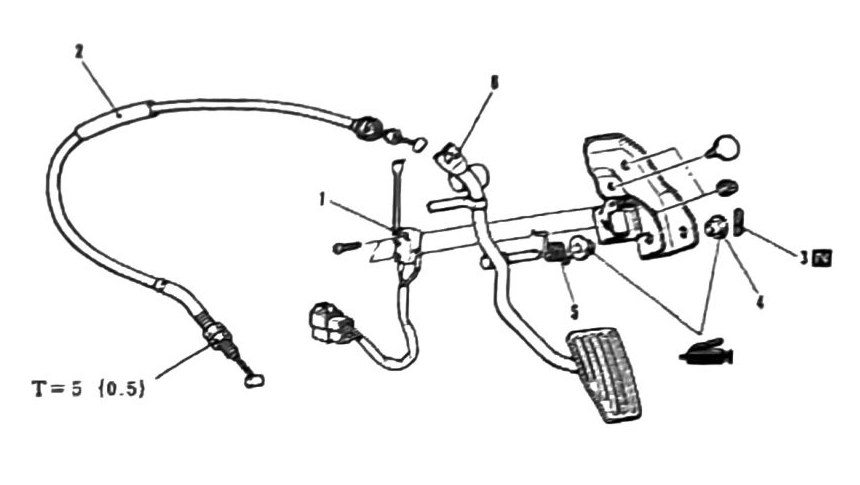

Accelerator Cable System

Components

1. A/C Cut Off Switch (SOHC-M/T)
2. Accelerator Cable

Accelerator pedal removal

3. Remove split pin.
4. Screw.
5. Return spring.
6. Pedal.
7. Install in reverse order.

Torque specification

• 5 N·m (0.5 kgf·m; 44 in-lb) — fastener assignment not confirmed (verify printed p.146).
