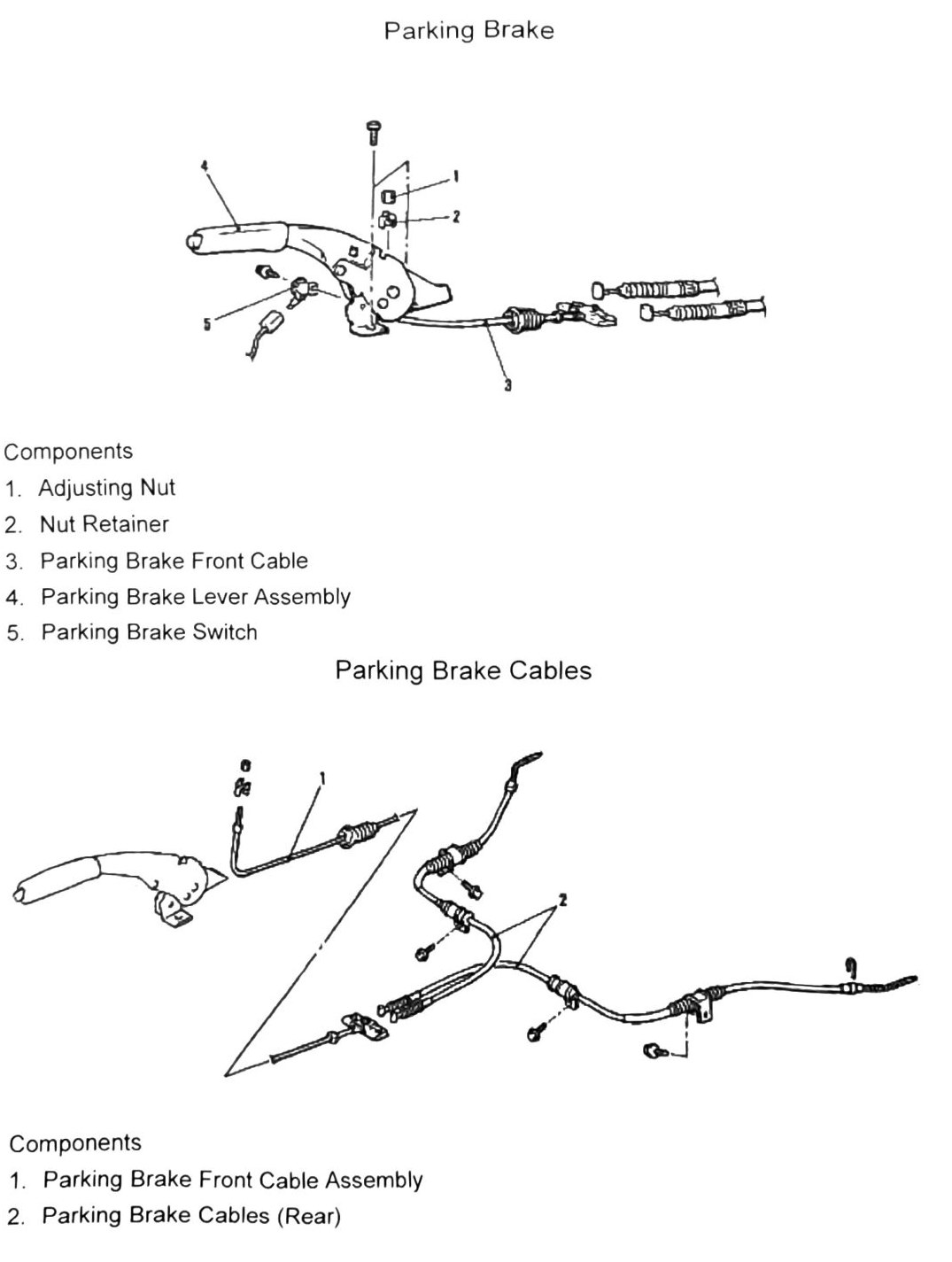

Parking Brake
Note on this entry: like several diagram-led pages in this manual, this page carries only component labels — no adjustment procedure, cable tension spec, or lever-travel spec survived the OCR pass.
Components
| Item | Description |
|---|---|
| 1 | Adjusting Nut |
| 2 | Nut Retainer |
| 3 | Parking Brake Front Cable |
| 4 | Parking Brake Lever Assembly |
| 5 | Parking Brake Switch |
Parking brake cables
| Item | Description |
|---|---|
| 1 | Parking Brake Front Cable Assembly |
| 2 | Parking Brake Cables (Rear) |
(verify printed p.284) — no adjustment lever-travel count or cable tension specification was recoverable from this scan; if a click-count or tension spec is needed, confirm against a clean copy of this page.
