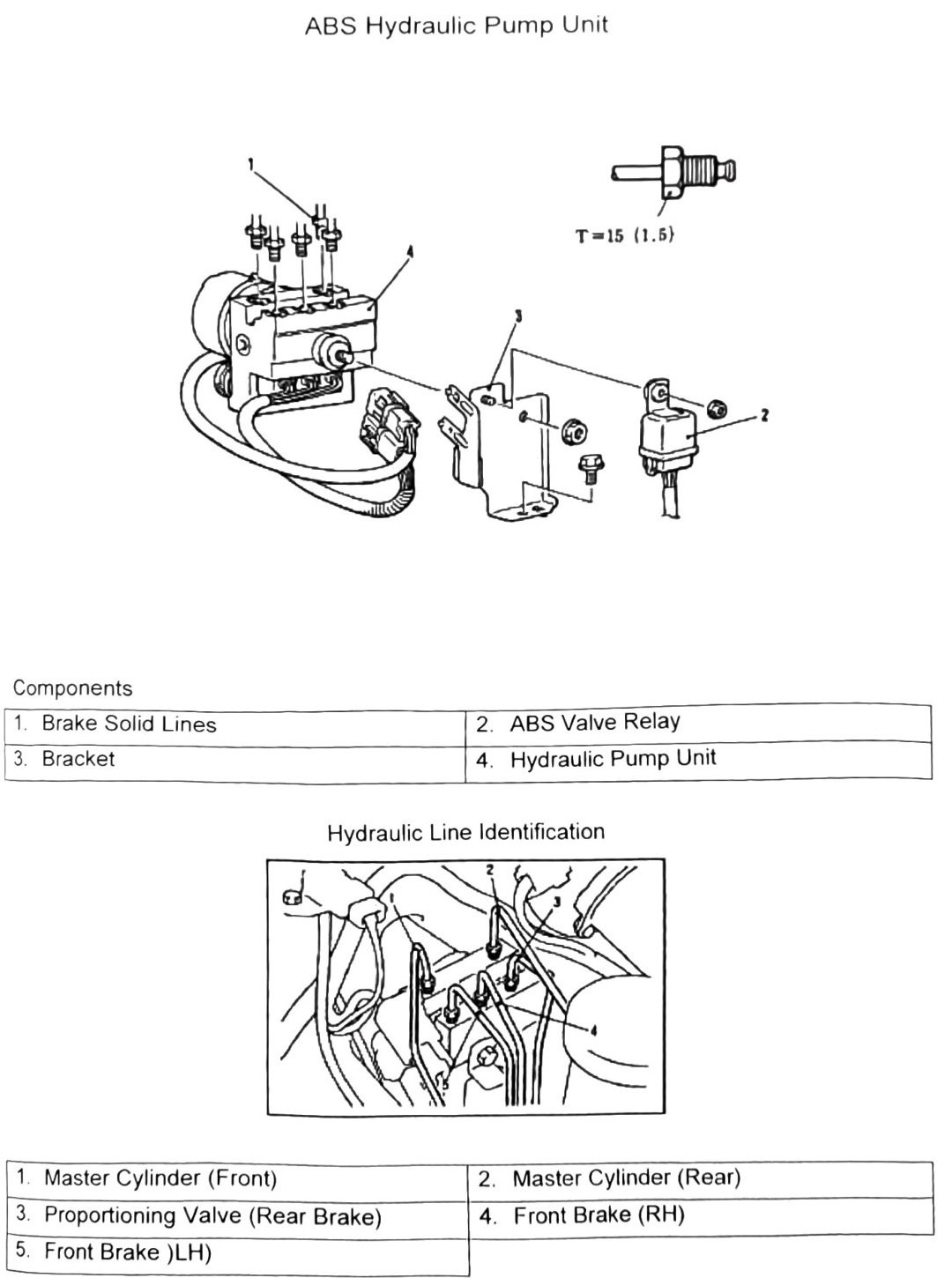

ABS Hydraulic Pump Unit

Components

Item	Description
1	Brake Solid Lines
2	ABS Valve Relay
3	Bracket
4	Hydraulic Pump Unit

Torque specification

Torque callout	N·m (kgf·m)	in-lb
T=15	(1.5)	133

Hydraulic line identification

Item	Description
1	Master Cylinder (Front)
2	Master Cylinder (Rear)
3	Proportioning Valve (Rear Brake)
4	Front Brake (RH)
5	Front Brake (LH)

(verify printed p.281) — this line-identification list reads inconsistently for a diagonal-split hydraulic circuit: it labels two “Master Cylinder” ports (Front/Rear) and a “Proportioning Valve (Rear Brake)” line, but only front-brake (LH/RH) lines and no explicit rear-brake (LH/RH) lines. Either a rear-brake line pair was lost to OCR, or “Master Cylinder (Rear)” and “Proportioning Valve (Rear Brake)” together stand in for the rear circuit. Confirm the full line routing against the source figure before use.
