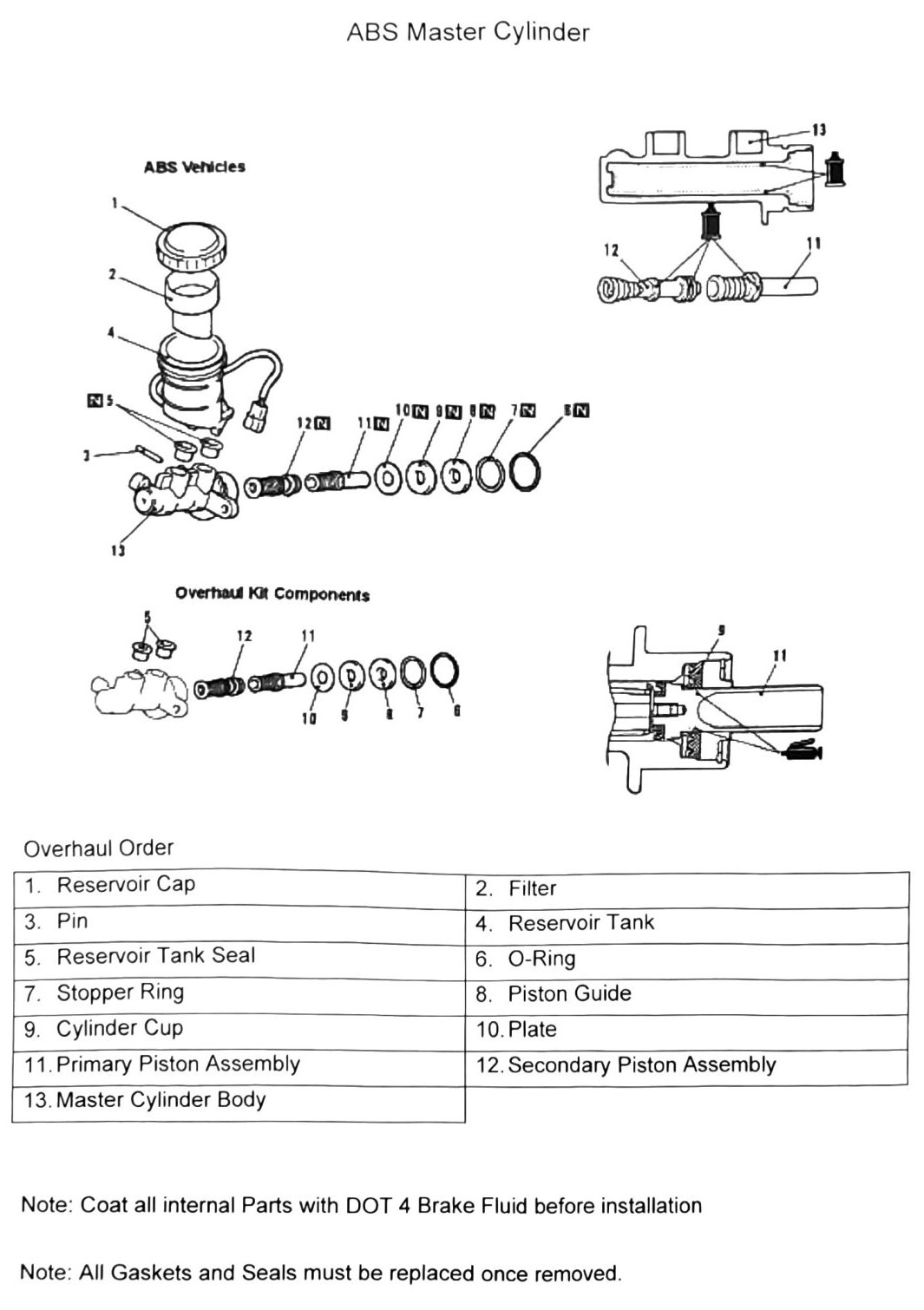

ABS Master Cylinder
ABS vehicles only. See the ABS Supplement (not present in this scan) for the full troubleshooting guide on the ABS system — this section covers overhaul/replacement of the master cylinder itself only.
Overhaul kit components (overhaul order)
| Item | Description |
|---|---|
| 1 | Reservoir Cap |
| 2 | Filter |
| 3 | Pin |
| 4 | Reservoir Tank |
| 5 | Reservoir Tank Seal |
| 6 | O-Ring |
| 7 | Stopper Ring |
| 8 | Piston Guide |
| 9 | Cylinder Cup |
| 10 | Plate |
| 11 | Primary Piston Assembly |
| 12 | Secondary Piston Assembly |
| 13 | Master Cylinder Body |
Note: coat all internal parts with DOT 4 brake fluid before installation.
Note: all gaskets and seals must be replaced once removed.
