Wheel Cylinder

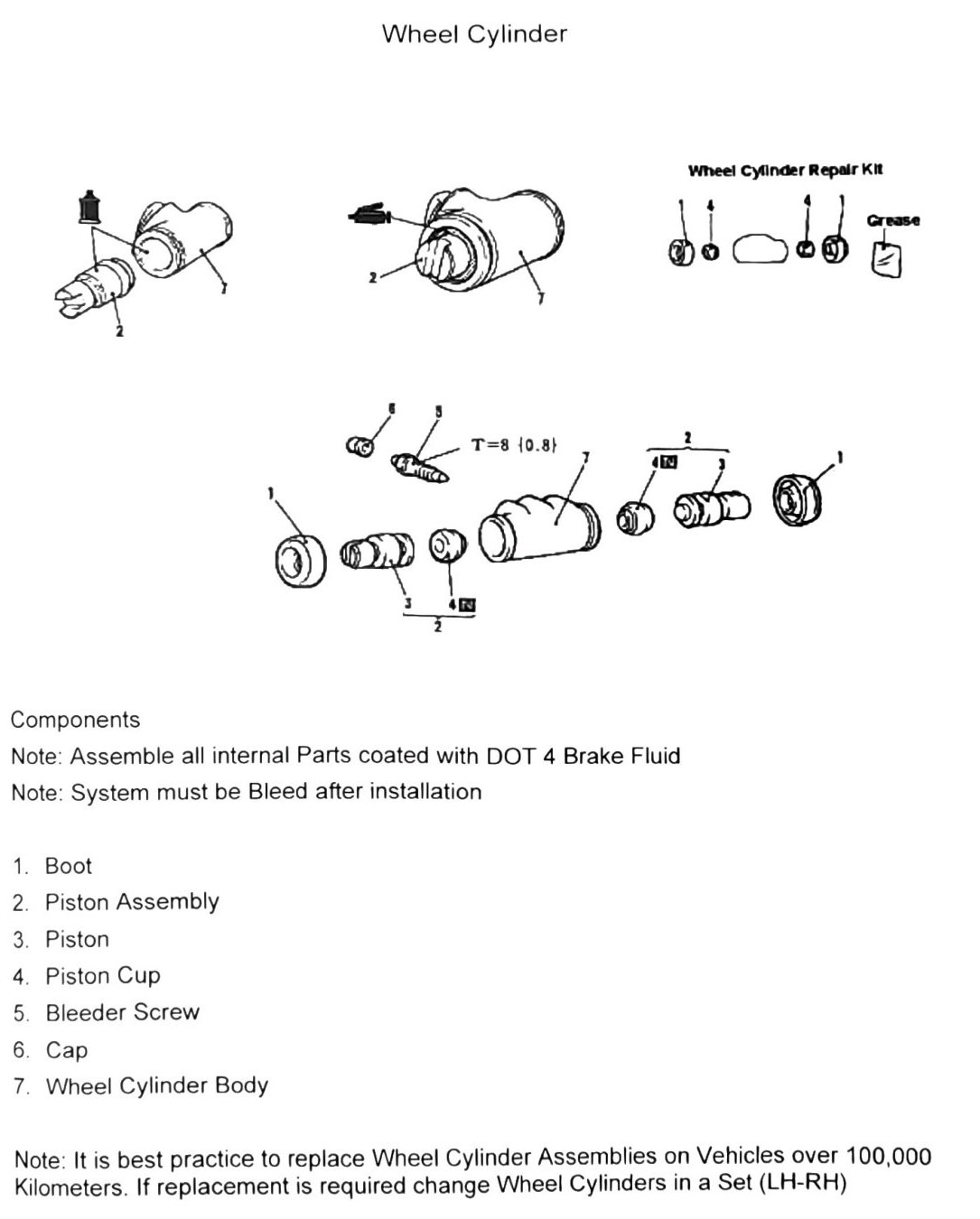

Components (wheel cylinder repair kit)
| Item | Description |
|---|---|
| 1 | Boot |
| 2 | Piston Assembly |
| 3 | Piston |
| 4 | Piston Cup |
| 5 | Bleeder Screw |
| 6 | Cap |
| 7 | Wheel Cylinder Body |
Note: assemble all internal parts coated with DOT 4 brake fluid.
Note: system must be bled after installation.
Note: it is best practice to replace wheel cylinder assemblies on vehicles over 100,000 kilometers (62,137 mi). If replacement is required, change wheel cylinders in a set (LH-RH).
Torque specification
| Torque callout | N·m (kgf·m) | in-lb |
|---|---|---|
| T=8 | (0.8) | 71 |
