Wheel,tire & cover
This EPC family contains 4 catalog variations for the VIN-confirmed Pajero Mini H56A catalog.

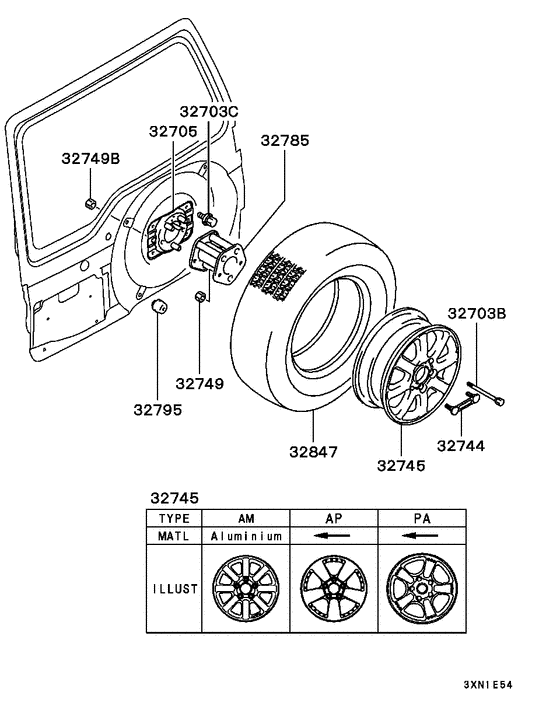

Diagram 7939144
Parts diagram group Wheel,tire & cover in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (19 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 32703B | MR180945 | BOLT, SPARE TIRE CARRIER | 12x50 | 3 | $6.16 |
| 32703B | MR267580 | BOLT, SPARE TIRE CARRIER | 12x145 | 2 | $12.45 |
| 32703C | MS240927 | BOLT, GEARSHIFT LINK | Washer assembled,8x20 | 4 | $1.64 |
| 32703C | MS240927 | BOLT, GEARSHIFT LINK | Washer assembled,8x20 | 5 | $1.64 |
| 32705 | MR105588 | BRACKET, SPARE TIRE | 1 | $92.50 | |
| 32705 | MR156830 | BRACKET, SPARE TIRE | 1 | $92.50 | |
| 32705 | MR259526 | BRACKET, SPARE TIRE | 1 | $93.24 | |
| 32744 | MR319440 | STOPPER, SPARE TIRE CARRIER | 1 | $22.94 | |
| 32745 | MR151737 | WHEEL, SPARE TIRE DISC | Type al,15x5j | 1 | $125.80 |
| 32745 | MR210621 | WHEEL, DISC | Type ap,al | 1 | — |
| 32745 | MR319730 | WHEEL, DISC | Type am,al,15x5j | 1 | — |
| 32749 | MR319443 | NUT, SPARE TIRE CARRIER | 12 | 2 | $2.66 |
| 32749B | MS440503 | NUT | Washer assembled,8 | 1 | $0.64 |
| 32785 | MR267579 | BRACKET, SPARE TIRE | 1 | $76.22 | |
| 32795 | MB020957 | DAMPER, HOOD | 4 | — | |
| 32795 | MB112092 | DAMPER, HOOD | 4 | — | |
| 32795 | MB270607 | DAMPER, HOOD | Rubber | 4 | $2.44 |
| 32795 | MB270606 | DAMPER, HOOD | 4 | $3.53 | |
| 32847 | MR151396 | TIRE | 175/80r15 | 5 | — |

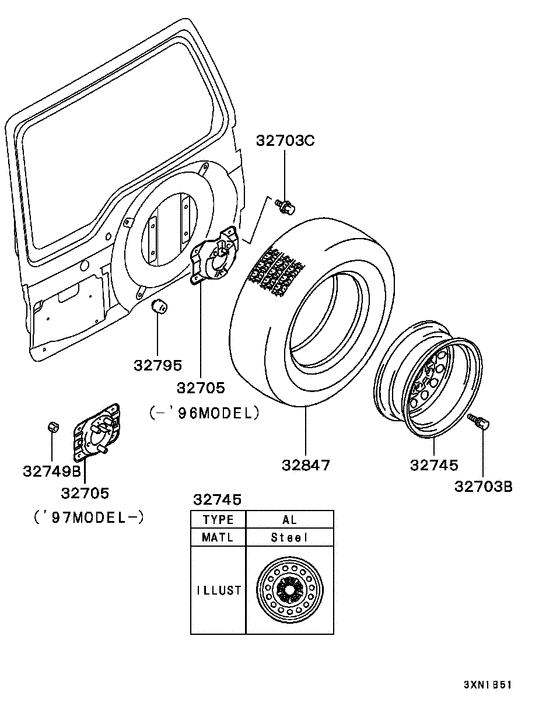

Diagram 7939145
Parts diagram group Wheel,tire & cover in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (16 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 32703B | MR180945 | BOLT, SPARE TIRE CARRIER | 12x50 | 3 | $6.16 |
| 32703B | MR267580 | BOLT, SPARE TIRE CARRIER | 12x145 | 2 | $12.45 |
| 32703C | MS240927 | BOLT, GEARSHIFT LINK | Washer assembled,8x20 | 4 | $1.64 |
| 32703C | MS240927 | BOLT, GEARSHIFT LINK | Washer assembled,8x20 | 5 | $1.64 |
| 32705 | MR105588 | BRACKET, SPARE TIRE | 1 | $92.50 | |
| 32705 | MR156830 | BRACKET, SPARE TIRE | 1 | $92.50 | |
| 32705 | MR259526 | BRACKET, SPARE TIRE | 1 | $93.24 | |
| 32745 | MR151737 | WHEEL, SPARE TIRE DISC | Type al,15x5j | 1 | $125.80 |
| 32745 | MR210621 | WHEEL, DISC | Type ap,al | 1 | — |
| 32745 | MR319730 | WHEEL, DISC | Type am,al,15x5j | 1 | — |
| 32749B | MS440503 | NUT | Washer assembled,8 | 1 | $0.64 |
| 32795 | MB020957 | DAMPER, HOOD | 4 | — | |
| 32795 | MB112092 | DAMPER, HOOD | 4 | — | |
| 32795 | MB270607 | DAMPER, HOOD | Rubber | 4 | $2.44 |
| 32795 | MB270606 | DAMPER, HOOD | 4 | $3.53 | |
| 32847 | MR151396 | TIRE | 175/80r15 | 5 | — |

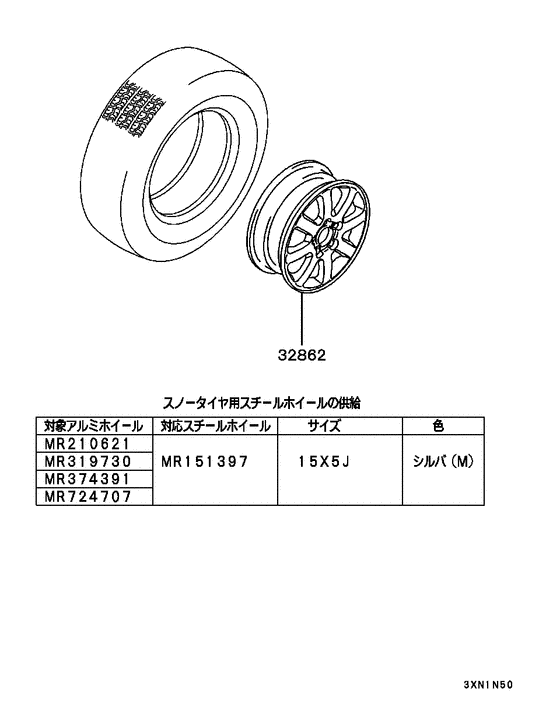

Diagram 7939146
Parts diagram group Wheel,tire & cover in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (2 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 32862 | MR210621 | WHEEL, DISC | Type ap,al | 4 | — |
| 32862 | MR319730 | WHEEL, DISC | Type am,al,15x5j | 4 | — |

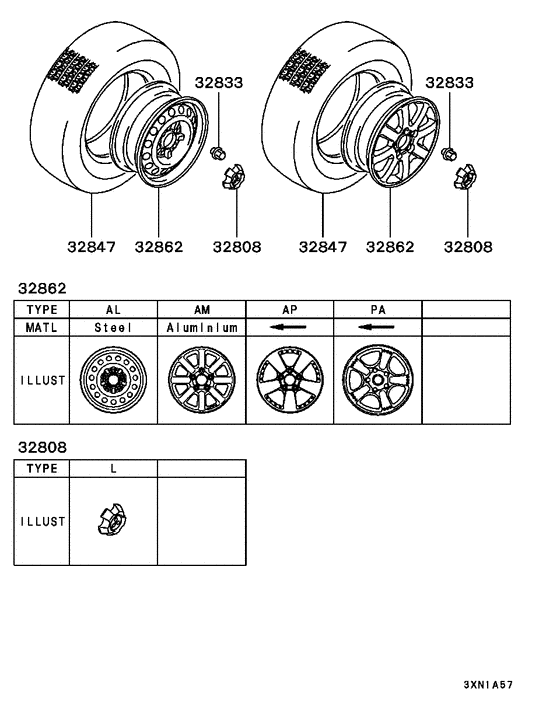

Diagram 7939147
Parts diagram group Wheel,tire & cover in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (8 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 32808 | MR150478 | CAP, DISC WHEEL, CTR (Black) | Type L | 4 | $32.15 |
| 32808 | MR267781 | CAP, DISC WHEEL, CTR | Type l | 4 | $22.94 |
| 32808 | MR319478 | CAP, DISC WHEEL, CTR | Type l | 4 | $27.36 |
| 32833 | MB057636 | NUT, WHEEL | Hub,w/cap,12 | 20 | — |
| 32833 | 3880A008 | NUT, WHEEL | W/cap | 20 | $2.73 |
| 32847 | MR151396 | TIRE | 175/80r15 | 5 | — |
| 32862 | MR210621 | WHEEL, DISC | Type ap,al | 4 | — |
| 32862 | MR319730 | WHEEL, DISC | Type am,al,15x5j | 4 | — |
