Transfer gear
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

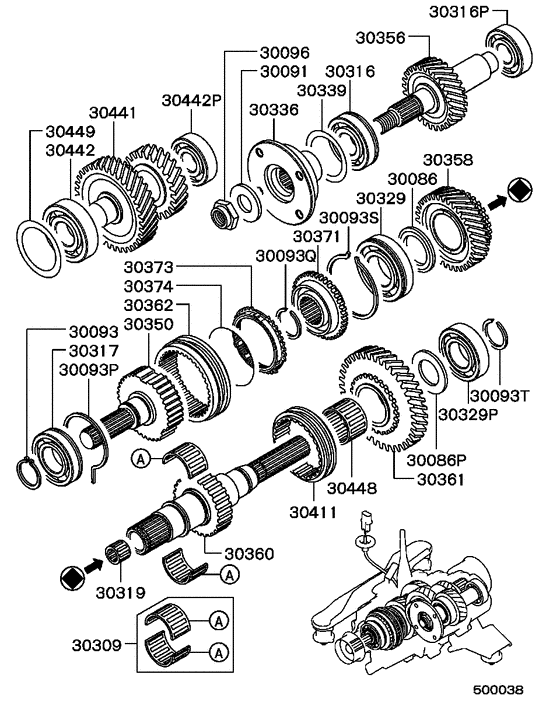

Diagram 7939124
Parts diagram group Transfer gear in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (53 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 30086 | MR176126 | SPACER, T/F | 4.2 | 1 | $5.18 |
| 30086P | MR176125 | SPACER, T/F | 3.3 | 1 | $5.18 |
| 30091 | MT203641 | WASHER, PROPELLER SHAFT | Plain,18.5 | 1 | $5.46 |
| 30093 | MF522019 | SNAP RING, FULL POWER PTO | 30 | 1 | $2.07 |
| 30093P | MR222196 | SNAP RING, T/F | 2.00 | 1 | $2.37 |
| 30093Q | MD701761 | SNAP RING, M/T POWER TRAIN | 2.15 | 1 | $1.50 |
| 30093Q | MD701762 | SNAP RING, M/T POWER TRAIN | 2.22 | 1 | $3.70 |
| 30093Q | MD701763 | SNAP RING, M/T POWER TRAIN | 2.29 | 1 | $3.69 |
| 30093Q | MD701764 | SNAP RING, M/T POWER TRAIN | 2.36 | 1 | $4.10 |
| 30093Q | MR145488 | SNAP RING, T/F | 2.08 | 1 | $4.14 |
| 30093Q | MR145489 | SNAP RING, T/F | 2.43 | 1 | $4.14 |
| 30093Q | MR145490 | SNAP RING, T/F | 2.50 | 1 | $4.14 |
| 30093S | MR145460 | SNAP RING, T/F | 2.00 | 1 | $6.66 |
| 30093T | MR165202 | SNAP RING, T/F | 1.87 | 1 | $3.70 |
| 30093T | MR165203 | SNAP RING, T/F | 1.92 | 1 | $3.70 |
| 30093T | MR165204 | SNAP RING, T/F | 1.97 | 1 | $3.70 |
| 30093T | MR165205 | SNAP RING, T/F | 2.02 | 1 | $3.70 |
| 30093T | MR165206 | SNAP RING, T/F | 2.07 | 1 | $3.70 |
| 30093T | MR165207 | SNAP RING, T/F | 2.12 | 1 | $3.70 |
| 30093T | MR165208 | SNAP RING, T/F | 2.17 | 1 | $3.70 |
| 30096 | MA143517 | NUT, PROPELLER SHAFT | Lock,18 | 1 | $3.80 |
| 30309 | MD718031 | BEARING, M/T 4TH SPEED GEAR | Needle,42 | 1 | — |
| 30309 | MD749902 | BEARING, M/T INPUT SHAFT | Needle,42 | 1 | $23.71 |
| 30309 | MD749902 | BEARING, M/T INPUT SHAFT | Needle,42 | 1 | $23.71 |
| 30316 | MD719784 | BEARING, T/F RR OUTPUT SHAFT | Ball,62 | 1 | $36.94 |
| 30316 | MR305561 | BEARING, T/F INPUT GEAR | Ball,62 | 1 | $29.60 |
| 30316P | MD702743 | BEARING, M/T COUNTERSHAFT EXTENSION HOUSING | Ball,56 | 1 | — |
| 30316P | MD703798 | BEARING, M/T COUNTERSHAFT EXTENSION HOUSING | Ball,56 | 1 | $19.81 |
| 30317 | MR222195 | BEARING, T/F FR OUTPUT SHAFT | Ball,62 | 1 | $29.60 |
| 30319 | MD718368 | BEARING, M/T MAIN SHAFT PILOT | Needle,21 | 1 | $17.73 |
| 30329 | MR165251 | BEARING, T/F RR OUTPUT SHAFT | Ball,72 | 1 | $51.80 |
| 30329 | MR276128 | BEARING, T/F RR OUTPUT SHAFT | Ball,72 | 1 | $85.84 |
| 30329P | MB919261 | BEARING, T/F RR OUTPUT SHAFT | Ball,62 | 1 | $29.60 |
| 30336 | MR222750 | FLANGE, T/F DRIVE COMPANION, FR | 1 | $57.72 | |
| 30339 | MR196459 | SPRING, T/F OUTPUT SHAFT BEARING WAVE | 1 | $3.85 | |
| 30350 | MR145466 | SHAFT, T/F FR OUTPUT | 1 | $195.36 | |
| 30356 | MR222483 | GEAR, T/F INPUT | 1 | $204.24 | |
| 30356 | MR263299 | GEAR, T/F INPUT | 1 | $136.90 | |
| 30358 | MR222485 | GEAR, T/F HIGH SPEED | N=38 | 1 | $81.40 |
| 30360 | MR176701 | SHAFT, T/F RR OUTPUT | 1 | $279.72 | |
| 30361 | MR222486 | GEAR, T/F LOW SPEED | N=42 | 1 | $132.46 |
| 30362 | MR145473 | SLEEVE, T/F 2WD & 4WD SYNCH | 1 | $125.06 | |
| 30371 | MR145472 | HUB, T/F 2WD & 4WD SYNCH | 1 | $93.24 | |
| 30373 | MR195471 | RING, T/F SYNCH | 1 | $53.28 | |
| 30374 | MD743652 | SPRING, M/T SYNCH KEY | 1 | $4.51 | |
| 30411 | MR195554 | SLEEVE, T/F 2WD & 4WD CLUTCH | 1 | $87.32 | |
| 30411 | MR290544 | SLEEVE, T/F 2WD & 4WD CLUTCH | 1 | $58.46 | |
| 30441 | MR222484 | GEAR, T/F INTERMEDIATE | 1 | $232.36 | |
| 30442 | MR222994 | BEARING, T/F INTERMEDIATE | Ball,68 | 1 | $27.36 |
| 30442P | MD702743 | BEARING, M/T COUNTERSHAFT EXTENSION HOUSING | Ball,56 | 1 | — |
| 30442P | MD703798 | BEARING, M/T COUNTERSHAFT EXTENSION HOUSING | Ball,56 | 1 | $19.81 |
| 30448 | MD718033 | BEARING, M/T INTERMEDIATE GEAR | Needle,42 | 1 | $15.05 |
| 30449 | MR196460 | SPRING, T/F OUTPUT SHAFT BEARING WAVE | 1 | $3.85 |
