Transfer floor shift control
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

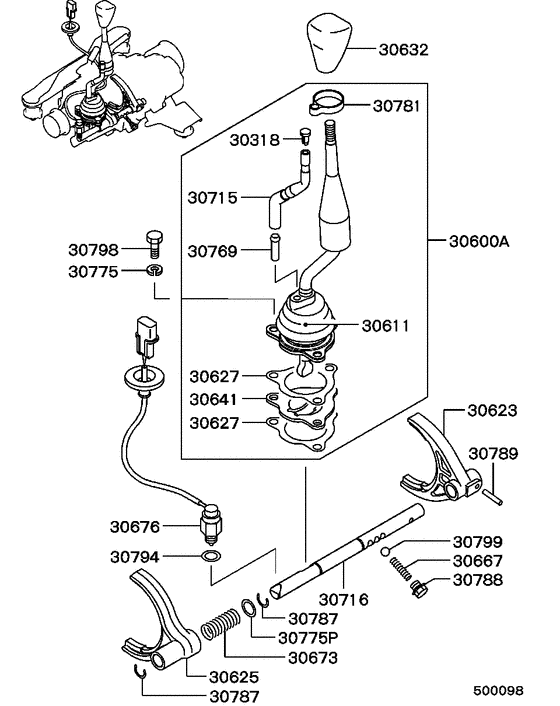

Diagram 7939125
Parts diagram group Transfer floor shift control in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (30 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 30318 | MR222149 | CAP, T/F BREATHER | 1 | $5.77 | |
| 30600A | MR145483 | LEVER, T/F GEARSHIFT RAIL | 1 | $183.52 | |
| 30600A | MR263853 | LEVER ASSY, T/F GEARSHIFT | 1 | $123.12 | |
| 30600A | MR305328 | LEVER ASSY, T/F GEARSHIFT | 1 | $88.80 | |
| 30611 | MR145491 | COVER, M/T GEARSHIFT LEVER SPRING | 1 | $3.40 | |
| 30623 | MR195555 | FORK, T/F GEARSHIFT 2WD & 4WD | 1 | $61.42 | |
| 30625 | MR145480 | FORK, T/F GEARSHIFT 2WD & 4WD | 1 | $71.78 | |
| 30627 | MB937338 | GASKET, T/F GEARSHIFT HOUSING COVER | 2 | $2.46 | |
| 30632 | MR166173 | KNOB, T/F GEARSHIFT LEVER | 1 | $36.26 | |
| 30641 | MR145484 | PLATE, T/F GEARSHIFT LEVER STOPPER | 1 | $16.28 | |
| 30667 | MR166640 | SPRING, T/F GEARSHIFT POPPET | 1 | $2.81 | |
| 30667 | MR276196 | SPRING, T/F GEARSHIFT POPPET | 1 | $1.78 | |
| 30673 | MR145475 | SPRING, T/F 2WD & 4WD SHIFT FORK RETURN | 1 | $1.63 | |
| 30676 | MR176638 | SWITCH, T/F GEARSHIFT 4WD LAMP | 1 | $33.52 | |
| 30715 | MR222148 | HOSE, T/F BREATHER | 1 | $5.77 | |
| 30716 | MR145481 | RAIL, T/F H-L GEARSHIFT | 1 | $64.38 | |
| 30716 | MR305341 | RAIL, T/F GEARSHIFT | 1 | $17.02 | |
| 30769 | MD024599 | NIPPLE, ROCKER COVER | 8 | 1 | $5.03 |
| 30775 | MF450405 | WASHER, CYLINDER HEAD | Spring,8 | 3 | $0.35 |
| 30775P | MR165250 | WASHER, T/F GEARSHIFT LINK | 14.5 | 1 | $1.48 |
| 30781 | MB249339 | BAND, ENG BREATHER | L=169.5 | 1 | $3.83 |
| 30781 | MR246790 | BAND, T/F GEARSHIFT LINK | 1 | $2.96 | |
| 30787 | MR145474 | SNAP RING, T/F GEARSHIFT LINK | 12 | 2 | $1.04 |
| 30788 | MD716936 | BOLT, M/T GEARSHIFT EQUIP | Flange,10x8 | 1 | $3.26 |
| 30788 | 2940A009 | BOLT, M/T GEARSHIFT EQUIP | Flange,10x8 | 1 | $1.18 |
| 30788 | 2940A015 | BOLT, M/T GEARSHIFT EQUIP | 1 | $0.55 | |
| 30789 | MF472573 | SPRING PIN, TIMING BELT TRAIN | 5x25 | 1 | $1.27 |
| 30794 | MF660034 | GASKET, CYLINDER BLOCK | D=12 | 1 | $0.21 |
| 30798 | MR196487 | BOLT, M/T GEARSHIFT EQUIP | Reamer,8x22 | 3 | $1.78 |
| 30799 | MF540010 | BALL, CAMSHAFT | 5/16 | 1 | $1.13 |
