Transfer case
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

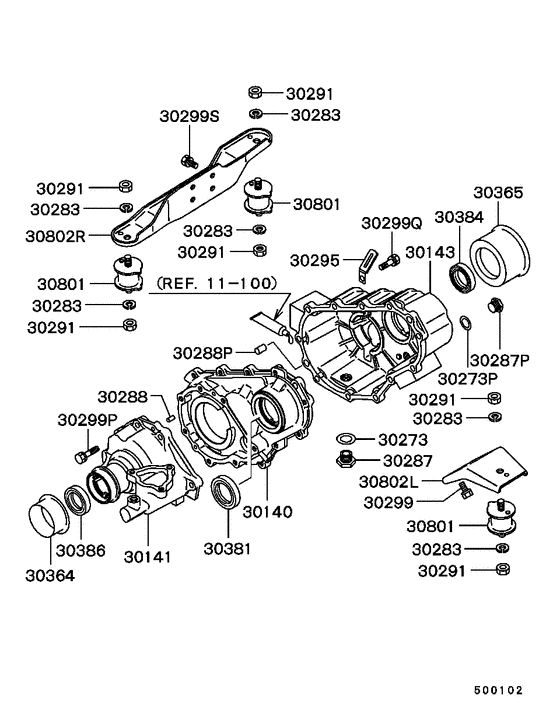

Diagram 7939123
Parts diagram group Transfer case in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (27 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 30140 | MR176121 | CASE, T/F GEAR | 1 | $278.24 | |
| 30141 | MR176119 | CASE, T/F GEAR, FR | 1 | $263.44 | |
| 30143 | MR176122 | CASE, T/F GEAR, RR | 1 | $892.53 | |
| 30273 | MD000312 | GASKET, PLUG | D=18.2 | 1 | $1.37 |
| 30273P | MF660036 | GASKET, ACCEL CONTROL EQUIP | D=16 | 1 | $0.84 |
| 30283 | MF450406 | WASHER | Spring,10 | 6 | $0.39 |
| 30287 | MB001293 | PLUG, M/T CASE | Screw,magnet,18 | 1 | — |
| 30287 | MB001265 | PLUG KIT, RR AXLE HOUSING | 1 | $6.57 | |
| 30287P | M0001300 | PLUG, SPARE FUEL TANK | Screw,d=16 | 1 | — |
| 30288 | MF472403 | PIN, CYLINDER BLOCK | Dowel,6x14 | 2 | $2.79 |
| 30288P | MF472405 | PIN, CYLINDER BLOCK | Dowel,10x20 | 2 | $2.26 |
| 30291 | MF430006 | NUT | 10 | 6 | $1.54 |
| 30295 | MS470057 | CLIP, ENG BREATHER | L=40 | 2 | $3.69 |
| 30299 | MF241252 | BOLT, CARB | Washer assembled,8x18 | 4 | $0.86 |
| 30299P | MF241259 | BOLT, CRANKCASE | Washer assembled,8x35 | 7 | $1.09 |
| 30299Q | MF241256 | BOLT, ENG OIL PAN | Washer assembled,8x28 | 11 | $3.28 |
| 30299S | MF241254 | BOLT, FLYWHEEL HOUSING | Washer assembled,8x22 | 4 | $1.01 |
| 30364 | MD742406 | GUARD, T/F EXTENSION HOUSING DUST SEAL | 1 | $3.70 | |
| 30365 | MD701849 | GUARD, M/T EXTENSION HOUSING DUST SEAL | 1 | $11.84 | |
| 30381 | MR222265 | OIL SEAL, T/F INPUT GEAR | 1 | $5.83 | |
| 30384 | MD701430 | OIL SEAL, M/T CASE EXTENSION HOUSING, RR | 1 | — | |
| 30384 | MR983368 | OIL SEAL, M/T CASE EXTENSION HOUSING, RR | 1 | $4.66 | |
| 30386 | MD701430 | OIL SEAL, M/T CASE EXTENSION HOUSING, RR | 1 | — | |
| 30386 | MR983368 | OIL SEAL, M/T CASE EXTENSION HOUSING, RR | 1 | $4.66 | |
| 30801 | MR165378 | CUSHION, T/F MOUNTING | 3 | $32.83 | |
| 30802L | MR176827 | BRACKET, T/F MOUNTING, LH | 1 | $12.28 | |
| 30802R | MR176828 | BRACKET, T/F MOUNTING, RH | 1 | $29.60 |
