Rear axle housing & shaft
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

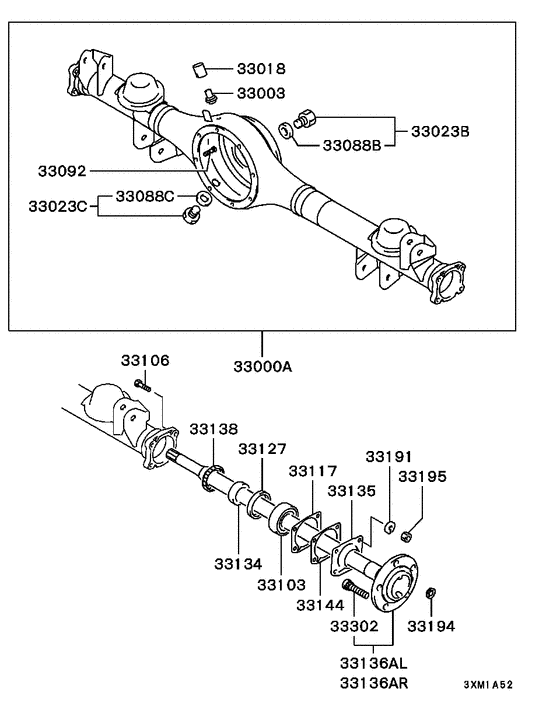

Diagram 7939139
Parts diagram group Rear axle housing & shaft in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (28 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 33000A | MR179969 | HOUSING ASSY, RR AXLE | 1 | $656.66 | |
| 33000A | MR179970 | HOUSING ASSY, RR AXLE | 1 | $656.66 | |
| 33003 | MB393186 | PLUG, RR AXLE HOUSING | Vent | 1 | $5.92 |
| 33018 | MB393232 | COVER, RR AXLE HOUSING BREATHER PLUG | 1 | $5.20 | |
| 33023B | MB001261 | PLUG KIT, FR AXLE HOUSING | 1 | $3.82 | |
| 33023C | MB569390 | PLUG KIT, FR DIFF | 1 | $5.97 | |
| 33088B | MF660066 | GASKET, PLUG | D=16 | 1 | $1.15 |
| 33088C | MB001294 | Gasket, Drain Plug | D=18.2 | 1 | $1.15 |
| 33092 | MB073057 | BOLT, RR AXLE HOUSING | 8x29 | 8 | $4.44 |
| 33103 | MR165476 | BEARING, RR AXLE SHAFT | Ball,72x22-35 | 2 | $54.72 |
| 33106 | MR166496 | BOLT, RR AXLE SHAFT | 8x28 | 8 | $1.78 |
| 33117 | MA151085 | GASKET, RR AXLE SHAFT | 1 | $2.33 | |
| 33127 | MA181498 | OIL SEAL, RR AXLE SHAFT, INR | 2 | $6.32 | |
| 33127 | MR196784 | OIL SEAL, RR AXLE SHAFT | 2 | $10.34 | |
| 33134 | MA125987 | RETAINER, RR AXLE SHAFT BEARING, INR | 2 | $20.36 | |
| 33135 | MA151215 | RETAINER, RR AXLE SHAFT BEARING, OTR | 2 | $15.54 | |
| 33136AL | MR232503 | SHAFT ASSY, RR AXLE | 1 | — | |
| 33136AL | MR232505 | SHAFT ASSY, RR AXLE | 1 | — | |
| 33136AL | MR232505 | SHAFT ASSY, RR AXLE | 1 | — | |
| 33136AR | MR232504 | SHAFT ASSY, RR AXLE | 1 | $190.92 | |
| 33136AR | MR232506 | SHAFT ASSY, RR AXLE | 1 | $190.92 | |
| 33138 | MR307325 | ROTOR, RR AXLE SHAFT | 2 | $37.00 | |
| 33144 | MA161920 | SHIM, RR AXLE SHAFT | 0.3 | 1 | $3.85 |
| 33191 | MS450042 | WASHER, PROPELLER SHAFT | Spring,8 | 8 | $2.46 |
| 33194 | MB393369 | PLUG, RR AXLE SHAFT | Rubber,22 | 2 | $7.55 |
| 33195 | MF430121 | NUT, CYLINDER HEAD | 8 | 8 | $0.72 |
| 33302 | MB303869 | BOLT, FR WHEEL HUB | 12x45 | 10 | — |
| 33302 | MB911495 | BOLT, FR WHEEL HUB | 12x43 | 10 | $2.15 |
