Rear axle differential
This EPC family contains 2 catalog variations for the VIN-confirmed Pajero Mini H56A catalog.

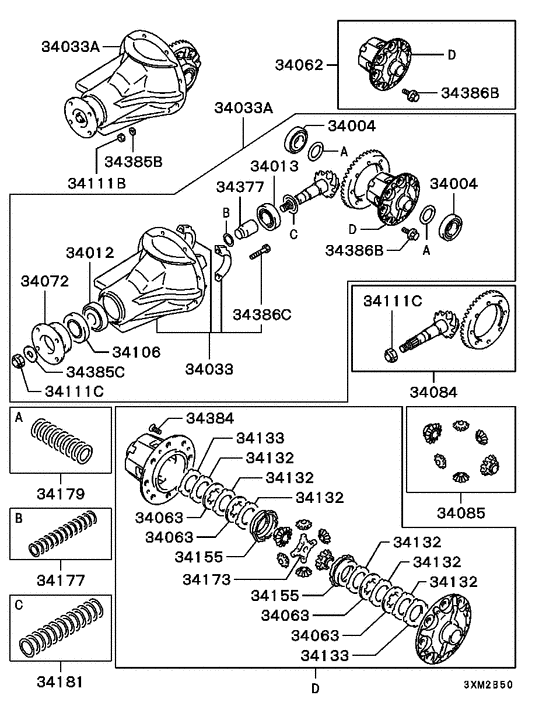

Diagram 7939140
Parts diagram group Rear axle differential in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (20 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 34004 | MB393957 | BEARING, RR DIFF CASE | Taper r0ller,72.00x18.25-35.00 | 2 | $16.59 |
| 34012 | MB393955 | BEARING, RR DIFF DRIVE PINION, FR | Taper roller,62.00x18.25-25.00 | 1 | $20.44 |
| 34013 | MB393956 | BEARING, RR DIFF DRIVE PINION, RR | Taper roller,72.00x24.25-35.00 | 1 | $28.14 |
| 34033 | MR222333 | CARRIER, RR DIFF | 1 | $388.75 | |
| 34033A | MR222341 | CARRIER ASSY, RR DIFF | 5.111 | 1 | $1526.40 |
| 34072 | MB393977 | FLANGE, RR DIFF COMPANION | 1 | $96.20 | |
| 34084 | MR273027 | GEAR KIT, RR DIFF FINAL DRIVE | 5.111 | 1 | $634.82 |
| 34085 | MB185380 | GEAR KIT, RR DIFF CASE | 1 | $239.76 | |
| 34106 | MB393929 | OIL SEAL, RR DIFF DRIVE PINION | 1 | $8.21 | |
| 34111B | MF430121 | NUT, CYLINDER HEAD | 8 | 8 | $0.72 |
| 34111C | MA143517 | NUT, PROPELLER SHAFT | Lock,18 | 1 | $3.80 |
| 34177 | MB185360 | SHIM SET, RR DIFF DRIVE PINION, FR | 1 | $75.92 | |
| 34179 | MB185370 | SHIM SET, RR DIFF SIDE BEARING | 2 | $9.71 | |
| 34181 | MB185350 | SHIM SET, RR DIFF DRIVE PINION, RR | 1 | $53.35 | |
| 34377 | MA180841 | SPACER, RR DIFF PINION BEARING | 57.72 | 1 | $12.15 |
| 34377 | MB044434 | SPACER, RR DIFF PINION BEARING | 57.08 | 1 | $11.76 |
| 34385B | MS450042 | WASHER, PROPELLER SHAFT | Spring,8 | 8 | $2.46 |
| 34385C | MT203641 | WASHER, PROPELLER SHAFT | Plain,18.5 | 1 | $5.46 |
| 34386B | MB092220 | BOLT, M/T POWER TRAIN | Flange,10x17.5 | 8 | $2.75 |
| 34386C | MS240915 | BOLT, FR DIFF | Washer assembled,10x50 | 4 | $2.52 |

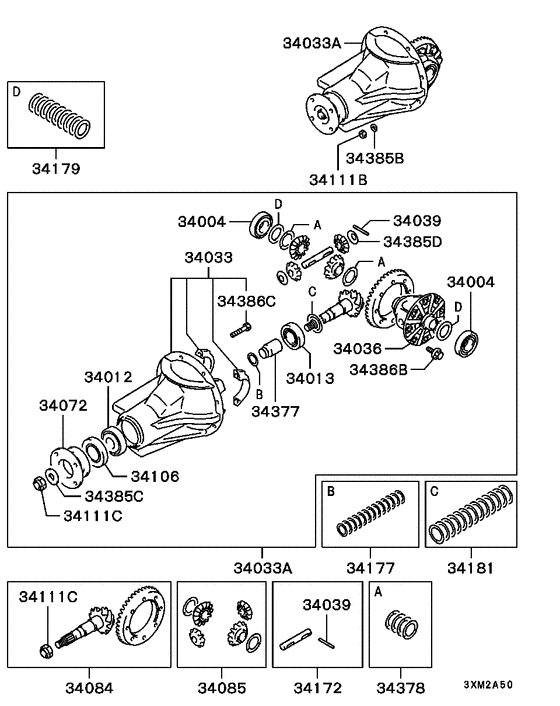

Diagram 7939142
Parts diagram group Rear axle differential in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (25 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 34004 | MB393957 | BEARING, RR DIFF CASE | Taper r0ller,72.00x18.25-35.00 | 2 | $16.59 |
| 34012 | MB393955 | BEARING, RR DIFF DRIVE PINION, FR | Taper roller,62.00x18.25-25.00 | 1 | $20.44 |
| 34013 | MB393956 | BEARING, RR DIFF DRIVE PINION, RR | Taper roller,72.00x24.25-35.00 | 1 | $28.14 |
| 34033 | MR222333 | CARRIER, RR DIFF | 1 | $388.75 | |
| 34033A | MR222341 | CARRIER ASSY, RR DIFF | 5.111 | 1 | $1526.40 |
| 34036 | MB001026 | CASE, RR DIFF | 1 | $369.82 | |
| 34039 | MB001045 | PIN, FR AXLE | Pin lock,5x54 | 1 | $3.55 |
| 34072 | MB393977 | FLANGE, RR DIFF COMPANION | 1 | $96.20 | |
| 34084 | MR273027 | GEAR KIT, RR DIFF FINAL DRIVE | 5.111 | 1 | $634.82 |
| 34085 | MB185380 | GEAR KIT, RR DIFF CASE | 1 | $239.76 | |
| 34106 | MB393929 | OIL SEAL, RR DIFF DRIVE PINION | 1 | $8.21 | |
| 34111B | MF430121 | NUT, CYLINDER HEAD | 8 | 8 | $0.72 |
| 34111C | MA143517 | NUT, PROPELLER SHAFT | Lock,18 | 1 | $3.80 |
| 34172 | MB283146 | SHAFT KIT, RR DIFF PINION | 1 | $34.78 | |
| 34177 | MB185360 | SHIM SET, RR DIFF DRIVE PINION, FR | 1 | $75.92 | |
| 34179 | MB185370 | SHIM SET, RR DIFF SIDE BEARING | 2 | $9.71 | |
| 34181 | MB185350 | SHIM SET, RR DIFF DRIVE PINION, RR | 1 | $53.35 | |
| 34377 | MA180841 | SPACER, RR DIFF PINION BEARING | 57.72 | 1 | $12.15 |
| 34377 | MB044434 | SPACER, RR DIFF PINION BEARING | 57.08 | 1 | $11.76 |
| 34378 | MB185340 | SPACER SET, M/T DIFF SIDE GEAR | 2 | $31.08 | |
| 34385B | MS450042 | WASHER, PROPELLER SHAFT | Spring,8 | 8 | $2.46 |
| 34385C | MT203641 | WASHER, PROPELLER SHAFT | Plain,18.5 | 1 | $5.46 |
| 34385D | MA145188 | WASHER, M/T POWER TRAIN | Spring,17.3 | 2 | $3.69 |
| 34386B | MB092220 | BOLT, M/T POWER TRAIN | Flange,10x17.5 | 8 | $2.75 |
| 34386C | MS240915 | BOLT, FR DIFF | Washer assembled,10x50 | 4 | $2.52 |
