Propeller shaft
This EPC family contains 3 catalog variations for the VIN-confirmed Pajero Mini H56A catalog.

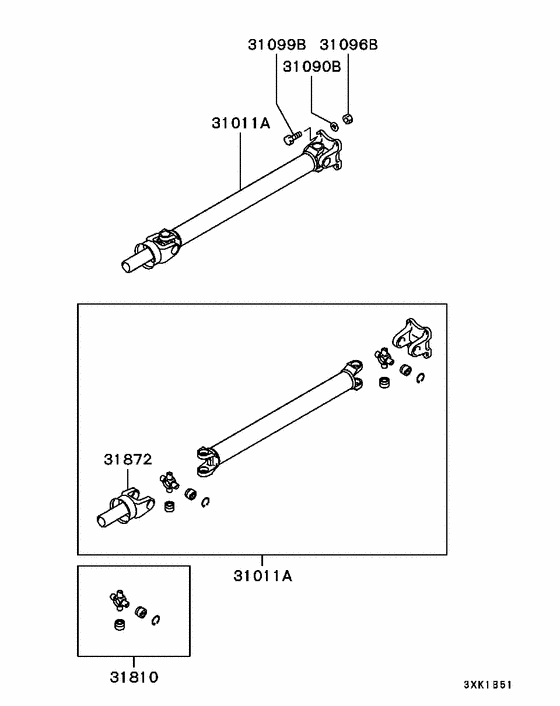

Diagram 7939126
Parts diagram group Propeller shaft in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (7 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 31011A | MR176003 | SHAFT ASSY, PROPELLER, RR | 1 | $426.61 | |
| 31011A | MR453285 | SHAFT ASSY, PROPELLER, RR | 1 | $423.70 | |
| 31090B | MF450405 | WASHER, CYLINDER HEAD | Spring,8 | 12 | $0.35 |
| 31096B | MB154075 | NUT, PROPELLER SHAFT | 8 | 12 | $3.56 |
| 31099B | MB000938 | BOLT, PROPELLER SHAFT | 8x25 | 12 | $1.89 |
| 31810 | MR232501 | SPIDER KIT, PROPELLER SHAFT UNIVERSAL JOINT | 6 | $87.32 | |
| 31872 | MR176021 | YOKE, PROPELLER SHAFT SLEEVE | 1 | $65.86 |

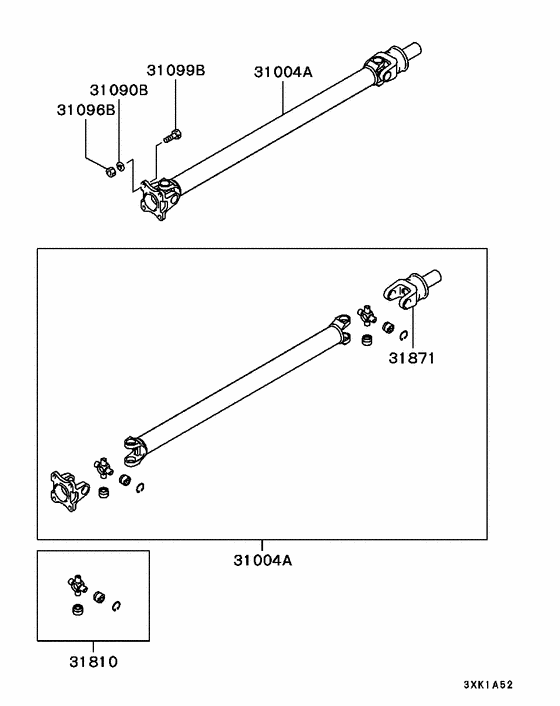

Diagram 7939128
Parts diagram group Propeller shaft in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (7 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 31004A | MR176001 | SHAFT ASSY, PROPELLER | 1 | $477.57 | |
| 31004A | MR453284 | SHAFT ASSY, PROPELLER, FR | 1 | $477.57 | |
| 31090B | MF450405 | WASHER, CYLINDER HEAD | Spring,8 | 12 | $0.35 |
| 31096B | MB154075 | NUT, PROPELLER SHAFT | 8 | 12 | $3.56 |
| 31099B | MB000938 | BOLT, PROPELLER SHAFT | 8x25 | 12 | $1.89 |
| 31810 | MR232501 | SPIDER KIT, PROPELLER SHAFT UNIVERSAL JOINT | 6 | $87.32 | |
| 31871 | MR176020 | YOKE, PROPELLER SHAFT SLEEVE, FR | 1 | — |

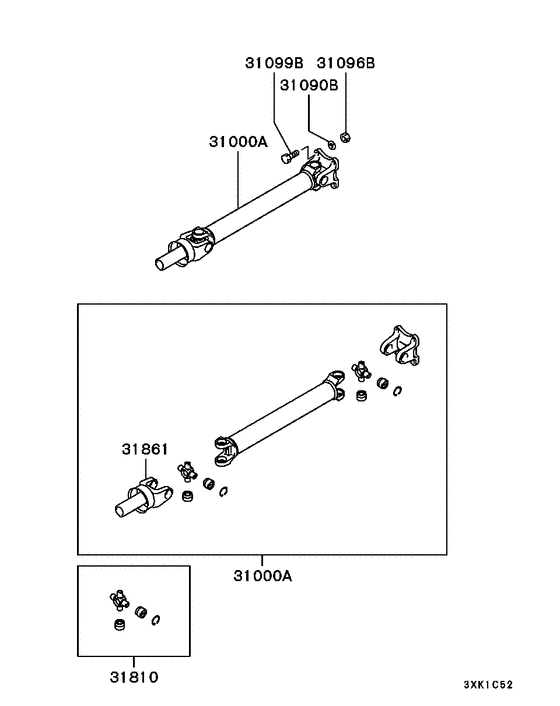

Diagram 7939129
Parts diagram group Propeller shaft in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (7 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 31000A | MR195472 | SHAFT ASSY, PROPELLER | 1 | $426.61 | |
| 31000A | MR453288 | SHAFT ASSY, PROPELLER | 1 | $413.50 | |
| 31090B | MF450405 | WASHER, CYLINDER HEAD | Spring,8 | 12 | $0.35 |
| 31096B | MB154075 | NUT, PROPELLER SHAFT | 8 | 12 | $3.56 |
| 31099B | MB000938 | BOLT, PROPELLER SHAFT | 8x25 | 12 | $1.89 |
| 31810 | MR232501 | SPIDER KIT, PROPELLER SHAFT UNIVERSAL JOINT | 6 | $87.32 | |
| 31861 | MR176021 | YOKE, PROPELLER SHAFT SLEEVE | 1 | $65.86 |
