Front axle hub & drum
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

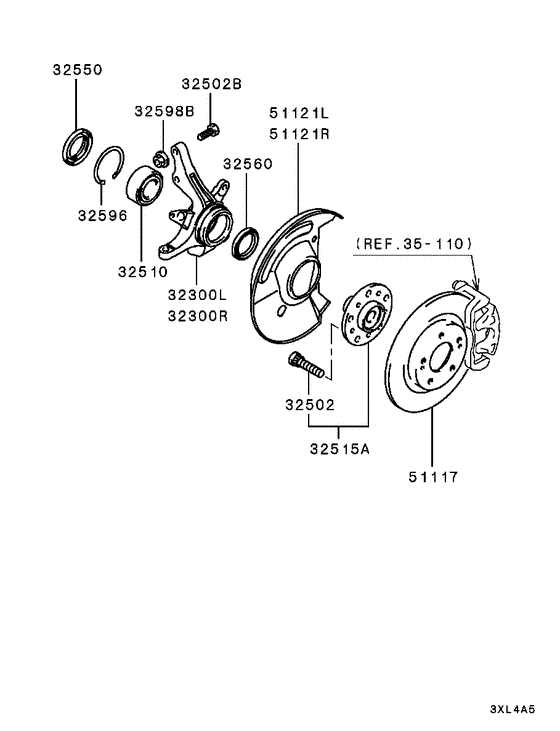

Diagram 7939137
Parts diagram group Front axle hub & drum in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (23 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 32300L | MR150274 | KNUCKLE, LH | 1 | $247.16 | |
| 32300L | MR150276 | KNUCKLE, LH | 1 | $247.16 | |
| 32300R | MR150275 | KNUCKLE, RH | 1 | $247.16 | |
| 32300R | MR150277 | KNUCKLE, RH | 1 | $247.16 | |
| 32502 | MB303869 | BOLT, FR WHEEL HUB | 12x45 | 10 | — |
| 32502 | MB911495 | BOLT, FR WHEEL HUB | 12x43 | 10 | $2.15 |
| 32502 | MB911495 | BOLT, FR WHEEL HUB | 12x43 | 10 | $2.15 |
| 32502B | MB518761 | BOLT, FR WHEEL HUB | 12x55 | 4 | $5.34 |
| 32510 | MB808442 | BEARING, FR WHEEL HUB | Angular cont.ball,74x36-40 | 2 | — |
| 32510 | MR449797 | BEARING, FR WHEEL HUB | Angular contact ball,74x36-40 | 2 | $154.58 |
| 32515A | MB573319 | HUB ASSY, FR WHEEL | 2 | $202.76 | |
| 32515A | MR319603 | HUB ASSY, FR WHEEL | 2 | — | |
| 32515A | MN113554 | HUB ASSY, FR WHEEL | 2 | $174.41 | |
| 32550 | MB808443 | OIL SEAL, FR WHEEL HUB, INR | 2 | $8.76 | |
| 32560 | MB808444 | OIL SEAL, FR WHEEL HUB, OTR | 2 | $8.76 | |
| 32596 | MB808445 | SNAP RING, FR WHEEL HUB | 67.5 | 2 | $11.00 |
| 32598B | MB573720 | NUT, FR WHEEL HUB | Flange self locking,12.8 | 4 | $2.36 |
| 51117 | MR128845 | DISC, FR BRAKE | 15; | 2 | — |
| 51117 | MR128846 | DISC, FR BRAKE | 15; | 2 | $136.12 |
| 51117 | MR128846 | DISC, FR BRAKE | 15; | 2 | $136.12 |
| 51117 | MR307796 | DISC, FR BRAKE | 15; | 2 | $171.00 |
| 51121L | MR128847 | COVER, FR BRAKE DISC, LH | 1 | $11.99 | |
| 51121R | MR128848 | COVER, FR BRAKE DISC, RH | 1 | $17.10 |
