Front axle freewheel clutch
This EPC family contains 3 catalog variations for the VIN-confirmed Pajero Mini H56A catalog.

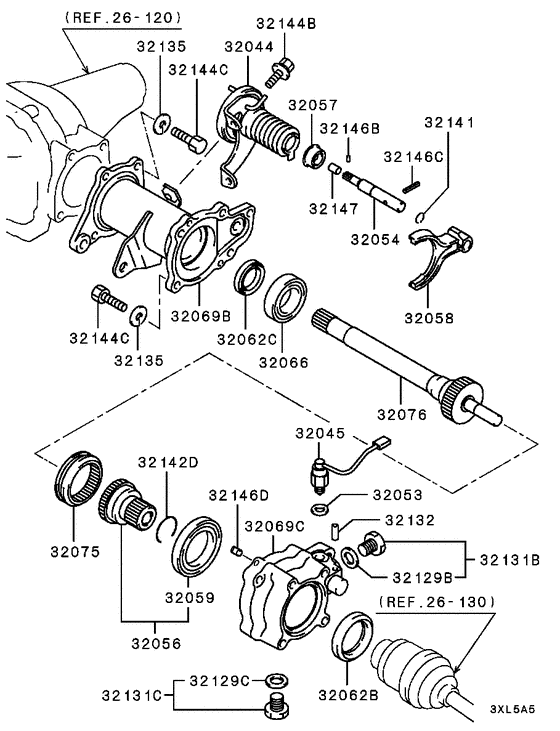

Diagram 7939134
Parts diagram group Front axle freewheel clutch in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (34 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 32044 | MR176084 | ACTUATOR, FREEWHEEL CLUTCH | 1 | $118.33 | |
| 32045 | MR166084 | SWITCH, FREEWHEEL CLUTCH | 1 | — | |
| 32045 | MR399295 | SWITCH, FREEWHEEL CLUTCH | 1 | $77.29 | |
| 32045 | MR399295 | SWITCH, FREEWHEEL CLUTCH | 1 | $77.29 | |
| 32053 | MF660034 | GASKET, CYLINDER BLOCK | D=12 | 1 | $0.21 |
| 32054 | MR166058 | ROD, FREEWHEEL CLUTCH ACTUATOR SHIFT | 1 | $28.86 | |
| 32054 | MR305765 | ROD, FREEWHEEL CLUTCH ACTUATOR SHIFT | 1 | $24.90 | |
| 32056 | MR166083 | GEAR, FREEWHEEL CLUTCH MAIN SHAFT | 1 | $109.44 | |
| 32057 | MB837952 | OIL SEAL, FREEWHEEL CLUTCH ACTUATOR ROD | 1 | $6.28 | |
| 32058 | MR166059 | FORK, FREEWHEEL CLUTCH SHIFT | 1 | $102.12 | |
| 32058 | MR276890 | FORK, FREEWHEEL CLUTCH SHIFT | 1 | $51.06 | |
| 32059 | MB620516 | BEARING, FREEWHEEL CLUTCH GEAR | 80x10-50 | 1 | $18.23 |
| 32062B | MB664225 | OIL SEAL, FREEWHEEL CLUTCH DIFF SIDE | 1 | $9.11 | |
| 32062C | MR195329 | OIL SEAL, FREEWHEEL CLUTCH DIFF SIDE | 1 | $5.17 | |
| 32066 | MD713526 | BEARING, M/T DIFF CASE | Ball,62 | 1 | $25.99 |
| 32069B | MR166065 | HOUSING, FREEWHEEL CLUTCH | 1 | $182.04 | |
| 32069C | MR195645 | HOUSING, FREEWHEEL CLUTCH | 1 | $59.94 | |
| 32075 | MB620522 | SLEEVE, FREEWHEEL CLUTCH MAIN SHAFT | 1 | $26.81 | |
| 32076 | MR166060 | SHAFT, FREEWHEEL CLUTCH MAIN | 1 | — | |
| 32129B | MF660036 | GASKET, ACCEL CONTROL EQUIP | D=16 | 1 | $0.84 |
| 32129B | MF660066 | GASKET, PLUG | D=16 | 1 | $1.15 |
| 32129C | MB001294 | Gasket, Drain Plug | D=18.2 | 1 | $1.15 |
| 32131B | MB001261 | PLUG KIT, FR AXLE HOUSING | 1 | $3.82 | |
| 32131C | MB001265 | PLUG KIT, RR AXLE HOUSING | 1 | $6.57 | |
| 32132 | MR195687 | NIPPLE, FREEWHEEL CLUTCH | 1 | $6.81 | |
| 32135 | MS450992 | WASHER, FR AXLE | Spring,10 | 9 | $1.87 |
| 32141 | MD718341 | SNAP RING, M/T GEARSHIFT EQUIP | 11.8 | 1 | $4.79 |
| 32142D | MB664226 | CLIP, FR DIFF | 1 | $1.89 | |
| 32144B | MS240140 | BOLT, ENG MOUNTING | Washer assembled,8x25 | 2 | $1.42 |
| 32144C | MB303935 | BOLT, FR AXLE HOUSING | 10x25 | 9 | $3.11 |
| 32146B | MD713964 | PIN, M/T GEARSHIFT EQUIP | Dowel,4x7.8 | 1 | $3.72 |
| 32146C | MF472573 | SPRING PIN, TIMING BELT TRAIN | 5x25 | 1 | $1.27 |
| 32146D | MF472404 | PIN, CYLINDER BLOCK | Dowel,8x18 | 2 | $2.59 |
| 32147 | MD712733 | COLLAR, M/T GEARSHIFT EQUIP | 1 | $5.42 |

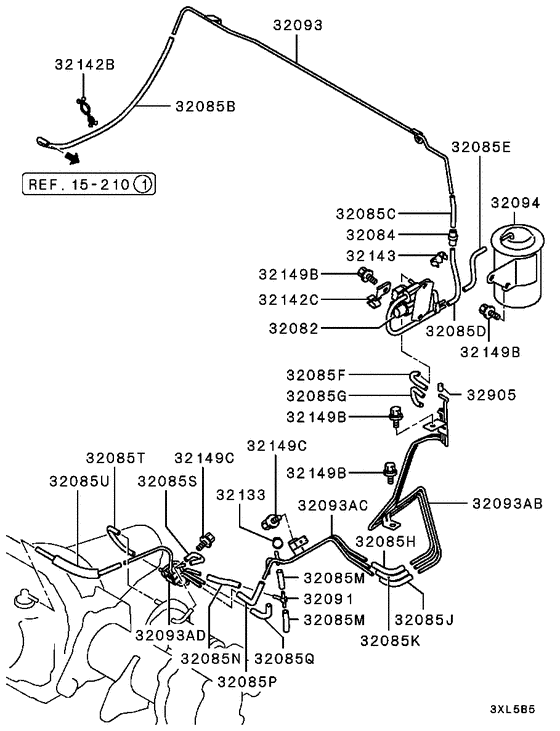

Diagram 7939135
Parts diagram group Front axle freewheel clutch in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (34 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 32082 | MR176086 | VALVE, FREEWHEEL CLUTCH CONTROL SOLENOID | 1 | $73.26 | |
| 32082 | MR232796 | VALVE, FREEWHEEL CLUTCH CONTROL SOLENOID | 1 | $136.16 | |
| 32084 | MB188950 | CHECK VALVE, EMISSION CONTROL | 1 | $14.25 | |
| 32085B | MS632192 | HOSE, CRUISE CONTROL EQUIP | 3x2000 | 1 | $11.22 |
| 32085C | MS632192 | HOSE, CRUISE CONTROL EQUIP | 3x2000 | 1 | $11.22 |
| 32085D | MS632192 | HOSE, CRUISE CONTROL EQUIP | 3x2000 | 1 | $11.22 |
| 32085E | MS632192 | HOSE, CRUISE CONTROL EQUIP | 3x2000 | 1 | $11.22 |
| 32085F | MS632392 | HOSE, EMISSION CONTROL EQUIP | 3x2000 | 1 | $57.46 |
| 32085G | MS632792 | HOSE, EMISSION SOLENOID VALVE | 3x2000 | 1 | $32.47 |
| 32085H | MS632192 | HOSE, CRUISE CONTROL EQUIP | 3x2000 | 1 | $11.22 |
| 32085J | MS632392 | HOSE, EMISSION CONTROL EQUIP | 3x2000 | 1 | $57.46 |
| 32085K | MS632792 | HOSE, EMISSION SOLENOID VALVE | 3x2000 | 1 | $32.47 |
| 32085M | MS632192 | HOSE, CRUISE CONTROL EQUIP | 3x2000 | 2 | $11.22 |
| 32085N | MS632192 | HOSE, CRUISE CONTROL EQUIP | 3x2000 | 1 | $11.22 |
| 32085P | MS632392 | HOSE, EMISSION CONTROL EQUIP | 3x2000 | 1 | $57.46 |
| 32085Q | MS632792 | HOSE, EMISSION SOLENOID VALVE | 3x2000 | 1 | $32.47 |
| 32085S | MS632792 | HOSE, EMISSION SOLENOID VALVE | 3x2000 | 1 | $32.47 |
| 32085T | MS632392 | HOSE, EMISSION CONTROL EQUIP | 3x2000 | 1 | $57.46 |
| 32085U | MR195734 | HOSE, FREEWHEEL CLUTCH CONTROL VACUUM | 3x210 | 1 | $4.88 |
| 32091 | MD001865 | JOINT, FUEL CONTROL LINE | 1 | $3.57 | |
| 32093 | MR176573 | TUBE, FREEWHEEL CLUTCH CONTROL VACUUM | 1 | $20.72 | |
| 32093AB | MR176071 | TUBE, FREEWHEEL CLUTCH CONTROL VACUUM | 1 | $51.06 | |
| 32093AC | MR195740 | TUBE ASSY, FREEWHEEL CLUTCH CONTROL VACUUM | 1 | $17.02 | |
| 32093AD | MR176068 | TUBE ASSY, FREEWHEEL CLUTCH CONTROL VACUUM | 1 | $14.80 | |
| 32094 | MR176085 | VACUUM TANK, FREEWHEEL CLUTCH CONTROL | 1 | $63.64 | |
| 32094 | MR232797 | VACUUM TANK, FREEWHEEL CLUTCH CONTROL | 1 | $65.12 | |
| 32094 | MR317118 | VACUUM TANK, FREEWHEEL CLUTCH CONTROL | 1 | $65.12 | |
| 32133 | MB249338 | BAND, ROCKER COVER | L=129.5 | 1 | $2.87 |
| 32142B | MS470364 | CLIP, FUEL LINE | 8-16 | 2 | $2.81 |
| 32142C | MB620825 | CLIP, FREEWHEEL CLUTCH | 1 | $3.56 | |
| 32143 | MD001852 | CLAMP, CRUISE CONTROL EQUIP | 1 | $2.96 | |
| 32149B | MF241223 | BOLT, ROCKER COVER | Washer assembled,6x12 | 6 | $0.96 |
| 32149C | MF240050 | BOLT, ROCKER COVER | Washer assembled,8x14 | 2 | $1.09 |
| 32905 | MB937321 | CAP, FR DIFF BREATHER TUBE | 1 | $4.65 |

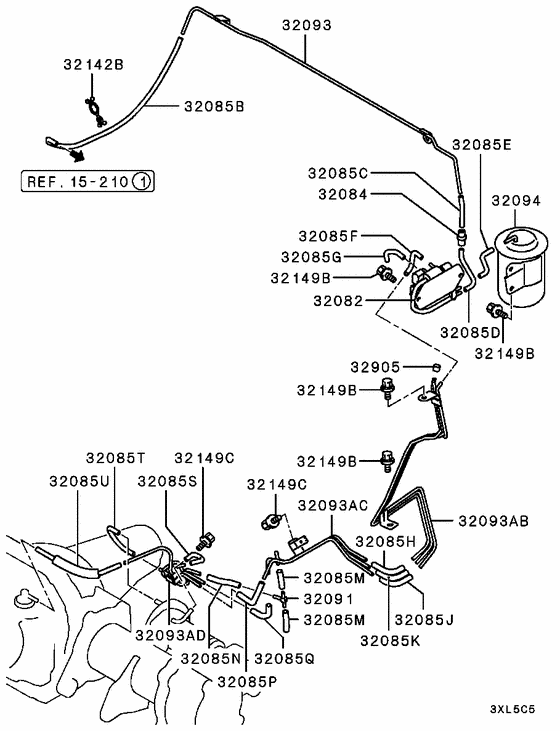

Diagram 7939136
Parts diagram group Front axle freewheel clutch in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (31 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 32082 | MR176086 | VALVE, FREEWHEEL CLUTCH CONTROL SOLENOID | 1 | $73.26 | |
| 32082 | MR232796 | VALVE, FREEWHEEL CLUTCH CONTROL SOLENOID | 1 | $136.16 | |
| 32084 | MB188950 | CHECK VALVE, EMISSION CONTROL | 1 | $14.25 | |
| 32085B | MS632192 | HOSE, CRUISE CONTROL EQUIP | 3x2000 | 1 | $11.22 |
| 32085C | MS632192 | HOSE, CRUISE CONTROL EQUIP | 3x2000 | 1 | $11.22 |
| 32085D | MS632192 | HOSE, CRUISE CONTROL EQUIP | 3x2000 | 1 | $11.22 |
| 32085E | MS632192 | HOSE, CRUISE CONTROL EQUIP | 3x2000 | 1 | $11.22 |
| 32085F | MS632392 | HOSE, EMISSION CONTROL EQUIP | 3x2000 | 1 | $57.46 |
| 32085G | MS632792 | HOSE, EMISSION SOLENOID VALVE | 3x2000 | 1 | $32.47 |
| 32085H | MS632192 | HOSE, CRUISE CONTROL EQUIP | 3x2000 | 1 | $11.22 |
| 32085J | MS632392 | HOSE, EMISSION CONTROL EQUIP | 3x2000 | 1 | $57.46 |
| 32085K | MS632792 | HOSE, EMISSION SOLENOID VALVE | 3x2000 | 1 | $32.47 |
| 32085M | MS632192 | HOSE, CRUISE CONTROL EQUIP | 3x2000 | 2 | $11.22 |
| 32085N | MS632192 | HOSE, CRUISE CONTROL EQUIP | 3x2000 | 1 | $11.22 |
| 32085P | MS632392 | HOSE, EMISSION CONTROL EQUIP | 3x2000 | 1 | $57.46 |
| 32085Q | MS632792 | HOSE, EMISSION SOLENOID VALVE | 3x2000 | 1 | $32.47 |
| 32085S | MS632792 | HOSE, EMISSION SOLENOID VALVE | 3x2000 | 1 | $32.47 |
| 32085T | MS632392 | HOSE, EMISSION CONTROL EQUIP | 3x2000 | 1 | $57.46 |
| 32085U | MR195734 | HOSE, FREEWHEEL CLUTCH CONTROL VACUUM | 3x210 | 1 | $4.88 |
| 32091 | MD001865 | JOINT, FUEL CONTROL LINE | 1 | $3.57 | |
| 32093 | MR176573 | TUBE, FREEWHEEL CLUTCH CONTROL VACUUM | 1 | $20.72 | |
| 32093AB | MR176071 | TUBE, FREEWHEEL CLUTCH CONTROL VACUUM | 1 | $51.06 | |
| 32093AC | MR195740 | TUBE ASSY, FREEWHEEL CLUTCH CONTROL VACUUM | 1 | $17.02 | |
| 32093AD | MR176068 | TUBE ASSY, FREEWHEEL CLUTCH CONTROL VACUUM | 1 | $14.80 | |
| 32094 | MR176085 | VACUUM TANK, FREEWHEEL CLUTCH CONTROL | 1 | $63.64 | |
| 32094 | MR232797 | VACUUM TANK, FREEWHEEL CLUTCH CONTROL | 1 | $65.12 | |
| 32094 | MR317118 | VACUUM TANK, FREEWHEEL CLUTCH CONTROL | 1 | $65.12 | |
| 32142B | MS470364 | CLIP, FUEL LINE | 8-16 | 2 | $2.81 |
| 32149B | MF241223 | BOLT, ROCKER COVER | Washer assembled,6x12 | 6 | $0.96 |
| 32149C | MF240050 | BOLT, ROCKER COVER | Washer assembled,8x14 | 2 | $1.09 |
| 32905 | MB937321 | CAP, FR DIFF BREATHER TUBE | 1 | $4.65 |
