Front axle drive shaft
This EPC family contains 2 catalog variations for the VIN-confirmed Pajero Mini H56A catalog.

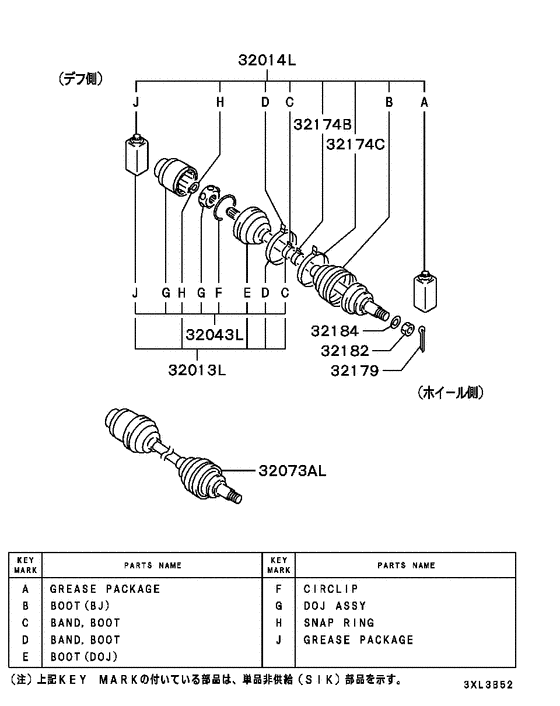

Diagram 7939132
Parts diagram group Front axle drive shaft in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (15 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 32013L | MB526006 | BOOT KIT, FR AXLE SHAFT | Doj | 1 | $115.44 |
| 32013L | MR331289 | BOOT KIT, FR AXLE JOINT | Doj | 1 | $116.18 |
| 32014L | MR232507 | BOOT KIT, FR AXLE SHAFT | Bj | 1 | $125.17 |
| 32014L | MR331288 | BOOT KIT, FR AXLE SHAFT | Bj | 1 | $116.18 |
| 32043L | MR232511 | JOINT KIT, FR AXLE SHAFT | Doj | 1 | $582.40 |
| 32043L | MR331287 | JOINT KIT, FR AXLE SHAFT | Doj | 1 | $582.40 |
| 32073AL | MR305647 | SHAFT ASSY, FR AXLE DRIVE | Bj-doj | 1 | $883.79 |
| 32073AL | MR305649 | SHAFT ASSY, FR AXLE DRIVE | Bj-doj | 1 | $883.79 |
| 32174B | MR232509 | BAND, FR AXLE | 2 | $6.22 | |
| 32174B | MR336102 | BAND, FR AXLE | 2 | $6.22 | |
| 32174C | MR232508 | BAND, FR AXLE | 2 | $4.59 | |
| 32174C | MR336101 | BAND, FR AXLE | 2 | $6.22 | |
| 32179 | MF472085 | PIN, ENG OIL PUMP INR | 2 | $0.31 | |
| 32182 | MB109029 | NUT, FR AXLE | Castle,22 | 2 | $7.12 |
| 32184 | MB109025 | WASHER, FR AXLE | Lock,22.4 | 2 | $3.59 |

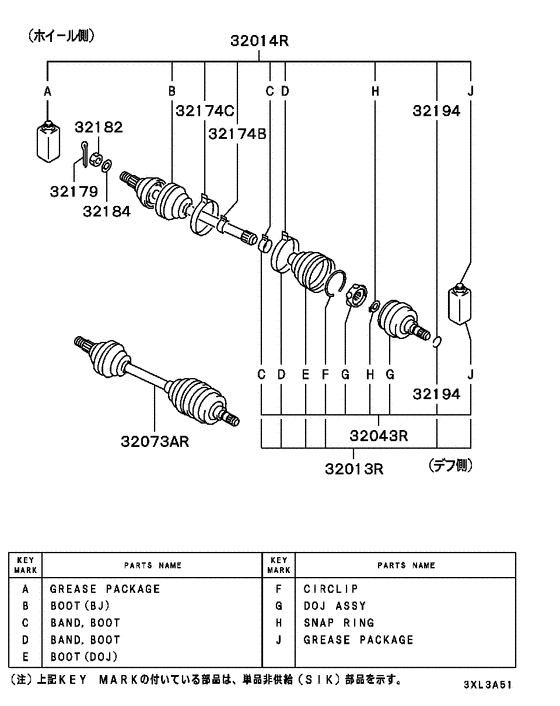

Diagram 7939133
Parts diagram group Front axle drive shaft in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (17 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 32013R | MB526006 | BOOT KIT, FR AXLE SHAFT | Doj | 1 | $115.44 |
| 32013R | MR331289 | BOOT KIT, FR AXLE JOINT | Doj | 1 | $116.18 |
| 32014R | MR232507 | BOOT KIT, FR AXLE SHAFT | Bj | 1 | $125.17 |
| 32014R | MR331288 | BOOT KIT, FR AXLE SHAFT | Bj | 1 | $116.18 |
| 32043R | MR232512 | JOINT KIT, FR AXLE SHAFT | Doj | 1 | $582.40 |
| 32043R | MR331286 | JOINT KIT, FR AXLE SHAFT | Doj | 1 | $582.40 |
| 32073AR | MR305646 | SHAFT ASSY, FR AXLE DRIVE | Bj-doj | 1 | $883.79 |
| 32073AR | MR305648 | SHAFT ASSY, FR AXLE DRIVE | Bj-doj | 1 | $883.79 |
| 32174B | MR232509 | BAND, FR AXLE | 2 | $6.22 | |
| 32174B | MR336102 | BAND, FR AXLE | 2 | $6.22 | |
| 32174C | MR232508 | BAND, FR AXLE | 2 | $4.59 | |
| 32174C | MR336101 | BAND, FR AXLE | 2 | $6.22 | |
| 32179 | MF472085 | PIN, ENG OIL PUMP INR | 2 | $0.31 | |
| 32182 | MB109029 | NUT, FR AXLE | Castle,22 | 2 | $7.12 |
| 32184 | MB109025 | WASHER, FR AXLE | Lock,22.4 | 2 | $3.59 |
| 32194 | MB290118 | CLIP, FR AXLE | 24.7 | 1 | — |
| 32194 | MB896916 | CLIP, RR AXLE DRIVE SHAFT | 21.5 | 1 | $3.97 |
