Front axle differential
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

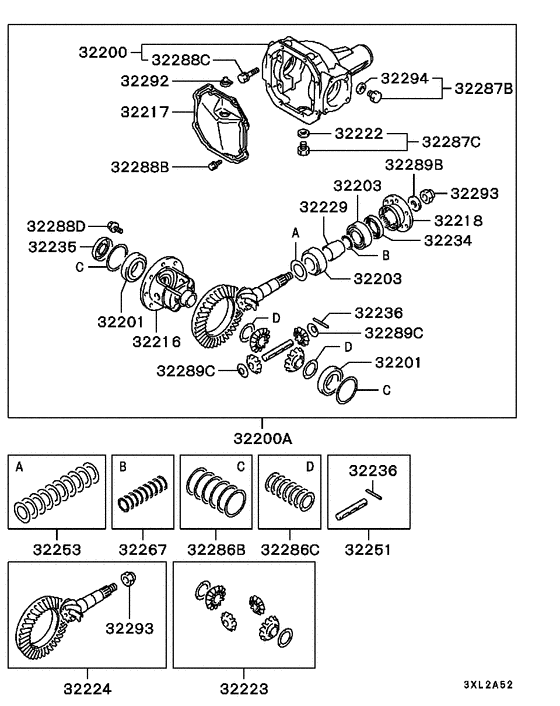

Diagram 7939131
Parts diagram group Front axle differential in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (32 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 32200 | MR166078 | CARRIER, FR DIFF | 1 | $287.12 | |
| 32200A | MR273031 | CARRIER ASSY, FR DIFF | 5.111 | 1 | $1512.00 |
| 32201 | MB393957 | BEARING, RR DIFF CASE | Taper r0ller,72.00x18.25-35.00 | 2 | $16.59 |
| 32203 | MV033164 | BEARING, FR DIFF DRIVE PINION, FR | Taper roller,52x19.25-25 | 2 | $41.72 |
| 32216 | MB290055 | CASE, FR DIFF | 1 | $143.56 | |
| 32217 | MR176837 | COVER, FR DIFF CARRIER | 1 | $30.34 | |
| 32218 | MB393667 | FLANGE, RR DIFF COMPANION | 1 | $48.84 | |
| 32222 | MB001294 | Gasket, Drain Plug | D=18.2 | 1 | $1.15 |
| 32223 | MB283143 | DIFF CASE GEAR KIT | 1 | $182.04 | |
| 32224 | MR273029 | GEAR KIT, FR DIFF FINAL DRIVE | 5.111 | 1 | $624.62 |
| 32229 | MB664335 | SPACER, RR DIFF PINION BEARING | 48.2 | 1 | $27.36 |
| 32229 | MB664336 | SPACER, RR DIFF PINION BEARING | 48.8 | 1 | $7.10 |
| 32234 | MB092620 | OIL SEAL, RR DIFF DRIVE PINION | 1 | — | |
| 32234 | 3515A059 | OIL SEAL, FR DIFF DRIVE PINION | 1 | $22.57 | |
| 32235 | MD706433 | OIL SEAL, T/M FR DIFF CASE | 1 | — | |
| 32235 | MD707184 | OIL SEAL,RR DIFF SIDE BEARING,LH | 1 | $4.62 | |
| 32236 | MT206970 | PIN, FR DIFF | 4x32 | 1 | $2.37 |
| 32251 | MB185337 | SHAFT KIT, FR DIFF PINION | 1 | $18.50 | |
| 32253 | MB185352 | SHIM SET, FR DIFF DRIVE PINION, FR | 1 | $22.20 | |
| 32267 | MB527864 | SHIM SET, RR DIFF DRIVE PINION, FR | 1 | $55.40 | |
| 32286B | MB241903 | SPACER SET, FR DIFF | 2 | $14.98 | |
| 32286C | MB185340 | SPACER SET, M/T DIFF SIDE GEAR | 2 | $31.08 | |
| 32287B | MB001261 | PLUG KIT, FR AXLE HOUSING | 1 | $3.82 | |
| 32287C | MB001265 | PLUG KIT, RR AXLE HOUSING | 1 | $6.57 | |
| 32288B | MF241250 | BOLT, ELECTRIC FUEL PUMP | Washer assembled,8x14 | 8 | $2.46 |
| 32288C | MB160801 | BOLT, FR DIFF | Washer assembled,10x52.6 | 4 | $4.44 |
| 32288D | MB001256 | BOLT, FR DIFF | Flange,8x16 | 8 | $2.52 |
| 32289B | MT203641 | WASHER, PROPELLER SHAFT | Plain,18.5 | 1 | $5.46 |
| 32289C | MB073182 | WASHER, M/T POWER TRAIN | Plain,15 | 2 | $3.70 |
| 32292 | MR176208 | PLUG, FR DIFF | 1 | $1.27 | |
| 32293 | MA143517 | NUT, PROPELLER SHAFT | Lock,18 | 1 | $3.80 |
| 32294 | MF660066 | GASKET, PLUG | D=16 | 1 | $1.15 |
