Steering wheel
This EPC family contains 3 catalog variations for the VIN-confirmed Pajero Mini H56A catalog.

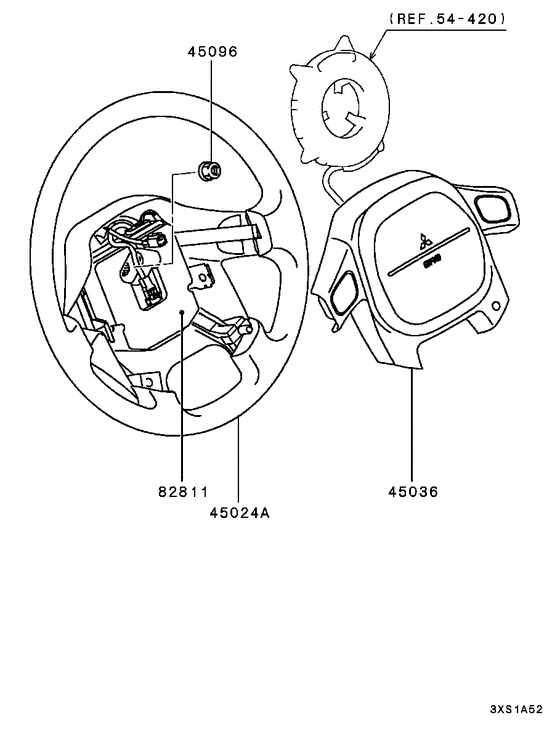

Diagram 7939169
Parts diagram group Steering wheel in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (3 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 45024A | MR249468 | WHEEL ASSY, STEERING | 4 spoke | 1 | $528.53 |
| 45036 | MR249472 | MODULE, AIR BAG | Pyro type | 1 | $1415.23 |
| 45096 | MB288463 | NUT, FR WHEEL HUB | Flange self locking,12 | 1 | $3.42 |

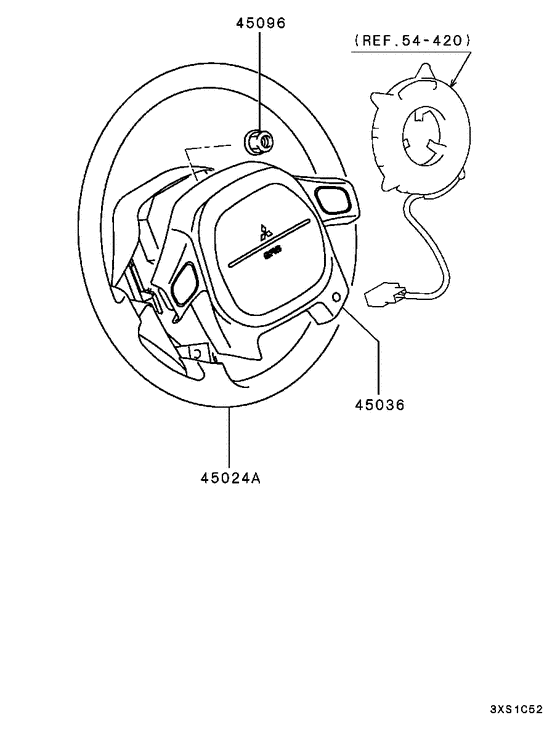

Diagram 7939170
Parts diagram group Steering wheel in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (3 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 45024A | MR249468 | WHEEL ASSY, STEERING | 4 spoke | 1 | $528.53 |
| 45036 | MR249472 | MODULE, AIR BAG | Pyro type | 1 | $1415.23 |
| 45096 | MB288463 | NUT, FR WHEEL HUB | Flange self locking,12 | 1 | $3.42 |

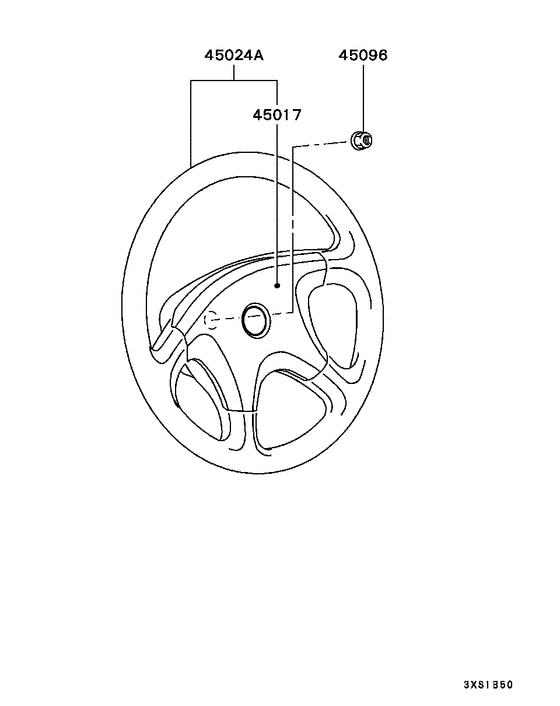

Diagram 7939171
Parts diagram group Steering wheel in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (2 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 45024A | MR249468 | WHEEL ASSY, STEERING | 4 spoke | 1 | $528.53 |
| 45096 | MB288463 | NUT, FR WHEEL HUB | Flange self locking,12 | 1 | $3.42 |
