Steering gear
This EPC family contains 2 catalog variations for the VIN-confirmed Pajero Mini H56A catalog.

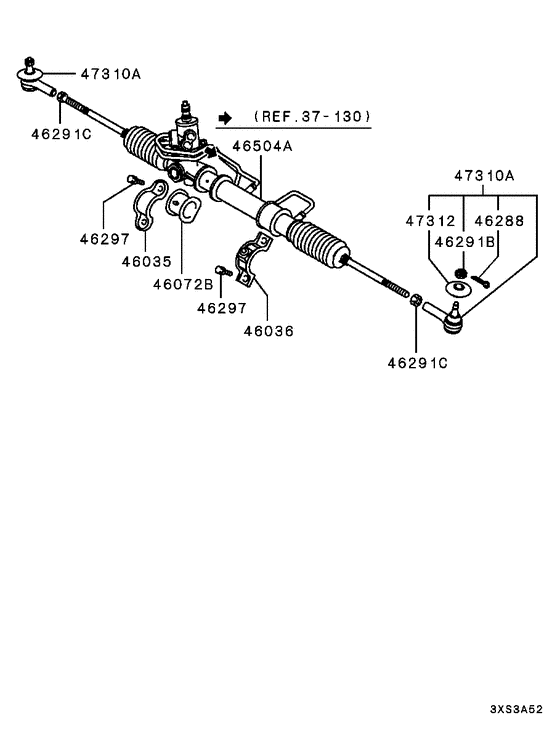

Diagram 7939174
Parts diagram group Steering gear in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (12 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 46035 | MB288938 | BRACKET, STEERING GEAR MOUNTING ROD SIDE | 1 | — | |
| 46036 | MB932727 | BRACKET, STEERING GEAR MOUNTING ROD SIDE | 1 | — | |
| 46072B | MR133042 | CUSHION, STEERING GEAR | 1 | $10.12 | |
| 46288 | MF472054 | PIN, ENG OIL PUMP INR | Split,2.5x25 | 2 | $1.37 |
| 46291B | MB122128 | NUT, FR SUSP LWR ARM | Slotted,6t,10 | 2 | $3.24 |
| 46291C | MF430007 | NUT | 12 | 2 | $1.21 |
| 46297 | MF241280 | BOLT, RR SEAT | Washer assembled,10x20 | 4 | $0.88 |
| 46504A | MR133999 | GEAR & LINK ASSY, P/S | 1 | $1713.60 | |
| 47310A | MB598023 | END ASSY, TIE ROD | 2 | — | |
| 47310A | MR535996 | END ASSY, TIE ROD | 2 | $80.71 | |
| 47312 | MB616023 | COVER, TIE ROD END | 2 | — | |
| 47312 | 4422A137 | TIE ROD END BOOT | 2 | $19.20 |

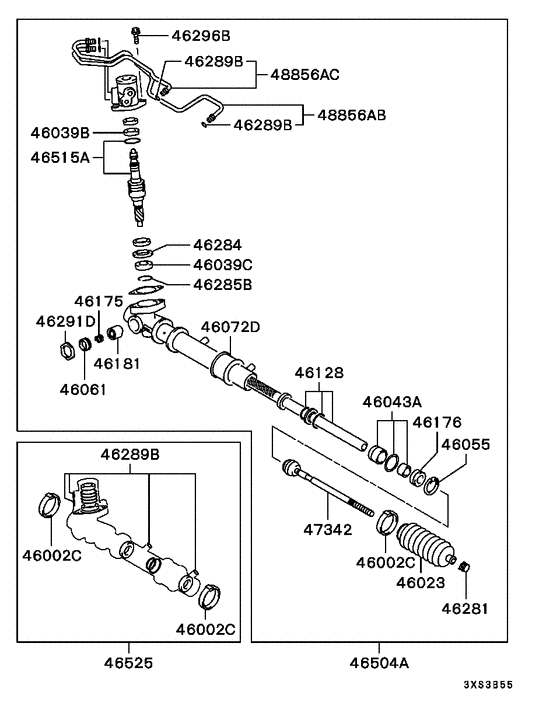

Diagram 7939175
Parts diagram group Steering gear in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (24 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 46002C | MB844982 | BAND, STEERING GEAR | 2 | $9.17 | |
| 46023 | MR234225 | BELLOWS, STEERING GEAR | 2 | $40.36 | |
| 46039B | MR150992 | BEARING, STEERING GEAR PINION | 1 | $34.04 | |
| 46039C | MB350597 | BEARING, STEERING GEAR PINION | 1 | — | |
| 46043A | MR267430 | STOPPER, STEERING GEAR RACK | 1 | $17.78 | |
| 46055 | MR103277 | CLIP, STEERING GEAR PISTON | 1 | $4.29 | |
| 46061 | MB489507 | COVER, STEERING GEAR RACK SUPPORT | 1 | $10.66 | |
| 46072D | 4410A233 | CUSHION, STEERING GEAR | 1 | $7.52 | |
| 46128 | MB844957 | RACK, STEERING GEAR | 1 | — | |
| 46175 | MB006420 | SPRING, STEERING GEAR RACK SUPPORT | 1 | $5.77 | |
| 46176 | MR319489 | STOPPER, STEERING GEAR RACK | 1 | $17.02 | |
| 46181 | MB844977 | SUPPORT, STEERING GEAR RACK | 1 | $22.94 | |
| 46181 | MR234211 | SUPPORT, STEERING GEAR RACK | 1 | $22.57 | |
| 46281 | MB347385 | CLIP, STEERING GEAR | 2 | $3.40 | |
| 46284 | MR150988 | WASHER, STEERING GEAR | 1 | — | |
| 46285B | MF522011 | SNAP RING, BALANCER | 20 | 1 | $2.66 |
| 46289B | MB844980 | O-RING, STEERING GEAR INR | 4 | $3.83 | |
| 46291D | MB489509 | NUT, STEERING GEAR | Lock | 1 | $6.22 |
| 46296B | MF241254 | BOLT, FLYWHEEL HOUSING | Washer assembled,8x22 | 2 | $1.01 |
| 46504A | MR133999 | GEAR & LINK ASSY, P/S | 1 | $1713.60 | |
| 46525 | MR267431 | SEAL KIT, P/S GEAR | 1 | — | |
| 47342 | MR234387 | TIE ROD, STEERING | 2 | $133.38 | |
| 48856AB | MR234388 | TUBE ASSY, P/S OIL FEED | 1 | $70.30 | |
| 48856AC | MR234389 | TUBE ASSY, P/S OIL FEED | 1 | $63.64 |
