Steering column & cover
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

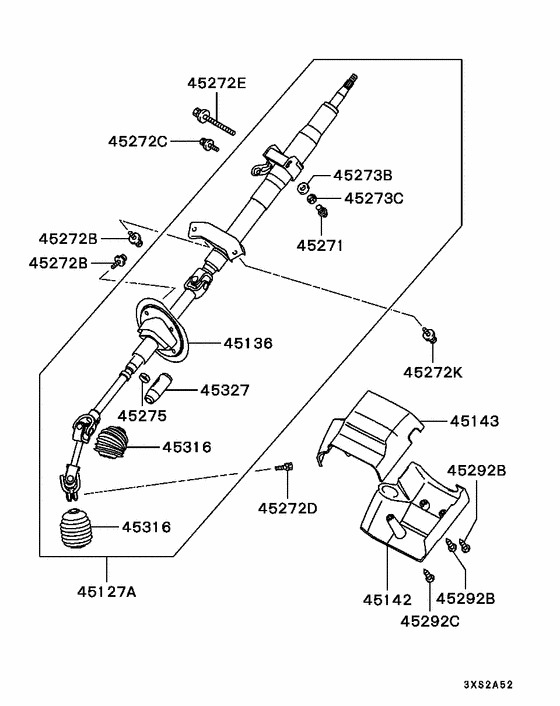

Diagram 7939172
Parts diagram group Steering column & cover in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (18 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 45127A | MR150372 | COLUMN ASSY, STEERING | 1 | $467.38 | |
| 45136 | MR150376 | COVER, STEERING COLUMN DASH PANEL | 1 | $54.76 | |
| 45142 | MR710799 | COVER, STEERING COLUMN, LWR | 1 | $28.86 | |
| 45143 | MR738455 | COVER, STEERING COLUMN, UPR | 1 | $25.16 | |
| 45271 | MB616664 | BOLT, STEERING COLUMN | 1 | $4.14 | |
| 45272B | MS240125 | BOLT, FUEL TANK | Washer assembled,8x20 | 5 | $0.88 |
| 45272C | MF244850 | BOLT, TAILGATE PANEL | Washer assembled,8x18 | 1 | $1.37 |
| 45272D | MF241256 | BOLT, ENG OIL PAN | Washer assembled,8x28 | 1 | $3.28 |
| 45272E | MB922844 | BOLT, STEERING COLUMN | Washer assembled,8x85 | 1 | $6.96 |
| 45272K | MB133472 | BOLT, FUEL TANK | Washer assembled,8x20 | 1 | $1.25 |
| 45273B | MF450005 | WASHER, FLYWHEEL HOUSING | Plain,8 | 1 | $0.82 |
| 45273C | MF450405 | WASHER, CYLINDER HEAD | Spring,8 | 1 | $0.35 |
| 45275 | MB347048 | SPRING, STEERING COLUMN INR | 1 | $4.00 | |
| 45292B | MB409438 | SCREW, STEERING COLUMN COVER | Tapping,5x16 | 3 | $2.83 |
| 45292C | MB409439 | SCREW, STEERING COLUMN COVER | Tapping,5x20 | 1 | $3.01 |
| 45316 | MB243859 | BOOT, STEERING SHAFT UNIVERSAL JOINT | 2 | $7.11 | |
| 45327 | MR112774 | COVER, STEERING SHAFT JOINT | 1 | $10.36 | |
| 45327 | MR289691 | COVER, STEERING SHAFT JOINT | 1 | $10.66 |
