Rear wheel brake
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

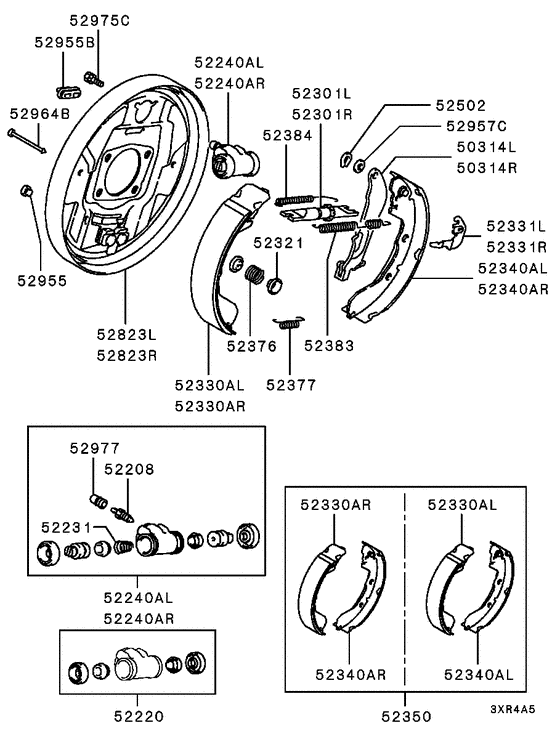

Diagram 7939155
Parts diagram group Rear wheel brake in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (41 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 50314L | MB895248 | LEVER, PARKING BRAKE OPERATING, LH | 1 | $55.50 | |
| 50314R | MB895249 | LEVER, PARKING BRAKE OPERATING, RH | 1 | $55.50 | |
| 52208 | MB366146 | BLEEDER, FR BRAKE CALIPER | 1 | — | |
| 52208 | 4610A018 | BLEEDER, RR BRAKE CYLINDER | 1 | $8.89 | |
| 52220 | MB134975 | CUP & BOOT KIT, RR BRAKE CYLINDER | 2 | — | |
| 52220 | 4610A078 | CUP BOOT KITRR BRAKE CYL | 2 | $6.86 | |
| 52220 | MB193623 | CUP & BOOT KIT, RR BRAKE CYLINDER | 2 | — | |
| 52240AL | MB193411 | CYLINDER ASSY, RR BRAKE | 3/4; | 1 | $133.94 |
| 52240AL | MB366326 | CYLINDER ASSY, RR BRAKE | 13/16; | 1 | $103.60 |
| 52240AR | MB193410 | CYLINDER ASSY, RR BRAKE, RH | 3/4; | 1 | $150.48 |
| 52240AR | MB333468 | CYLINDER ASSY, RR BRAKE | 13/16; | 1 | $112.48 |
| 52301L | MB618195 | ADJUSTER, RR BRAKE SHOE SLACK, LH | 1 | — | |
| 52301L | MR475628 | ADJUSTER, RR BRAKE SHOE SLACK, RH | 1 | $51.98 | |
| 52301L | MR475628 | ADJUSTER, RR BRAKE SHOE SLACK, RH | 1 | $51.98 | |
| 52301R | MB618196 | ADJUSTER, RR BRAKE SHOE SLACK, RH | 1 | $59.51 | |
| 52301R | MR475627 | ADJUSTER, RR BRAKE SHOE SLACK, LH | 1 | $51.98 | |
| 52321 | MB857302 | CUP, RR BRAKE SHOE SPRING | 8 | $1.70 | |
| 52330AL | MB668336 | SHOE ASSY, RR BRAKE PRIMARY, LH | 1 | — | |
| 52330AL | MB950065 | SHOE SET, RR BRAKE | 1 | $72.91 | |
| 52330AR | MB668336 | SHOE ASSY, RR BRAKE PRIMARY, LH | 1 | — | |
| 52330AR | MB950065 | SHOE SET, RR BRAKE | 1 | $72.91 | |
| 52331L | MB407856 | LEVER, RR BRAKE SHOE SLACK ADJUSTER, LH | 1 | $17.10 | |
| 52331R | MB407857 | LEVER, RR BRAKE SHOE SLACK ADJUSTER, RH | 1 | $17.10 | |
| 52340AL | MB668337 | SHOE ASSY, RR BRAKE SECONDARY, LH | 1 | — | |
| 52340AL | MB950065 | SHOE SET, RR BRAKE | 1 | $72.91 | |
| 52340AR | MB668338 | SHOE ASSY, RR BRAKE SECONDARY, RH | 1 | $34.78 | |
| 52350 | MB950065 | SHOE SET, RR BRAKE | 1 | $72.91 | |
| 52376 | MT362438 | SPRING, FR BRAKE SHOE HOLD-DOWN | 4 | — | |
| 52377 | MB587736 | SPRING, RR BRAKE SHOE RETAINER | 2 | $10.12 | |
| 52383 | MB407858 | SPRING, RR BRAKE SHOE TO LEVER | 2 | $12.28 | |
| 52384 | MB587735 | SPRING, RR BRAKE SHOE TO SHOE | 2 | — | |
| 52502 | MA151648 | RETAINER, RR BRAKE CHAMBER | 2 | $1.21 | |
| 52823L | MR235015 | PLATE, RR BRAKE BACKING, LH | 1 | — | |
| 52823R | MR235016 | PLATE, RR BRAKE BACKING, RH | 1 | $96.20 | |
| 52955 | MA151645 | PLUG, RR BRAKE | Rubber,16-12 | 2 | $4.24 |
| 52955B | MA111607 | PLUG, RR BRAKE | Rubber,33-13.8 | 2 | $6.29 |
| 52955B | MR493001 | PLUG, RR BRAKE | 2 | $5.61 | |
| 52957C | MA151647 | WASHER, RR BRAKE | Wave,8.4 | 2 | $4.51 |
| 52964B | MB081509 | PIN, RR BRAKE | Hold,3x41 | 4 | $5.77 |
| 52975C | MT191887 | BOLT, FR BRAKE | Washer assembled,6x11 | 4 | $3.11 |
| 52977 | MV026287 | CAP, GEARSHIFT LINK | 1 | $3.15 |
