Rear susp
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

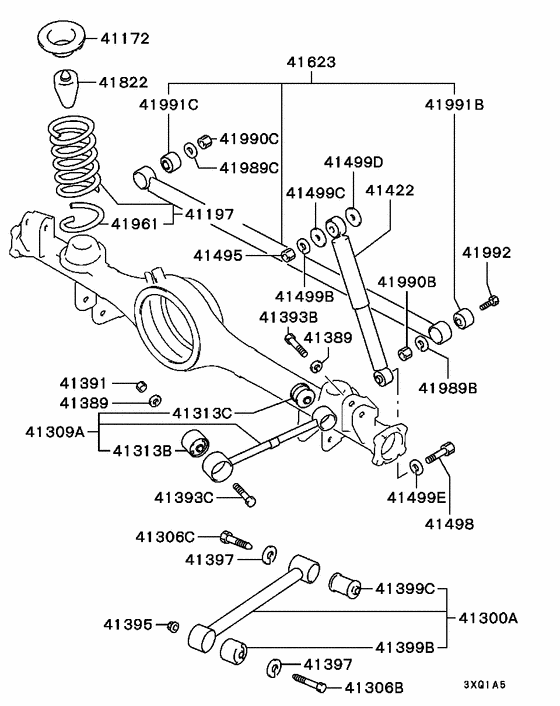

Diagram 7939151
Parts diagram group Rear susp in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (41 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 41172 | MB242736 | SHEET, RR SUSP SPRING, UPR | 2 | $5.73 | |
| 41197 | MR150176 | SPRING, RR SUSP COIL | 2 | — | |
| 41300A | MR151675 | ARM ASSY, RR SUSP, LWR | 2 | $155.95 | |
| 41306B | MB631397 | BOLT, RR SUSP LWR ARM | Cone point,12x75 | 2 | $9.17 |
| 41306C | MB338545 | BOLT, RR SUSP CROSSMEMBER | 12x90 10t | 2 | — |
| 41309A | MR150487 | ARM ASSY, RR SUSP, UPR | 1 | $86.87 | |
| 41309A | MR150488 | ARM ASSY, RR SUSP, UPR | 1 | $73.26 | |
| 41309A | MR210190 | ARM ASSY, RR SUSP, UPR | 2 | $73.26 | |
| 41313B | MR210670 | BUSHING, RR SUSP LWR ARM | 2 | $36.94 | |
| 41313B | MR267543 | BUSHING, RR SUSP LWR ARM | 2 | $32.83 | |
| 41313C | MB339155 | BUSHING, RR SUSP UPR ARM | 2 | $18.92 | |
| 41389 | MF450407 | WASHER | Spring,12 | 4 | $0.82 |
| 41389 | MF450497 | WASHER, RR SUSP UPR ARM | Spring,12 | 4 | $1.92 |
| 41391 | MF430123 | NUT, ENG RR MOUNTING | 12 | 2 | $0.92 |
| 41393B | MB631397 | BOLT, RR SUSP LWR ARM | Cone point,12x75 | 2 | $9.17 |
| 41393C | MB631397 | BOLT, RR SUSP LWR ARM | Cone point,12x75 | 2 | $9.17 |
| 41395 | MF430123 | NUT, ENG RR MOUNTING | 12 | 2 | $0.92 |
| 41397 | MF450407 | WASHER | Spring,12 | 4 | $0.82 |
| 41397 | MF450497 | WASHER, RR SUSP UPR ARM | Spring,12 | 4 | $1.92 |
| 41399B | MR210670 | BUSHING, RR SUSP LWR ARM | 2 | $36.94 | |
| 41399B | MR267543 | BUSHING, RR SUSP LWR ARM | 2 | $32.83 | |
| 41399C | MB339157 | BUSHING, RR SUSP LWR ARM | 2 | $34.20 | |
| 41422 | MR150550 | SHOCK ABSORBER, RR SUSP | 2 | — | |
| 41422 | MR448429 | SHOCK ABSORBER, RR SUSP | 2 | $108.07 | |
| 41495 | MF430006 | NUT | 10 | 2 | $1.54 |
| 41498 | MR210640 | BOLT, RR SHOCK ABSORBER | 2 | $5.92 | |
| 41499B | MF450406 | WASHER | Spring,10 | 2 | $0.39 |
| 41499C | MT100389 | WASHER, RR SHOCK ABSORBER | Eye,11 | 2 | $3.56 |
| 41499D | MT381079 | WASHER, RR SHOCK ABSORBER | Eye,14 | 2 | $3.11 |
| 41499E | MS450044 | WASHER, ENG RR MOUNTING | Spring,12 | 2 | $1.42 |
| 41623 | MR150496 | ROD, RR SUSP LATERAL | 1 | — | |
| 41822 | MR150551 | STOPPER, RR SUSP LWR ARM BUMP | 2 | $25.99 | |
| 41961 | MR374620 | TUBE, RR SUSP COIL SPRING | 2 | — | |
| 41989B | MF450407 | WASHER | Spring,12 | 1 | $0.82 |
| 41989B | MF450497 | WASHER, RR SUSP UPR ARM | Spring,12 | 1 | $1.92 |
| 41989C | MT144461 | WASHER, RR SWAY BAR | 10.5 | 1 | $2.40 |
| 41990B | MF430123 | NUT, ENG RR MOUNTING | 12 | 1 | $0.92 |
| 41990C | MB631398 | NUT, RR SWAY BAR | Self locking,10 | 1 | $3.11 |
| 41991B | MR151936 | BUSHING, RR SWAY BAR | 1 | $22.57 | |
| 41991C | MR151935 | BUSHING, RR SWAY BAR | 1 | $17.10 | |
| 41992 | MF101319 | BOLT, RR SUSP SPRING | 12x55 | 1 | $2.96 |
