Power steering oil line
This EPC family contains 2 catalog variations for the VIN-confirmed Pajero Mini H56A catalog.

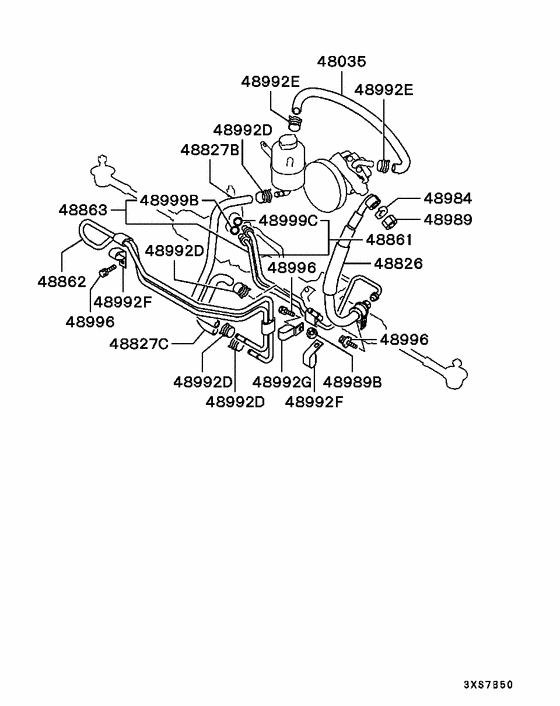

Diagram 7939180
Parts diagram group Power steering oil line in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (14 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 48035 | MR150211 | HOSE, P/S OIL PUMP SUCTION | 1 | $37.00 | |
| 48826 | MR150208 | HOSE, P/S OIL PRESSURE | 1 | $162.80 | |
| 48861 | MR150210 | TUBE, P/S OIL RETURN | 1 | $25.16 | |
| 48863 | MR150209 | TUBE, P/S OIL PRESSURE | 1 | $25.16 | |
| 48984 | MF450407 | WASHER | Spring,12 | 1 | $0.82 |
| 48989 | MF430727 | NUT, CYLINDER HEAD | Jam,12 | 1 | $1.13 |
| 48989B | MS440503 | NUT | Washer assembled,8 | 1 | $0.64 |
| 48992D | MS660166 | CLIP, ROCKER COVER | D=15.5 | 2 | $1.66 |
| 48992E | MS660168 | CLIP, ROCKER COVER | D=17.8 | 2 | $1.13 |
| 48992F | MR151890 | CLIP, P/S OIL LINE | 1 | $9.92 | |
| 48996 | MF240050 | BOLT, ROCKER COVER | Washer assembled,8x14 | 1 | $1.09 |
| 48999B | MB192717 | O-RING, P/S OIL PUMP | 6 | 1 | $1.35 |
| 48999C | MB166042 | O-RING, STEERING GEAR INR | 1 | — | |
| 48999C | MB950259 | O-RING, STEERING GEAR INR | 1 | $1.77 |

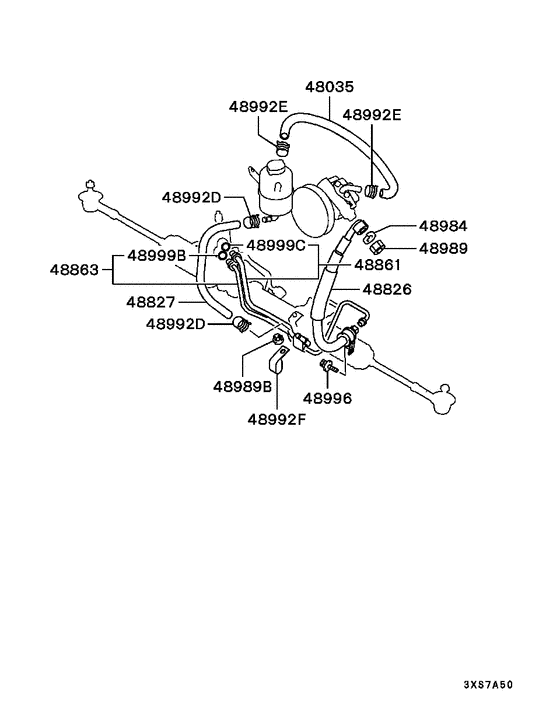

Diagram 7939181
Parts diagram group Power steering oil line in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (15 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 48035 | MR150211 | HOSE, P/S OIL PUMP SUCTION | 1 | $37.00 | |
| 48826 | MR150208 | HOSE, P/S OIL PRESSURE | 1 | $162.80 | |
| 48827 | MR150212 | HOSE, P/S OIL RETURN | 1 | $27.38 | |
| 48861 | MR150210 | TUBE, P/S OIL RETURN | 1 | $25.16 | |
| 48863 | MR150209 | TUBE, P/S OIL PRESSURE | 1 | $25.16 | |
| 48984 | MF450407 | WASHER | Spring,12 | 1 | $0.82 |
| 48989 | MF430727 | NUT, CYLINDER HEAD | Jam,12 | 1 | $1.13 |
| 48989B | MS440503 | NUT | Washer assembled,8 | 1 | $0.64 |
| 48992D | MS660166 | CLIP, ROCKER COVER | D=15.5 | 2 | $1.66 |
| 48992E | MS660168 | CLIP, ROCKER COVER | D=17.8 | 2 | $1.13 |
| 48992F | MR151890 | CLIP, P/S OIL LINE | 1 | $9.92 | |
| 48996 | MF240050 | BOLT, ROCKER COVER | Washer assembled,8x14 | 1 | $1.09 |
| 48999B | MB192717 | O-RING, P/S OIL PUMP | 6 | 1 | $1.35 |
| 48999C | MB166042 | O-RING, STEERING GEAR INR | 1 | — | |
| 48999C | MB950259 | O-RING, STEERING GEAR INR | 1 | $1.77 |
