Power brake booster
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

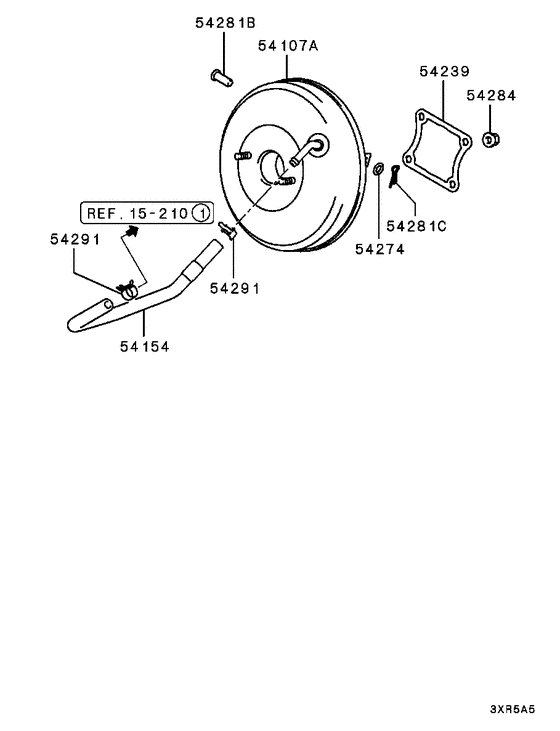

Diagram 7939156
Parts diagram group Power brake booster in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (8 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 54107A | MR128871 | BOOSTER ASSY, BRAKE | 8; | 1 | $665.18 |
| 54154 | MR129485 | HOSE, BRAKE BOOSTER VACUUM | Rubber | 1 | $31.82 |
| 54239 | MB587409 | SEAL, BRAKE BOOSTER BODY | 1 | $5.18 | |
| 54274 | MB151106 | WASHER, CLUTCH M/CYL | 10 | 1 | $2.74 |
| 54281B | MF473492 | PIN, CLUTCH M/CYL | Clevis,10x23 | 1 | $1.25 |
| 54281C | MB858800 | PIN, BRAKE BOOSTER | Snap,10 | 1 | $2.05 |
| 54284 | MS440503 | NUT | Washer assembled,8 | 4 | $0.64 |
| 54291 | MB058859 | CLIP, BRAKE BOOSTER | 15 | 2 | $3.83 |
