Parking brake control
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

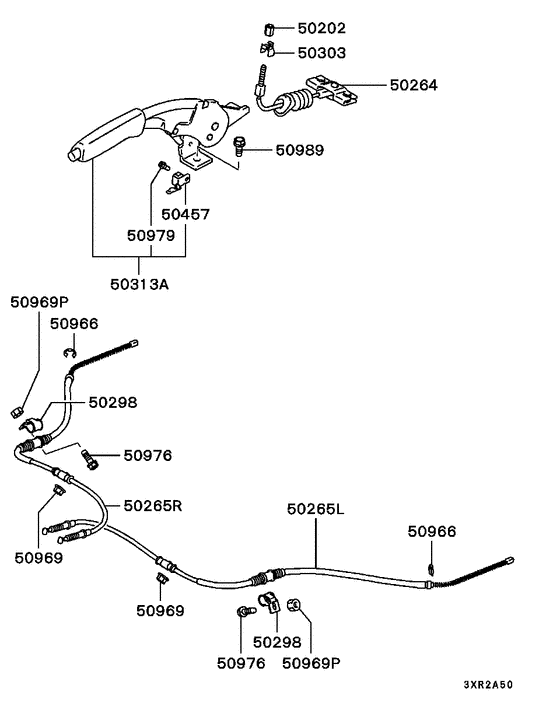

Diagram 7939152
Parts diagram group Parking brake control in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (15 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 50202 | MB857445 | ADJUSTER, PARKING BRAKE CABLE | 1 | $1.48 | |
| 50264 | MR128810 | CABLE, PARKING BRAKE, FR | 1 | $34.20 | |
| 50265L | MR128811 | CABLE, PARKING BRAKE, RR LH | 1 | $92.50 | |
| 50265R | MR128812 | CABLE, PARKING BRAKE, RR RH | 1 | $92.50 | |
| 50298 | MB256379 | CLAMP, PARKING BRAKE CABLE | 2 | $5.61 | |
| 50303 | MB857444 | HOLDER, PARKING BRAKE CABLE ADJUSTER | 1 | $3.11 | |
| 50313A | MR738879 | LEVER ASSY, PARKING BRAKE | 1 | $71.04 | |
| 50457 | MR128825 | SWITCH, PARKING BRAKE | 1 | $5.77 | |
| 50966 | MF522406 | SNAP RING, ENG MECHANICAL GOVERNOR | 8 | 2 | $0.60 |
| 50969 | MS440503 | NUT | Washer assembled,8 | 2 | $0.64 |
| 50969P | MF430007 | NUT | 12 | 2 | $1.21 |
| 50976 | MS240086 | BOLT, ENG FR MOUNTING | Washer assembled,8x25 | 2 | $1.37 |
| 50976 | MS240087 | BOLT, EXHAUST PIPE | Washer assembled,8x30 | 2 | $2.37 |
| 50979 | MF350047 | SCREW, FLYWHEEL HOUSING | Washer assembled,5x10 | 1 | $2.05 |
| 50989 | MS240085 | BOLT, ENG OIL LINE | Washer assembled,8x20 | 2 | $0.99 |
